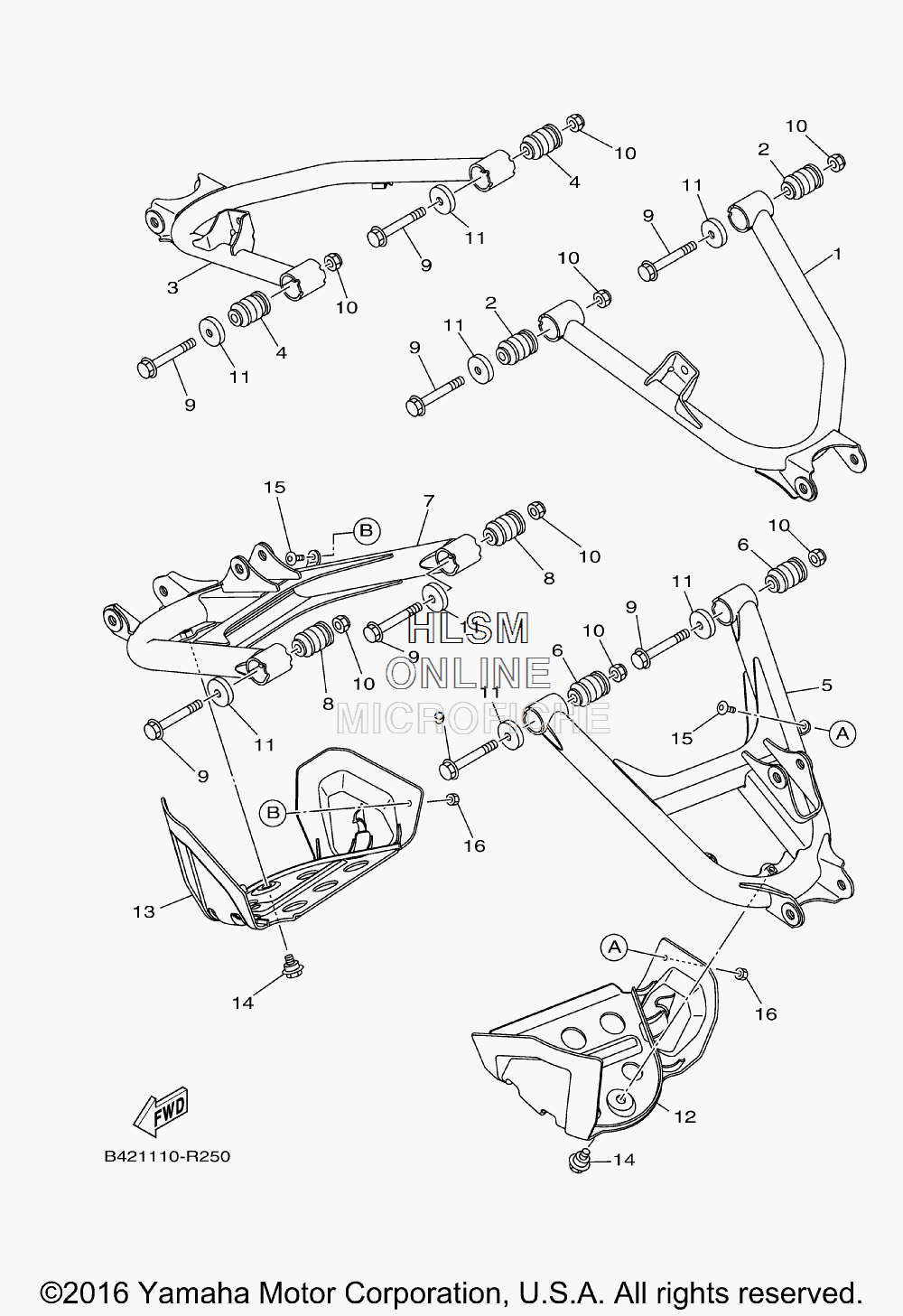

SUSPENSION - REAR ARM для Yamaha VIKING EPS (PURPLISH BLUE) - 2017 года выпуска`
-
№АртикулНазвание
-
11XD-F2171-00-00 ARM, REAR 1ARM, REAR 1
-
21HP-F3526-00-00 BUSHBUSH
-
31XD-F2172-00-00 ARM, REAR 2ARM, REAR 2
-
41HP-F3526-00-00 BUSHBUSH
-
51XD-F217M-10-00 ARM 1ARM 1
-
61HP-F3526-00-00 BUSHBUSH
-
71XD-F217N-10-00 ARM 2ARM 2
-
81HP-F3526-00-00 BUSHBUSH
-
990105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
1090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
115KM-22149-10-00 WASHERWASHER
-
121XD-F2128-01-00 COVER, THRUST 1COVER, THRUST 1
-
131XD-F2129-01-00 COVER, THRUST 2COVER, THRUST 2
-
1490109-06220-00 BOLTBOLT
-
1590111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1695702-06300-00 NUT, NYLONNUT, NYLON
