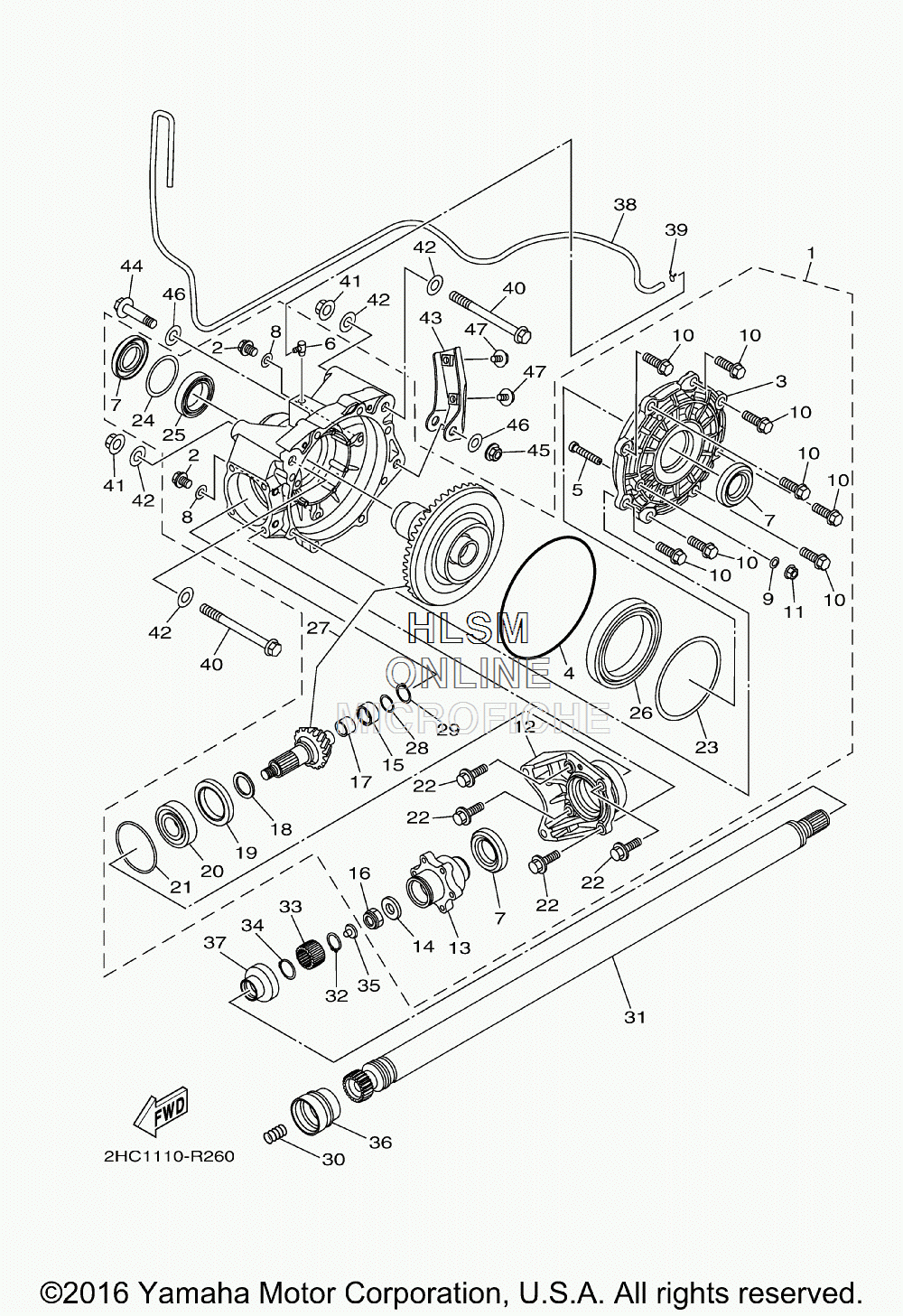

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha YXZ1000 EPS SPECIAL EDITION [YXZ10YPSGY] - 2016 года выпуска`
-
№АртикулНазвание
-
12HC-G6101-03-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
21XD-E2228-00-00 ...BOLT...BOLT
-
32HC-G6152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
42HC-G613A-00-00 ...O-RING...O-RING
-
52HC-G6156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
61CT-E5371-00-00 ...BREATHER...BREATHER
-
71XD-E511B-00-00 ...OIL SEAL...OIL SEAL
-
81CT-E1195-00-00 ...GASKET...GASKET
-
91CT-G6819-00-00 ...GASKET...GASKET
-
102HC-E2157-00-00 ...BOLT...BOLT
-
111CT-E3275-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
122HC-G2134-00-00 ...COVER...COVER
-
132HC-G6126-00-00 ...COUPLING...COUPLING
-
142HC-G5677-00-00 ...WASHER...WASHER
-
151XD-E1428-00-00 ...BEARING 1...BEARING 1
-
162HC-G7579-00-00 ...NUT...NUT
-
171XD-G5319-00-00 ...CLIP...CLIP
-
181XD-G7531-00-00 ...WHEEL, SPROCKET 1...WHEEL, SPROCKET 1
-
192HC-G4583-00-00 ...NUT...NUT
-
2093306-30574-00 ...BEARING...BEARING
-
211XD-E1614-00-00 ...OIL RING, PISTON...OIL RING, PISTON
-
221XD-G2478-00-00 ...BOLT, LOCK PLATE...BOLT, LOCK PLATE
-
232HC-G5567-00-00 ...SHIM...SHIM
-
241XD-G5577-00-00 ...SHIM...SHIM
-
251XD-E142B-00-00 ...BEARING 4...BEARING 4
-
262HC-E1429-00-00 ...BEARING 2...BEARING 2
-
272HC-G61A0-00-00 ...RING GEAR SET...RING GEAR SET
-
282HC-F2149-00-00 ...WASHER...WASHER
-
292HC-F5841-00-00 ...RING,RETAINER...RING,RETAINER
-
3090501-20361-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
312HC-46172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3299009-22400-00 CIRCLIPCIRCLIP
-
332HC-46126-00-00 COUPLINGCOUPLING
-
3493410-26067-00 CIRCLIP S-TYPECIRCLIP S-TYPE
-
355KM-46559-00-00 DAMPERDAMPER
-
362HC-46137-00-00 SEAL 2SEAL 2
-
372HC-46136-00-00 SEAL 1SEAL 1
-
3890445-074F6-00 HOSE (L1300)HOSE (L1300)
-
3990467-07029-00 CLIP SCISSORCLIP SCISSOR
-
4095812-12130-00 BOLT, FLANGEBOLT, FLANGE
-
4190185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4292902-12200-00 WASHERWASHER
-
432HC-F1981-01-00 BRKT., RR. AXLEBRKT., RR. AXLE
-
4490105-12082-00 BOLT, FLANGEBOLT, FLANGE
-
4590185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4692902-12200-00 WASHERWASHER
-
4795812-10016-00 BOLT, FLANGEBOLT, FLANGE
