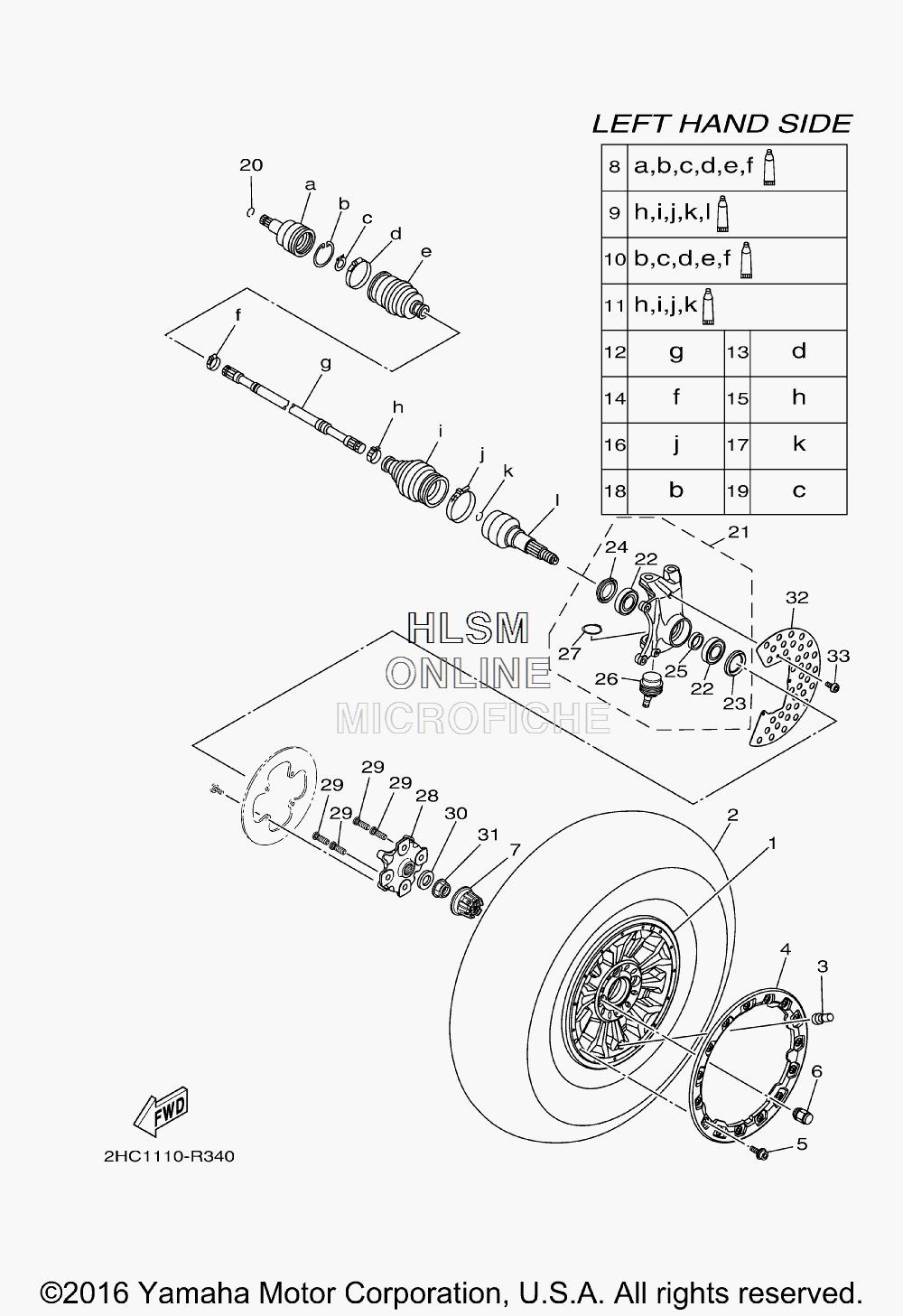

WHEEL - FRONT W/ AXLE ASSY для Yamaha YXZ1000 EPS SPECIAL EDITION [YXZ10YPSGS] - 2016 года выпуска`
-
№АртикулНазвание
-
12HC-F5168-50-00 CAST WHEEL, FRONTCAST WHEEL, FRONT
-
294109-14809-00 TIRE (27X9.00R14 MU09 6PR TL) (MAXXIS)TIRE (27X9.00R14 MU09 6PR TL) (MAXXIS)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
42HC-F4658-10-00 NUT, CAPNUT, CAP
-
590105-068C3-00 BOLT, FLANGEBOLT, FLANGE
-
690176-12800-00 NUT, CROWNNUT, CROWN
-
72HC-F512A-00-00 CAP, WHEELCAP, WHEEL
-
82HC-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
92HC-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
102HC-2510H-00-00 BOOT SET(DOUBLE OFFSET JOINT)BOOT SET(DOUBLE OFFSET JOINT)
-
112HC-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
122HC-2518E-00-00 SHAFTSHAFT
-
132HC-2511H-00-00 BOOT BAND(DOUBLE OFFSET JOINT)BOOT BAND(DOUBLE OFFSET JOINT)
-
142HC-2511G-00-00 BOOT BAND(DOUBLE OFFSET JOINT)BOOT BAND(DOUBLE OFFSET JOINT)
-
152HC-2510U-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
162HC-2512G-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
172HC-2512H-00-00 CIRCLIPCIRCLIP
-
183B4-25182-00-00 CIRCLIPCIRCLIP
-
193B4-2512J-00-00 SNAP RINGSNAP RING
-
2093450-22119-00 CIRCLIPCIRCLIP
-
212HC-F3501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2293306-206Y2-00 ...BEARING...BEARING
-
2393106-42800-00 ...OIL SEAL...OIL SEAL
-
2493106-38800-00 ...OIL SEAL...OIL SEAL
-
2590387-30008-00 ...COLLAR...COLLAR
-
262HC-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2793410-42096-00 ...CIRCLIP...CIRCLIP
-
282HC-F5111-00-00 HUB, FRONTHUB, FRONT
-
2990114-12005-00 BOLT, SERRATIONBOLT, SERRATION
-
3090201-25023-00 WASHER, PLATEWASHER, PLATE
-
3190179-24006-00 NUTNUT
-
322HC-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
3392012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
