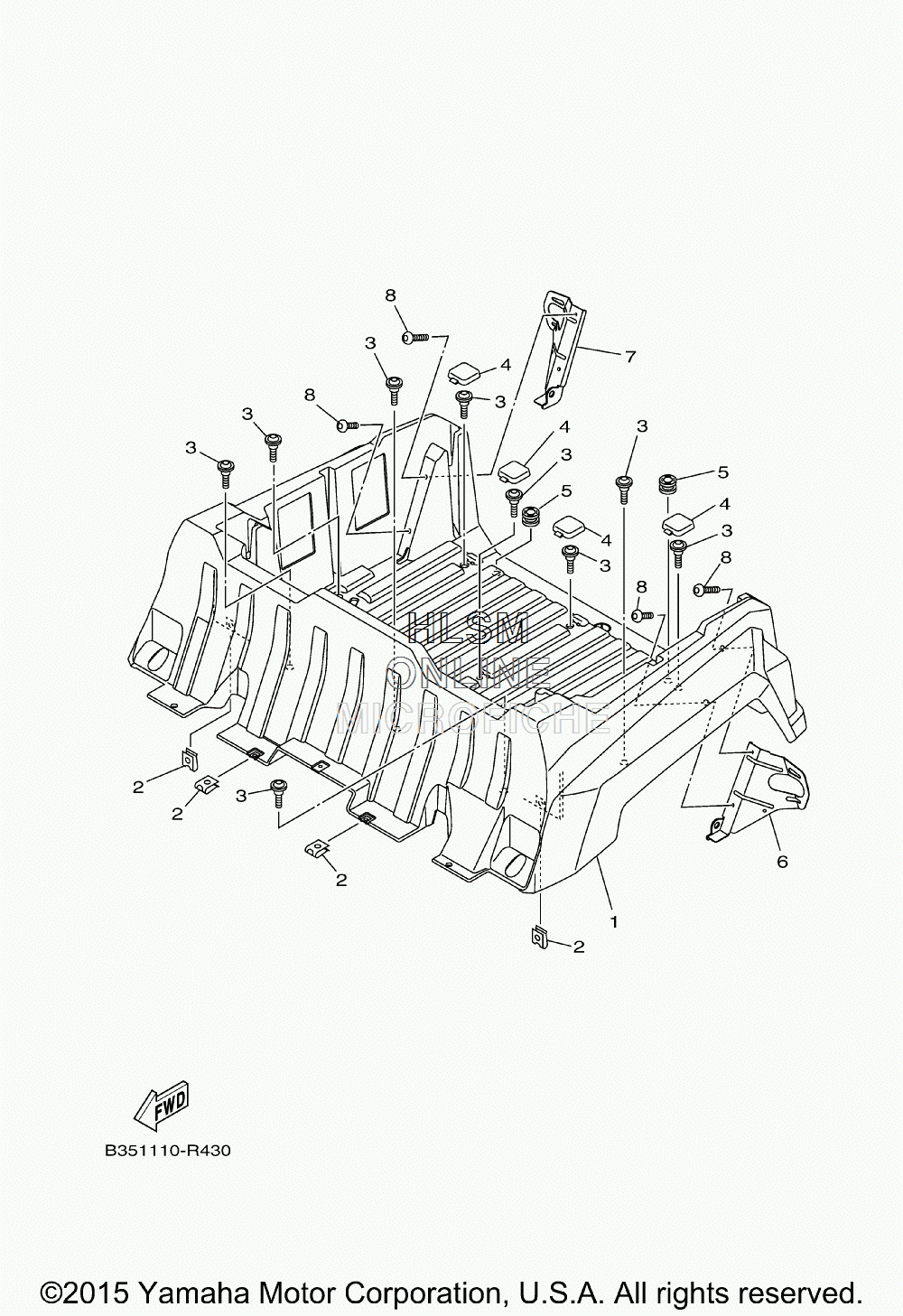

CARRIER для Yamaha WOLVERINE [YXE70WDBGG] - 2016 года выпуска
-
№АртикулНазвание
-
12MB-F1171-01-00 BOXBOX
-
290183-060A6-00 NUT, SPRINGNUT, SPRING
-
390109-068A5-00 BOLTBOLT
-
42MB-F143A-00-00 CAPCAP
-
590480-13029-00 GROMMETGROMMET
-
62MB-F475U-00-00 BRACKET, TAIL COVERBRACKET, TAIL COVER
-
72MB-F475V-00-00 BRACKET, TAIL COVER 2BRACKET, TAIL COVER 2
-
890111-06123-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
