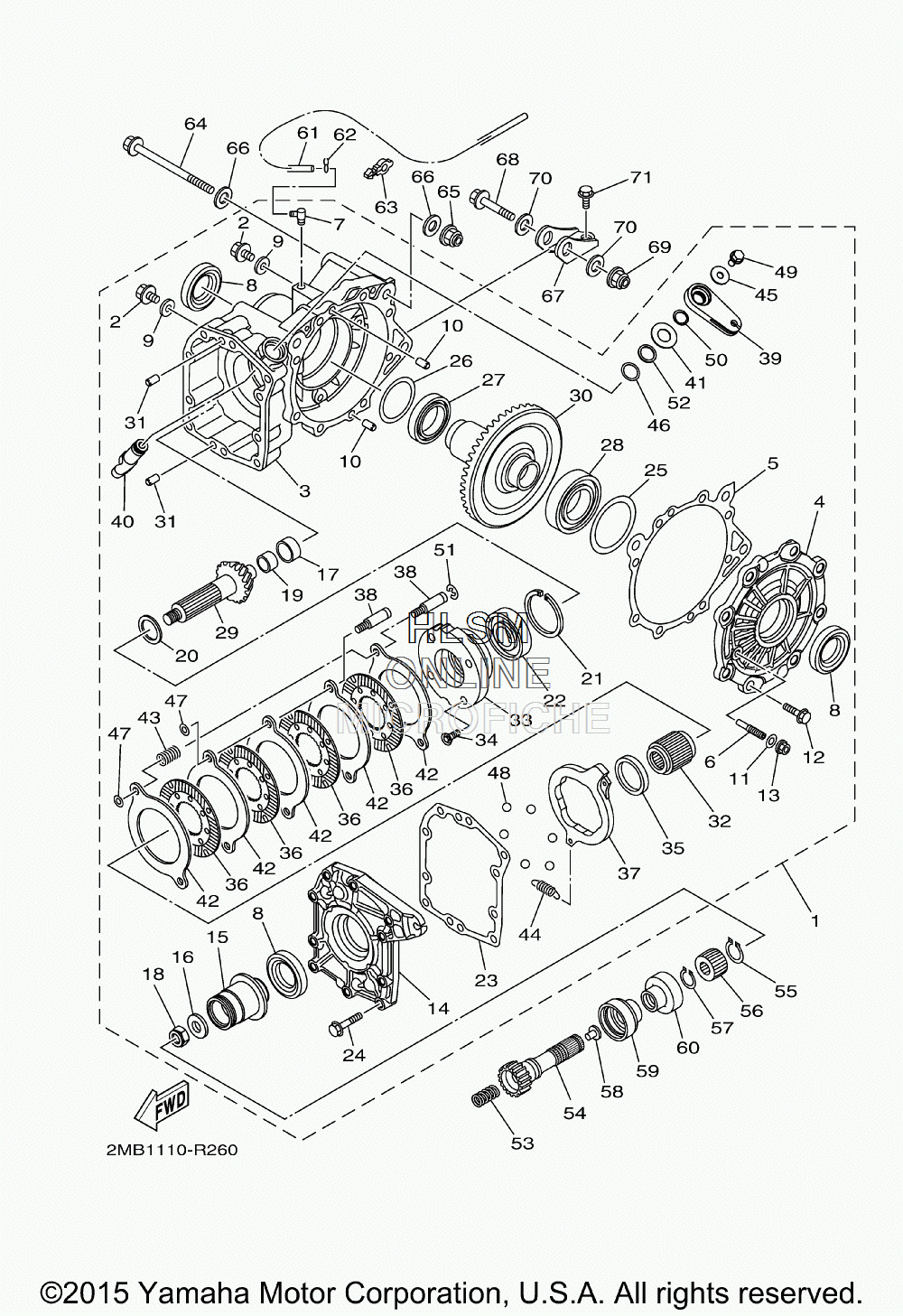

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha WOLVERINE R-SPEC HUNTER [YXE70WDHGH] - 2016 года выпуска`
-
№АртикулНазвание
-
12MB-G6101-01-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
21XD-E2228-00-00 ...BOLT...BOLT
-
32MB-G6151-00-00 ...HOUSING, DRIVE SHAFT...HOUSING, DRIVE SHAFT
-
41XD-G6152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
51XD-G631A-00-00 ...GSKT., CASE...GSKT., CASE
-
61CT-G6156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
71CT-E5371-00-00 ...BREATHER...BREATHER
-
81XD-E511B-00-00 ...OIL SEAL...OIL SEAL
-
91CT-E1195-00-00 ...GASKET...GASKET
-
101CT-E3362-00-00 ...PIN, DOWEL 1...PIN, DOWEL 1
-
111CT-G6819-00-00 ...GASKET...GASKET
-
121XD-E2157-10-00 ...BOLT...BOLT
-
131CT-E3275-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
142MB-G2134-00-00 ...COVER...COVER
-
152MB-F1753-00-00 ...BOSS, CONNECTOR...BOSS, CONNECTOR
-
161CT-E1557-00-00 ...WASHER 1...WASHER 1
-
171XD-E1428-00-00 ...BEARING 1...BEARING 1
-
181CT-E6377-00-00 ...NUT, LOCK...NUT, LOCK
-
191XD-G5319-00-00 ...CLIP...CLIP
-
201XD-G7531-00-00 ...WHEEL, SPROCKET 1...WHEEL, SPROCKET 1
-
211XD-E1486-00-00 ...CLIP...CLIP
-
2293306-30574-00 ...BEARING...BEARING
-
232MB-G631E-00-00 ...GASKET, COVER...GASKET, COVER
-
242MB-E2157-00-00 ...BOLT...BOLT
-
251XD-G5567-00-00 ...SHIM...SHIM
-
261XD-G5577-00-00 ...SHIM...SHIM
-
271XD-E7051-00-00 ...BEARING...BEARING
-
281XD-E1429-00-00 ...BEARING 2...BEARING 2
-
292MB-G6121-00-00 ...GEAR, DRIVE PINION...GEAR, DRIVE PINION
-
302MB-G6110-00-00 ...RING GEAR COMP....RING GEAR COMP.
-
311CT-E3362-00-00 ...PIN, DOWEL 1...PIN, DOWEL 1
-
322MB-G6126-00-00 ...COUPLING...COUPLING
-
332MB-F3872-00-00 ...HOLDER, BEARING...HOLDER, BEARING
-
342MB-E1982-00-00 ...BOLT, HOLDER...BOLT, HOLDER
-
352MB-F1428-00-00 ...BEARING...BEARING
-
362MB-F5345-00-00 ...INSERT, PLATE...INSERT, PLATE
-
372MB-F5689-00-00 ...PLATE, GUIDE...PLATE, GUIDE
-
382MB-G2478-00-00 ...BOLT, LOCK PLATE...BOLT, LOCK PLATE
-
392MB-F5355-00-00 ...LEVER, CAMSHAFT...LEVER, CAMSHAFT
-
402MB-F5351-00-00 ...CAMSHAFT...CAMSHAFT
-
411CT-E2289-10-00 ...WASHER...WASHER
-
421CT-F539F-00-00 ...PLATE 1...PLATE 1
-
431CT-G6277-00-00 ...SPRING, RETURN...SPRING, RETURN
-
442MB-F476L-00-00 ...SPRING...SPRING
-
451CT-G1298-00-00 ...WASHER 2...WASHER 2
-
461CT-E4005-10-00 ...RING, SEAL...RING, SEAL
-
471CT-G1297-00-00 ...WASHER, 1...WASHER, 1
-
481CT-E7051-00-00 ...BALL...BALL
-
491CT-E22A1-00-00 ...BOLT 2...BOLT 2
-
501CT-E1486-00-00 ...CLIP...CLIP
-
511CT-G5319-00-00 ...CLIP...CLIP
-
521CT-E3147-00-00 ...SHIM...SHIM
-
5390501-20361-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
542MB-G6172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
5599009-19400-00 CIRCLIP S-TYPECIRCLIP S-TYPE
-
565KM-46126-00-00 COUPLINGCOUPLING
-
5793410-22039-00 CIRCLIP S-TYPECIRCLIP S-TYPE
-
585KM-46559-00-00 DAMPERDAMPER
-
595KM-46137-00-00 SEAL 2SEAL 2
-
605KM-46136-00-00 SEAL 1SEAL 1
-
6190445-072J4-00 HOSE (L1120)HOSE (L1120)
-
6290467-07029-00 CLIPCLIP
-
6390464-10833-00 CLAMPCLAMP
-
6495812-12130-00 BOLT, FLANGEBOLT, FLANGE
-
6590185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6692902-12200-00 WASHERWASHER
-
671XD-F1981-00-00 BRKT., RR. AXLEBRKT., RR. AXLE
-
6890105-12082-00 BOLT, FLANGEBOLT, FLANGE
-
6990185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
7092902-12200-00 WASHERWASHER
-
7195812-08016-00 BOLT, FLANGEBOLT, FLANGE
