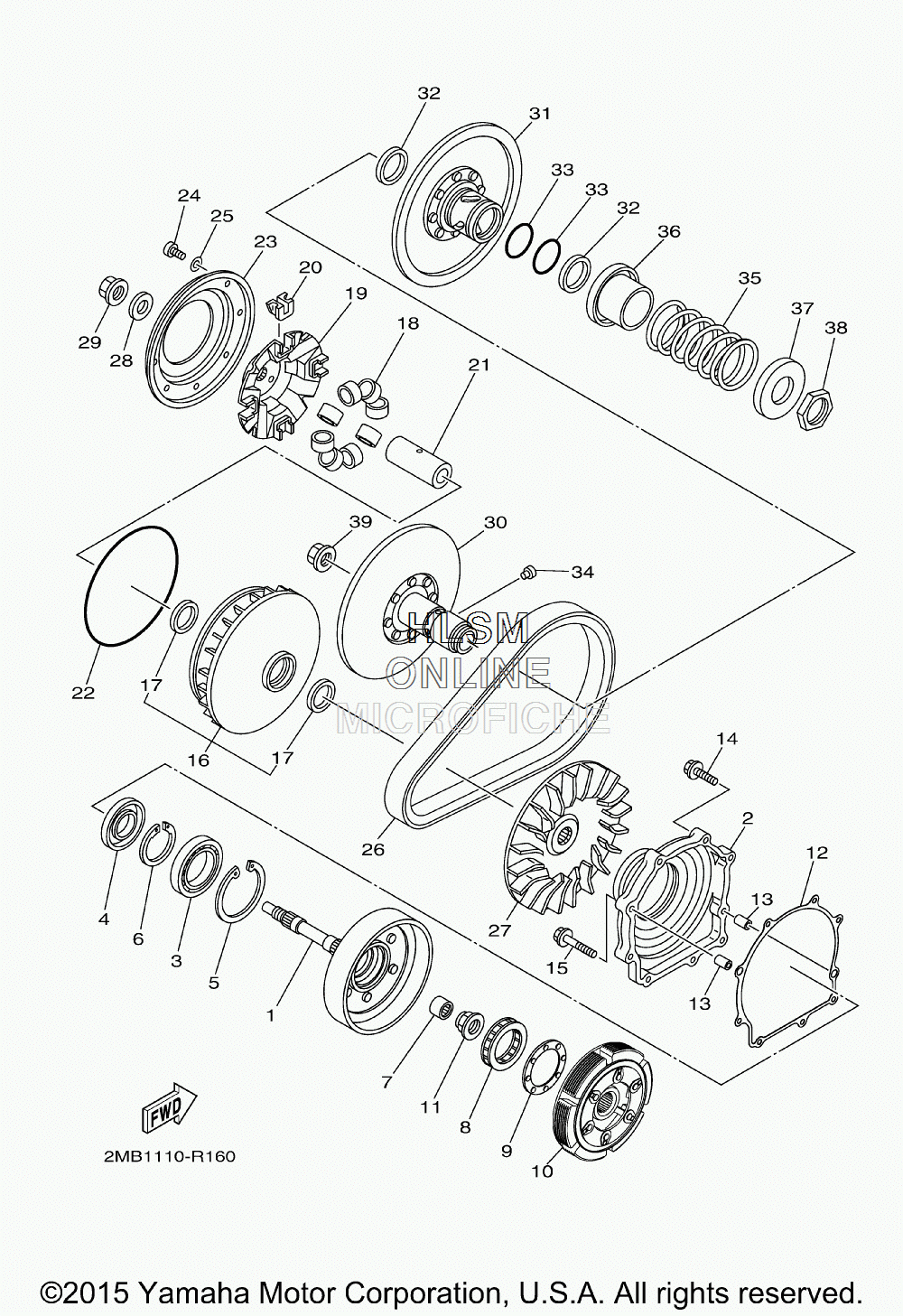

CLUTCH для Yamaha WOLVERINE R-SPEC EPS [YXE70WPXGL] - 2016 года выпуска`
-
№АртикулНазвание
-
12PG-16611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
23B4-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
393316-01003-00 BEARINGBEARING
-
493102-35004-00 OIL SEALOIL SEAL
-
599009-80500-00 CIRCLIPCIRCLIP
-
693410-46079-00 CIRCLIPCIRCLIP
-
793315-21813-00 BEARING CYL.#15BEARING CYL.#15
-
84SH-16664-00-00 BEARING, ONE WAYBEARING, ONE WAY
-
91HP-16717-00-00 RING, SEALRING, SEAL
-
102PG-16620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
1190179-22021-00 NUTNUT
-
122MB-E5463-00-00 GASKET, 2GASKET, 2
-
132MB-E5181-00-00 PIN, DOWELPIN, DOWEL
-
142MB-E5481-50-00 BOLT 1BOLT 1
-
152MB-E5481-30-00 BOLT 1BOLT 1
-
161XD-17606-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
1793101-35001-00 ...OIL SEAL...OIL SEAL
-
183B4-17632-01-00 WEIGHTWEIGHT
-
193B4-17623-02-00 CAMCAM
-
2016B-17653-00-00 SLIDERSLIDER
-
211XD-17645-00-00 COLLARCOLLAR
-
2293211-59001-00 O-RINGO-RING
-
234WV-17639-10-00 STOPPERSTOPPER
-
2490157-04006-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2590201-047R9-00 WASHER, PLATE (M4 WASHER)WASHER, PLATE (M4 WASHER)
-
262MB-E7641-00-00 V-BELTV-BELT
-
273B4-17611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
282MB-E7648-00-00 WASHERWASHER
-
2990179-16005-00 NUTNUT
-
301XD-17660-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
312PG-17670-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
3293104-41119-00 OIL SEALOIL SEAL
-
3393210-44545-00 O-RINGO-RING
-
344CW-17664-00-00 PIN, GUIDEPIN, GUIDE
-
3590501-650A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
364WV-17684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
374WV-17644-00-00 SEAT,SPRINGSEAT,SPRING
-
3890170-36279-00 NUTNUT
-
3990179-16005-00 NUTNUT
