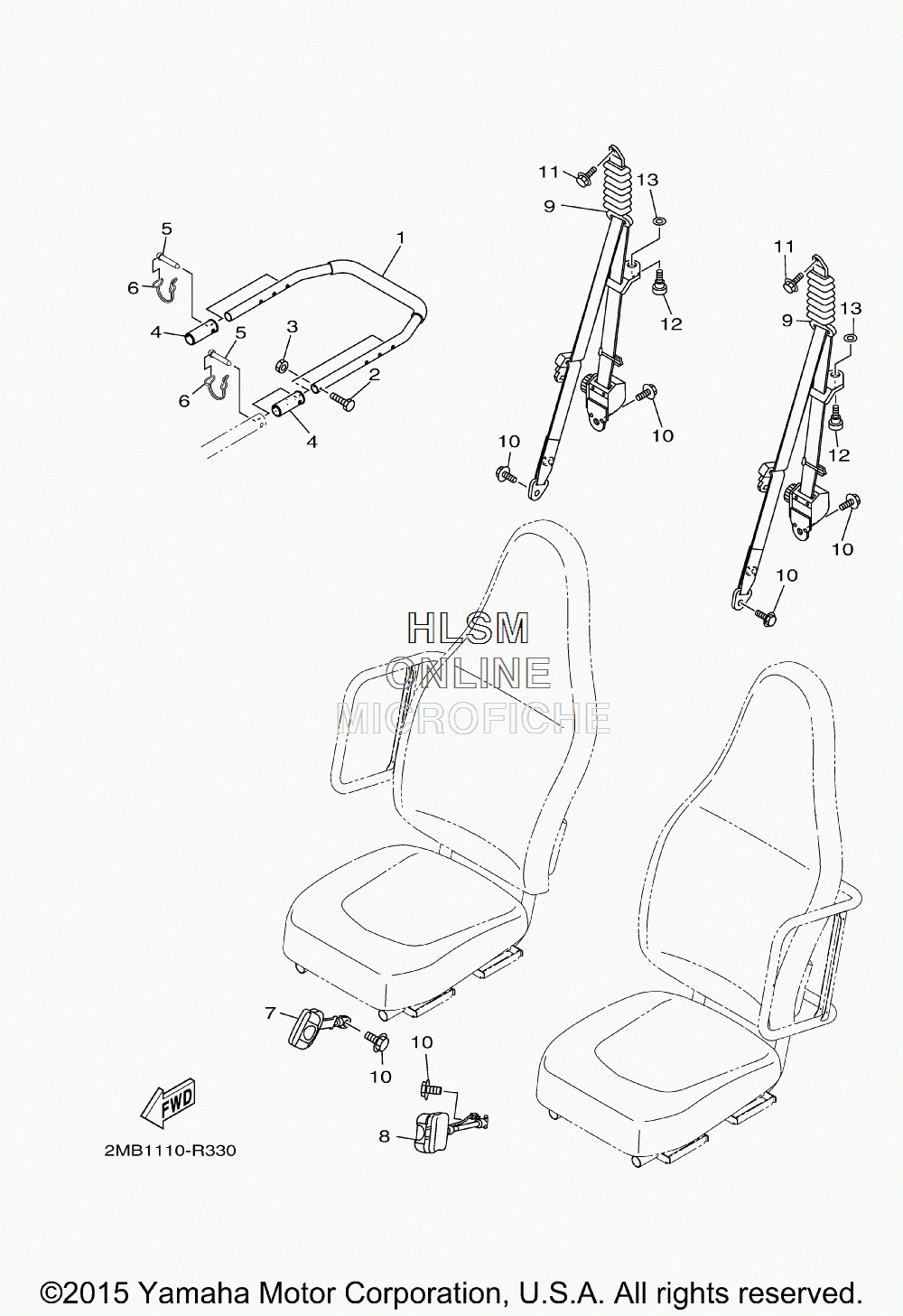

SEAT 2 для Yamaha WOLVERINE R-SPEC EPS [YXE70WPXGG] - 2016 года выпуска`
-
№АртикулНазвание
-
12MB-F470J-00-00 ASSIST GRIP ASSY., 1ASSIST GRIP ASSY., 1
-
290101-06824-00 BOLTBOLT
-
395612-06100-00 NUT, UNUT, U
-
41XD-F467K-00-00 BUSH, CAPBUSH, CAP
-
51XD-F5926-00-00 BOLTBOLT
-
61XD-F311F-00-00 SNAP, PINSNAP, PIN
-
72PG-F470R-00-00 FR. BELT RECEIVER ASSYFR. BELT RECEIVER ASSY
-
82PG-F470R-10-00 FR. BELT RECEIVER ASSYFR. BELT RECEIVER ASSY
-
91XD-F470L-00-00 FR. SEAT BELT ASSY 1FR. SEAT BELT ASSY 1
-
1095812-12020-00 BOLT, FLANGEBOLT, FLANGE
-
1190111-12002-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1216B-F3394-01-00 BOLT, SPECIALBOLT, SPECIAL
-
1390201-11801-00 WASHER, PLATEWASHER, PLATE
