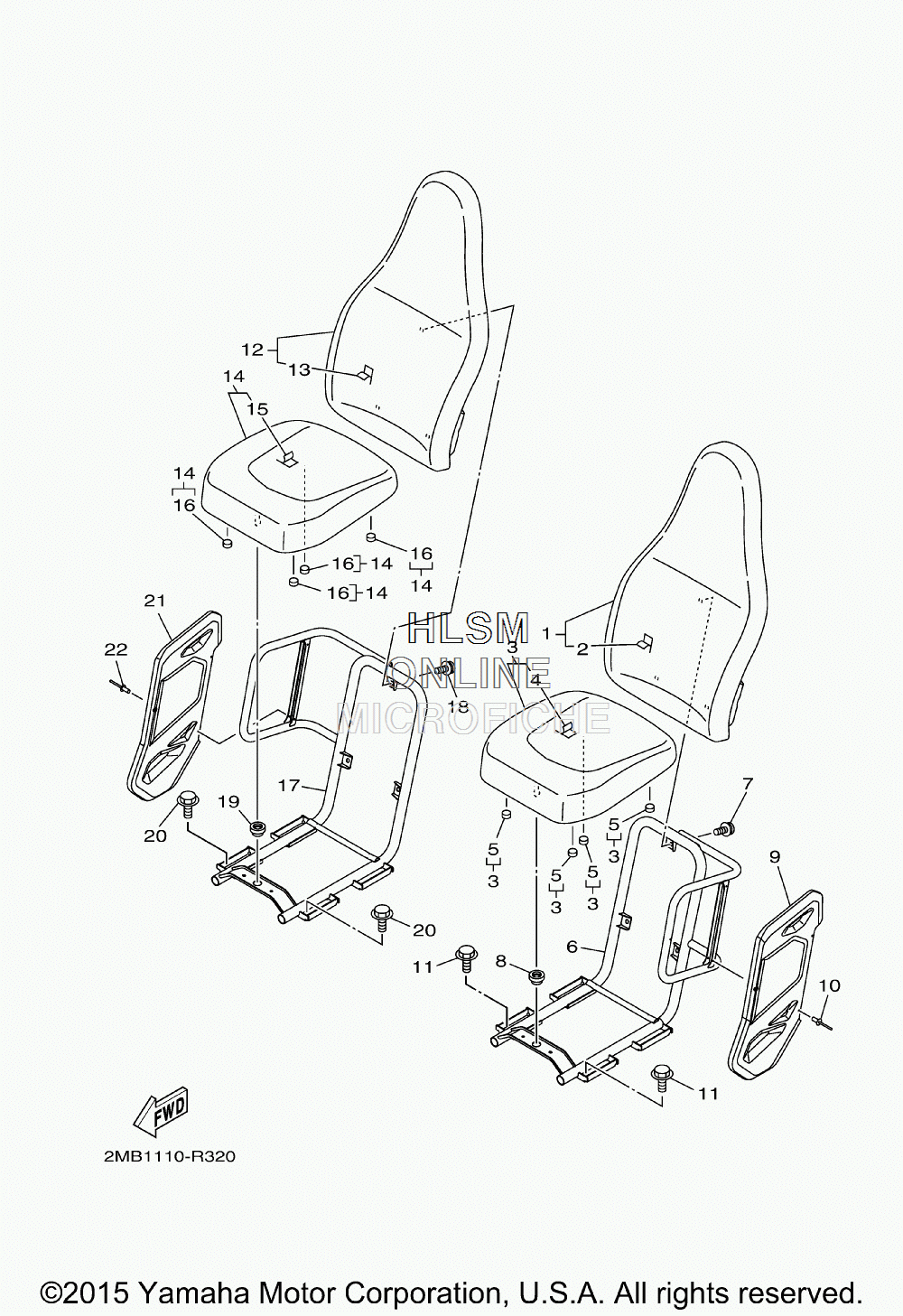

SEAT для Yamaha WOLVERINE R-SPEC EPS [YXE70WPAGW] - 2016 года выпуска`
-
№АртикулНазвание
-
12MB-F4790-00-00 SEAT BACK ASSYSEAT BACK ASSY
-
22MB-F4711-00-00 ...COVER, SINGLE SEAT...COVER, SINGLE SEAT
-
31XD-F4700-00-00 SEAT ASSYSEAT ASSY
-
41XD-F4731-00-00 ...COVER, SEAT...COVER, SEAT
-
51XD-F4723-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
61XD-F473C-00-00 FRAME, SEAT 1FRAME, SEAT 1
-
72PG-F4739-00-00 BOLT, SEAT FITTINGBOLT, SEAT FITTING
-
81XD-F4742-00-00 GROMMETGROMMET
-
91XD-F475X-00-00 COVER,2COVER,2
-
1090267-489U9-00 RIVET, BLINDRIVET, BLIND
-
1195812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
122MB-F4790-00-00 SEAT BACK ASSYSEAT BACK ASSY
-
132MB-F4711-00-00 ...COVER, SINGLE SEAT...COVER, SINGLE SEAT
-
141XD-F4700-00-00 SEAT ASSYSEAT ASSY
-
151XD-F4731-00-00 ...COVER, SEAT...COVER, SEAT
-
161XD-F4723-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
171XD-F473D-00-00 FRAME, SEAT 2FRAME, SEAT 2
-
182PG-F4739-00-00 BOLT, SEAT FITTINGBOLT, SEAT FITTING
-
191XD-F4742-00-00 GROMMETGROMMET
-
2095812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
211XD-F475X-00-00 COVER,2COVER,2
-
2290267-489U9-00 RIVET, BLINDRIVET, BLIND
