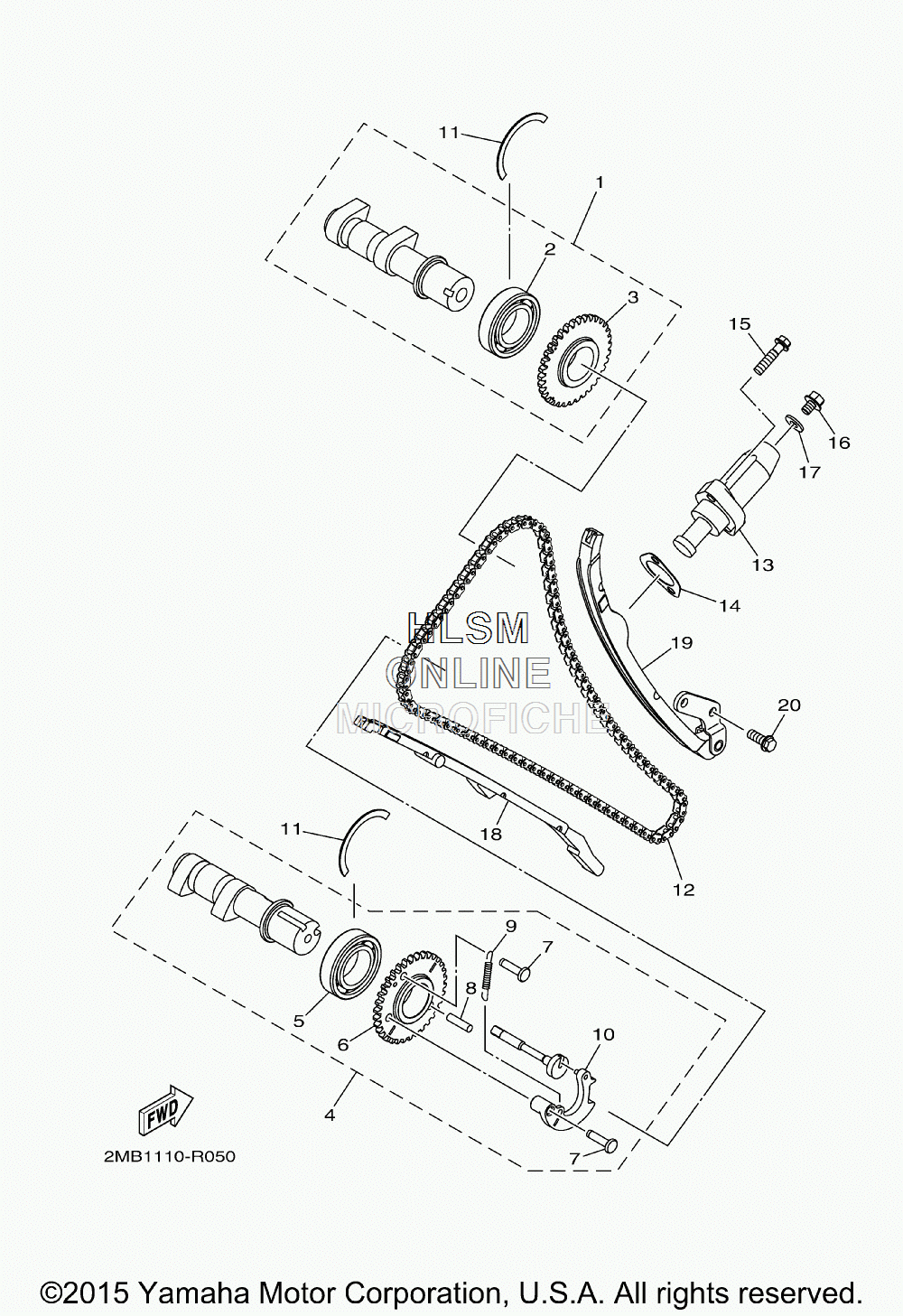

CAMSHAFT W/ CHAIN для Yamaha WOLVERINE HUNTER [YXE70WDBGH] - 2016 года выпуска`
-
№АртикулНазвание
-
12MB-E2170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
22MB-E2179-00-00 ...BEARING, CAMSHAFT 1...BEARING, CAMSHAFT 1
-
32MB-E2176-00-00 ...SPROCKET, CAM CHAIN...SPROCKET, CAM CHAIN
-
42MB-E2180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
52MB-E2179-00-00 ...BEARING, CAMSHAFT 1...BEARING, CAMSHAFT 1
-
62MB-E2177-00-00 ...SPROCKET, CAM CHAIN...SPROCKET, CAM CHAIN
-
72MB-H431W-00-00 ...PIVOT...PIVOT
-
82MB-E2284-00-00 ...PIN, DECOMPRESSION LEVER...PIN, DECOMPRESSION LEVER
-
92MB-E2287-00-00 ...SPRING, DECOMPRESSION...SPRING, DECOMPRESSION
-
102MB-E217A-00-00 ...WEIGHT...WEIGHT
-
112MB-E2842-00-00 CIRCLIPCIRCLIP
-
122MB-E2190-00-00 CHAIN ASSYCHAIN ASSY
-
132MB-E2210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
142MB-E2213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
152MB-E5481-20-00 BOLT 1BOLT 1
-
162MB-E5481-00-00 BOLT 1BOLT 1
-
172MB-E21E2-00-00 GASKETGASKET
-
182MB-E2251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
192MB-E2252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
202MB-E5482-00-00 BOLT 2BOLT 2
