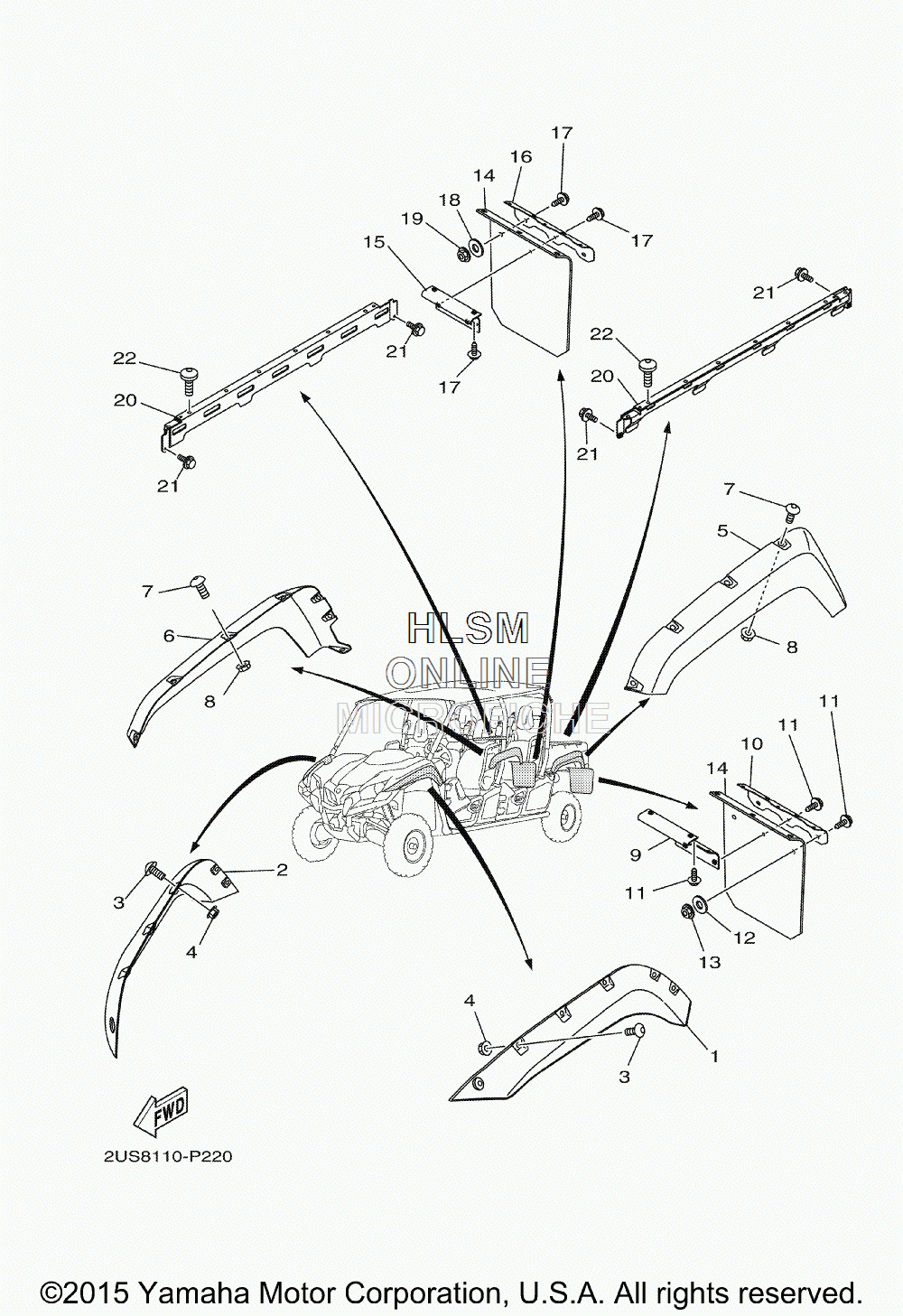

FENDERS - FRONT AND REAR для Yamaha VIKING VI 700 EPS SE - 2015 года выпуска`
-
№АртикулНазвание
-
11XP-F1551-00-00 FENDER, OVERFENDER, OVER
-
21XP-F1555-00-00 FENDER, OVER 2FENDER, OVER 2
-
390110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
51XP-F1559-00-00 FENDER, OVER 3FENDER, OVER 3
-
61XP-F1560-00-00 FENDER, OVER 4FENDER, OVER 4
-
790110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
91XP-F1623-00-00 PLATE, FLAP FITTING 1PLATE, FLAP FITTING 1
-
101XP-F8426-00-00 BRACKET 1BRACKET 1
-
1190119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290201-06081-00 WASHER, PLATEWASHER, PLATE
-
1395602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
141XP-F1691-00-00 FLAPFLAP
-
151XP-F1624-00-00 PLATE, FLAP FITTING 2PLATE, FLAP FITTING 2
-
161XP-F8426-00-00 BRACKET 1BRACKET 1
-
1790119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890201-06081-00 WASHER, PLATEWASHER, PLATE
-
1995602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
201XP-F8232-00-00 BRACKET, ACCESSORY 1BRACKET, ACCESSORY 1
-
2195812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2290111-08073-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
