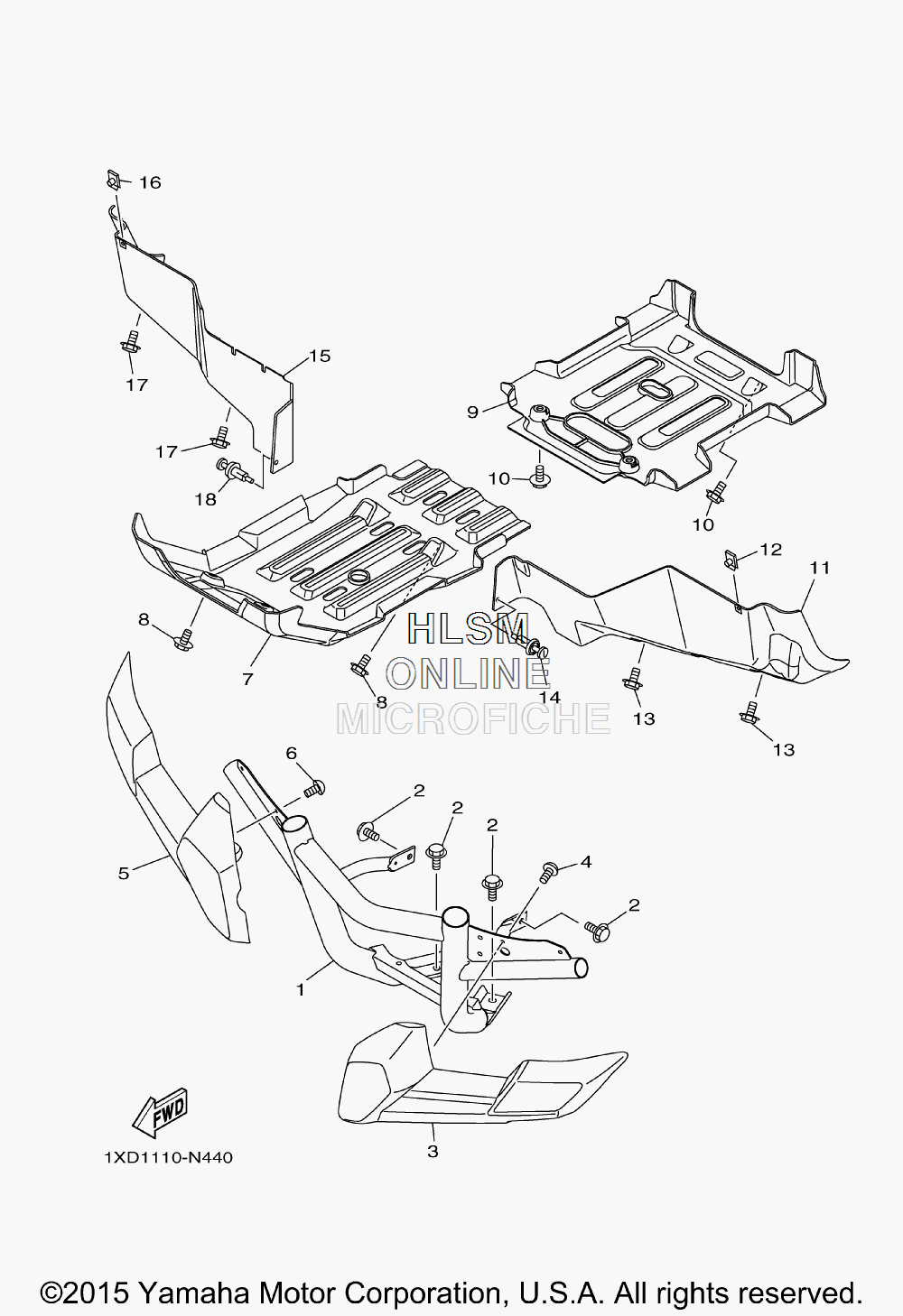

RACK AND BUMPER для Yamaha VIKING VI 700 EPS HUNTER - 2015 года выпуска`
-
№АртикулНазвание
-
11XD-F845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
295812-10016-00 BOLT, FLANGEBOLT, FLANGE
-
31XD-F842M-00-00 COVER 1COVER 1
-
490167-06800-00 SCREW, TAPPINGSCREW, TAPPING
-
51XD-F842N-00-00 COVER 2COVER 2
-
690167-06800-00 SCREW, TAPPINGSCREW, TAPPING
-
71XD-F8385-00-00 COVER, UNDERCOVER, UNDER
-
890109-06202-00 BOLTBOLT
-
91XD-F8395-00-00 COVER, UNDER 2COVER, UNDER 2
-
1090109-06202-00 BOLTBOLT
-
111XD-F2361-00-00 GUARD 1GUARD 1
-
1290183-060A6-00 NUT, SPRINGNUT, SPRING
-
1390109-06202-00 BOLTBOLT
-
1490269-06800-00 RIVETRIVET
-
151XD-F2362-00-00 GUARD 2GUARD 2
-
1690183-060A6-00 NUT, SPRINGNUT, SPRING
-
1790109-06202-00 BOLTBOLT
-
1890269-06800-00 RIVETRIVET
