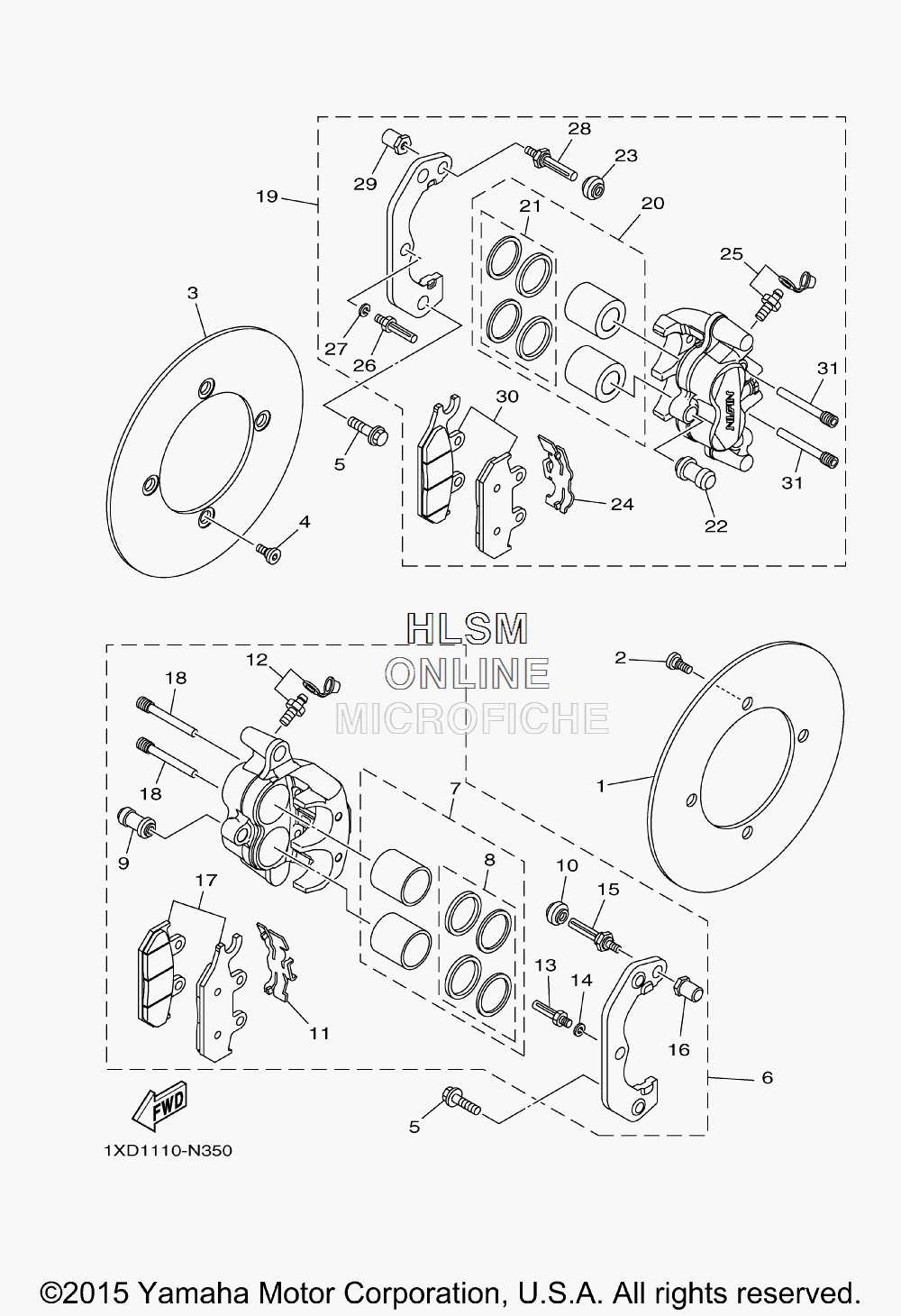

BRAKE - FRONT CALIPER для Yamaha VIKING 700 PURPLISH - 2014 года выпуска`
-
№АртикулНазвание
-
11XD-F582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08082-00 BOLTBOLT
-
31XD-F582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
490109-08082-00 BOLTBOLT
-
590105-10265-00 BOLT, FLANGEBOLT, FLANGE
-
61XD-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
71XD-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
81XD-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
91UY-25937-51-00 ...BOOT 2...BOOT 2
-
103JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
111XD-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
121UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
131UY-25926-51-00 ...BOLT...BOLT
-
141UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
153JD-25926-00-00 ...BOLT...BOLT
-
163JD-25961-00-00 ...NUT...NUT
-
171XD-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
183TB-25933-00-00 ...WASHER, PAD PIN...WASHER, PAD PIN
-
191XD-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
201XD-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
211XD-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
221UY-25937-51-00 ...BOOT 2...BOOT 2
-
233JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
241XD-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
251UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
261UY-25926-51-00 ...BOLT...BOLT
-
271UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
283JD-25926-00-00 ...BOLT...BOLT
-
293JD-25961-00-00 ...NUT...NUT
-
301XD-25805-10-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
313TB-25933-00-00 ...WASHER, PAD PIN...WASHER, PAD PIN
