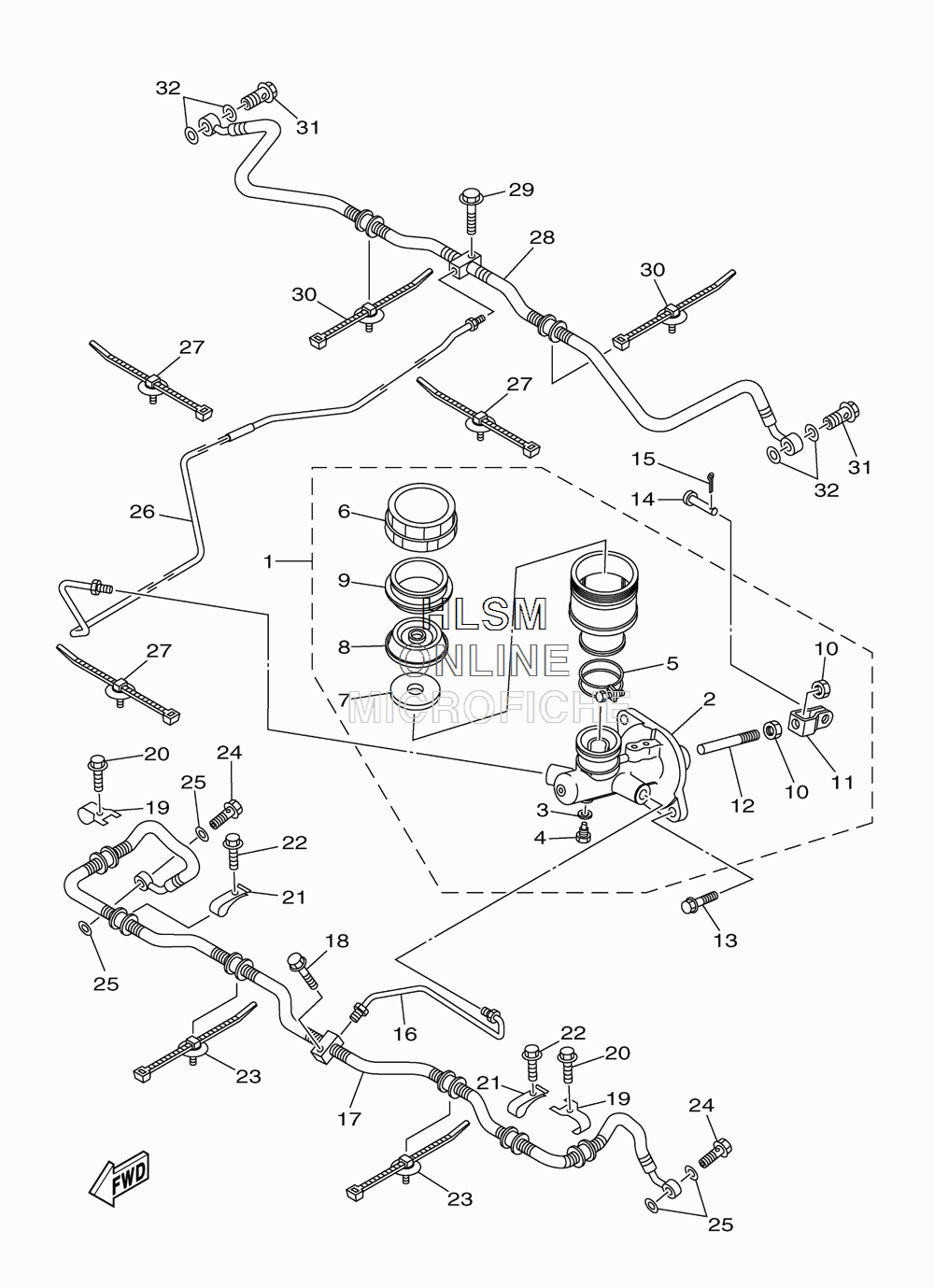

BRAKE - REAR MASTER CYLINDER для Yamaha RHINO SPORT EDITION - 2013 года выпуска`
-
№АртикулНазвание
-
15B4-2583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25UG-W0042-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35UG-25878-00-00 ...WASHER, OIL BOLT...WASHER, OIL BOLT
-
45UG-25877-00-00 ...BOLT, OIL 1...BOLT, OIL 1
-
55UG-25719-00-00 ...BAND...BAND
-
65UG-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
75UG-25853-00-00 ...FLOAT, RESERVOIR...FLOAT, RESERVOIR
-
85UG-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
95UG-25855-00-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
104SS-27218-00-00 ...NUT...NUT
-
112YK-27222-00-00 ...JOINT...JOINT
-
125UG-25880-00-00 ...PUSH ROD COMP....PUSH ROD COMP.
-
1390105-08129-00 BOLT, FLANGEBOLT, FLANGE
-
1490240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1591402-20020-00 PIN, COTTERPIN, COTTER
-
165B4-F5882-01-00 PIPE, BRAKE 2PIPE, BRAKE 2
-
175B4-F5872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1890105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
195ND-F5875-01-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
2095812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
215UG-F3192-01-00 BANDBAND
-
2295812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
235B4-F1338-00-00 CLAMPCLAMP
-
2490401-10015-00 BOLT, UNIONBOLT, UNION
-
2590201-10118-00 WASHER, PLATEWASHER, PLATE
-
265B4-F5871-01-00 PIPE, BRAKEPIPE, BRAKE
-
275B4-F1338-00-00 CLAMPCLAMP
-
285B4-F5873-10-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
2990105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
305B4-F1338-00-00 CLAMPCLAMP
-
3190401-10015-00 BOLT, UNIONBOLT, UNION
-
3290201-10118-00 WASHER, PLATEWASHER, PLATE
