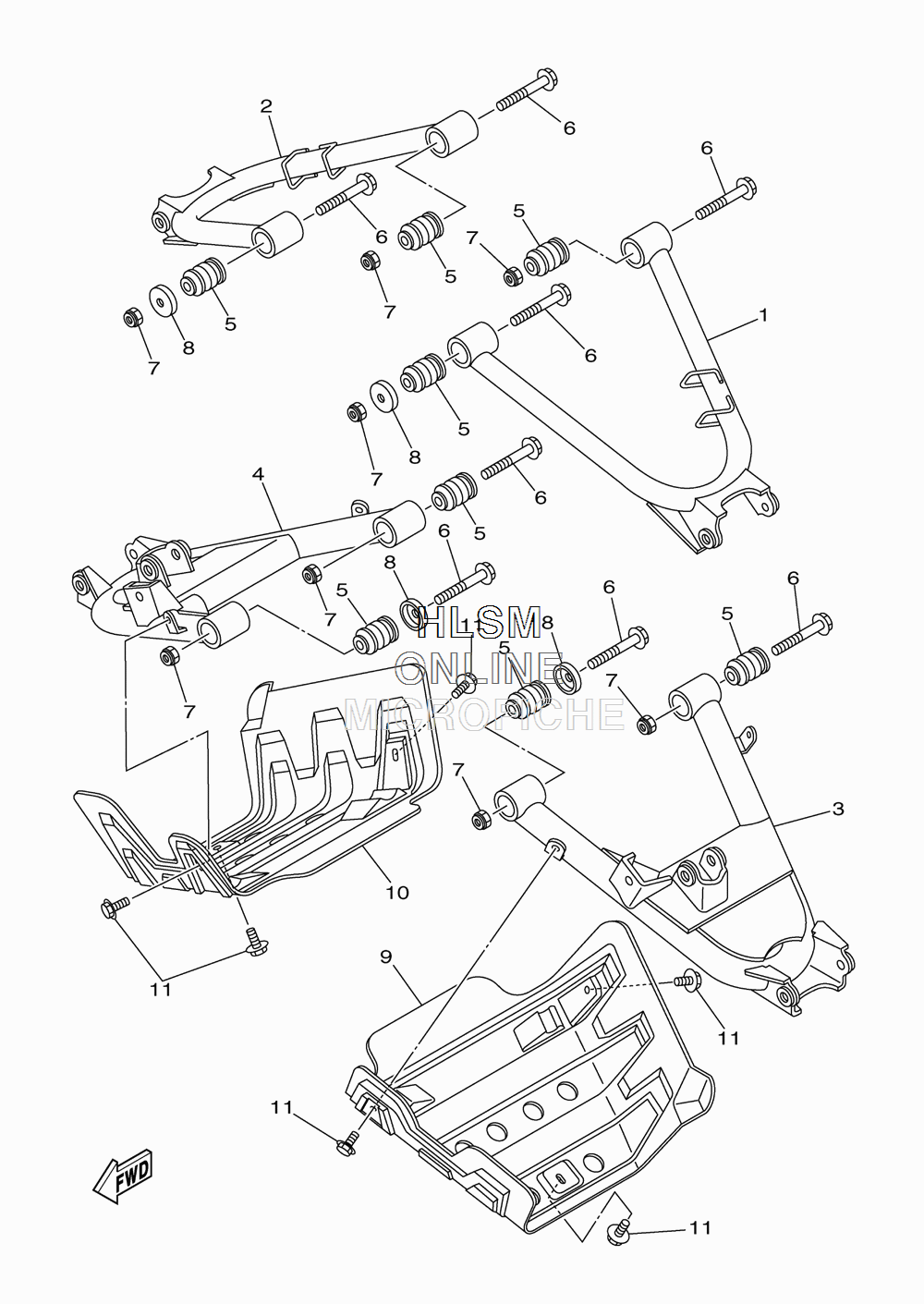

SUSPENSION - REAR ARM для Yamaha RHINO 700 - 2013 года выпуска`
-
№АртикулНазвание
-
15B4-F2171-00-00 ARM, REAR 1ARM, REAR 1
-
25B4-F2172-00-00 ARM, REAR 2ARM, REAR 2
-
35B4-F217M-00-00 ARM 1ARM 1
-
45B4-F217N-00-00 ARM 2ARM 2
-
55KM-23526-00-00 BUSHBUSH
-
690105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
790185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
85KM-22149-10-00 WASHERWASHER
-
95B4-F2128-00-00 COVER, THRUST 1COVER, THRUST 1
-
105B4-F2129-00-00 COVER, THRUST 2COVER, THRUST 2
-
1190119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
