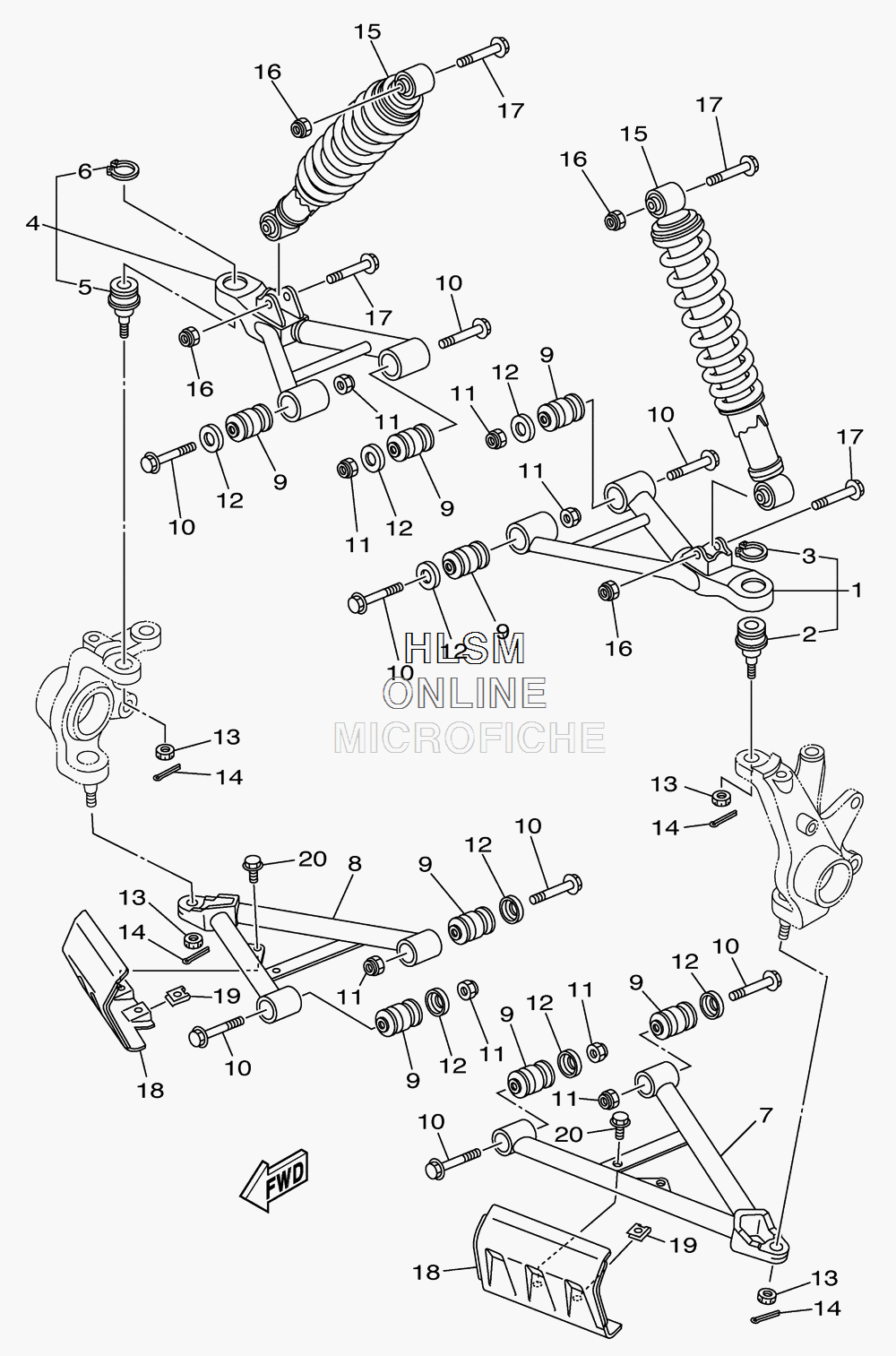

SUSPENSION - FRONT WHEEL для Yamaha RHINO 700 HUNTER - 2011 года выпуска`
-
№АртикулНазвание
-
15UG-F3540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
237S-23549-00-00 BALL JOINT 1BALL JOINT 1
-
399009-32400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
45UG-F3550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
537S-23549-00-00 BALL JOINT 1BALL JOINT 1
-
699009-32400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
75UG-F357A-00-00 ARM, FRONT LOWER LEFT HAND.ARM, FRONT LOWER LEFT HAND.
-
85UG-F358A-00-00 ARM, FRONT LOWER RIGHT HAND.ARM, FRONT LOWER RIGHT HAND.
-
95KM-23526-00-00 BUSHBUSH
-
1090105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
1190185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
125KM-22149-10-00 WASHERWASHER
-
1390171-12001-00 NUT, CASTLENUT, CASTLE
-
1491402-25020-00 PIN, COTTERPIN, COTTER
-
155B4-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790105-10841-00 BOLT, FLANGEBOLT, FLANGE
-
185B4-F3123-00-00 COVER, UNDER 1COVER, UNDER 1
-
1990183-06053-00 NUT, SPRINGNUT, SPRING
-
2095802-06012-00 BOLT, FLANGEBOLT, FLANGE
