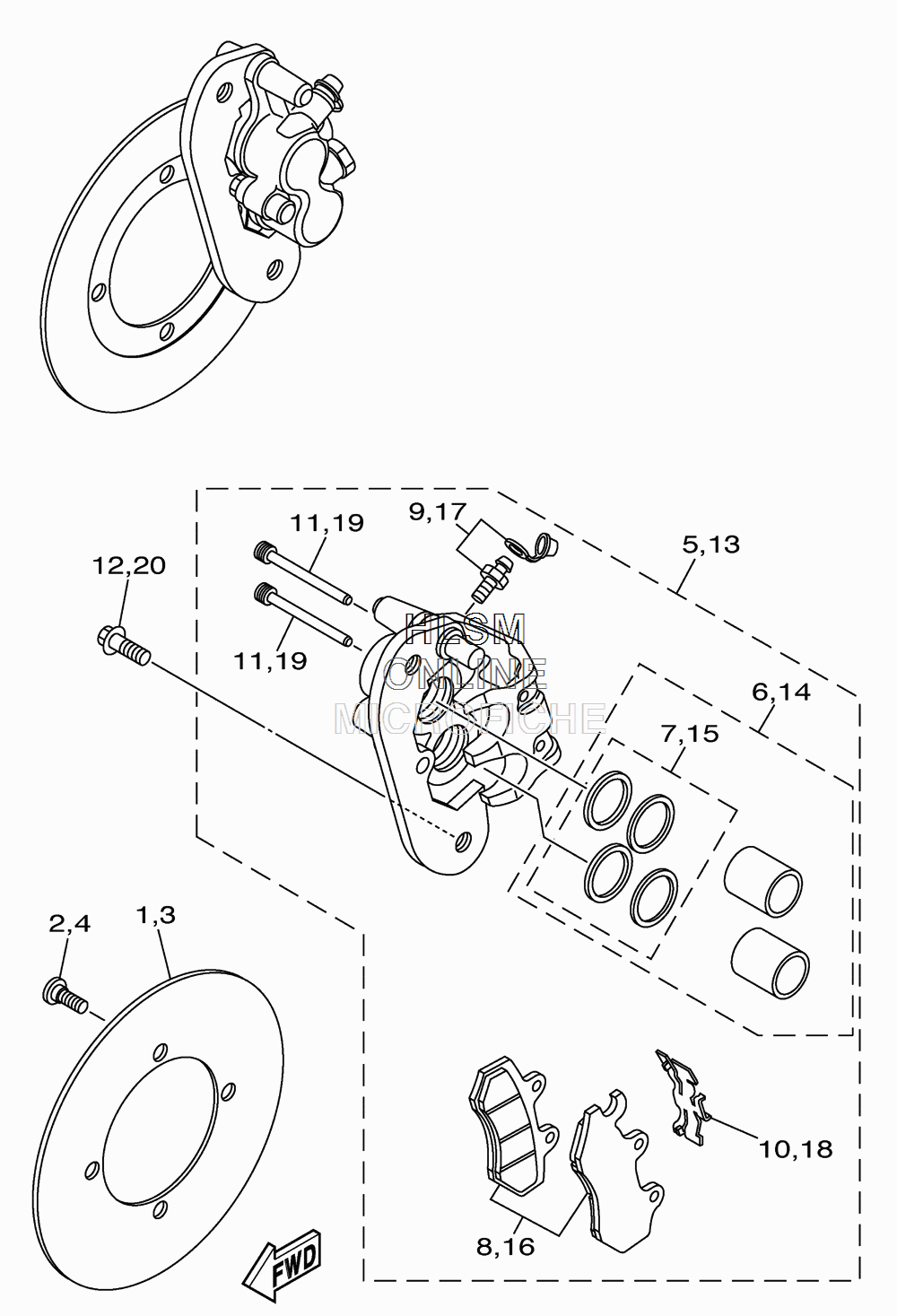

BRAKE - REAR CALIPER для Yamaha RHINO 700 FI - 2011 года выпуска`
-
№АртикулНазвание
-
15B4-F5831-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
290109-08082-00 BOLTBOLT
-
35B4-F5831-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
490109-08082-00 BOLTBOLT
-
55B4-2580V-00-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
65B4-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
73LC-W0047-50-00 CALIPER SEAL KITCALIPER SEAL KIT
-
85B4-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
91UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
103LD-25934-01-00 SPRING, PADSPRING, PAD
-
113LD-25924-00-00 PIN, PADPIN, PAD
-
1290105-10265-00 BOLT, FLANGEBOLT, FLANGE
-
135B4-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
145B4-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
153LC-W0047-50-00 CALIPER SEAL KITCALIPER SEAL KIT
-
165B4-W0045-10-00 BRAKE PAD KITBRAKE PAD KIT
-
171UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
183LD-25934-01-00 SPRING, PADSPRING, PAD
-
193LD-25924-00-00 PIN, PADPIN, PAD
-
2090105-10265-00 BOLT, FLANGEBOLT, FLANGE
