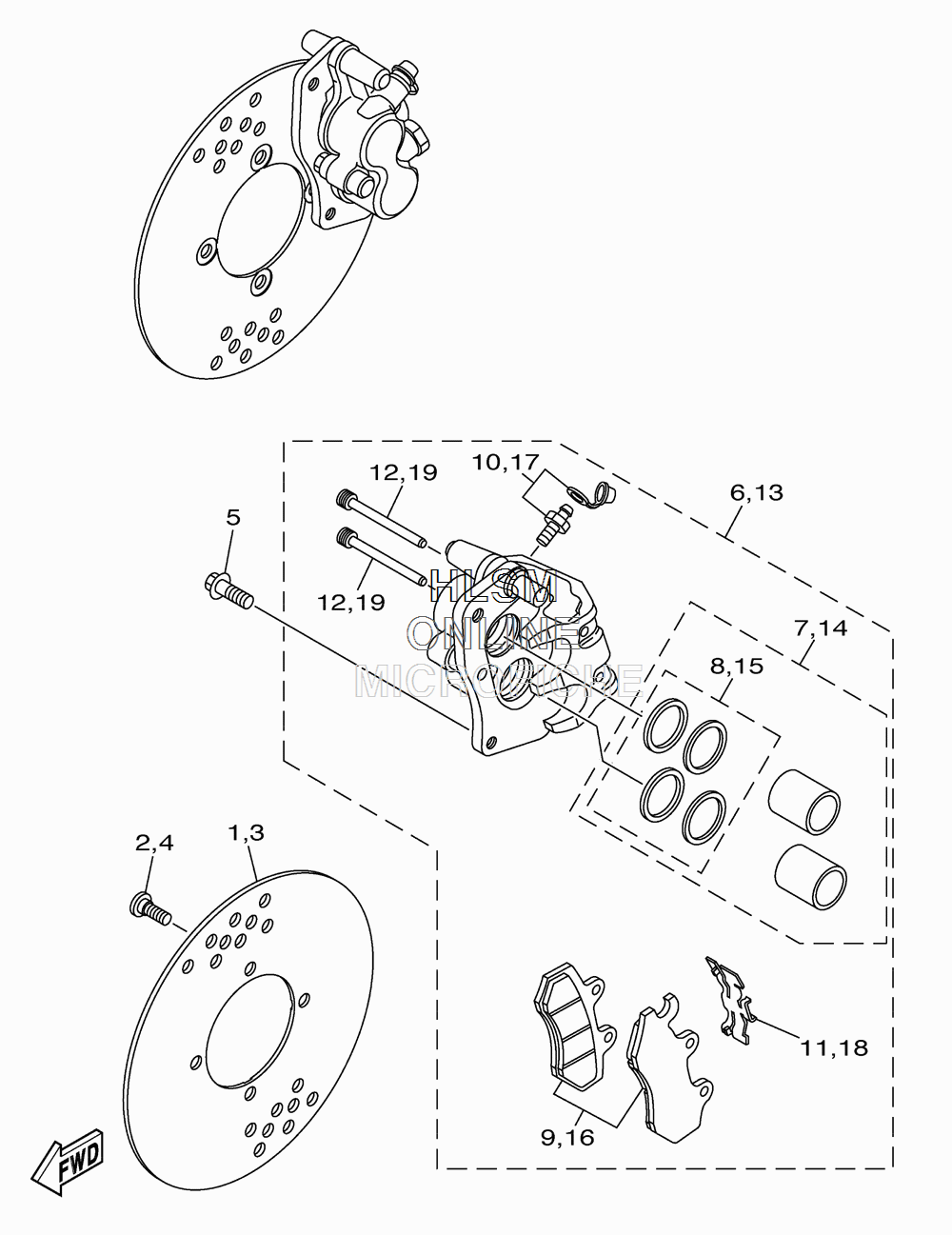

BRAKE - FRONT CALIPER для Yamaha RHINO 700 FI SPORT EDITION - 2011 года выпуска`
-
№АртикулНазвание
-
15B4-F582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08082-00 BOLTBOLT
-
35B4-F582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
490109-08082-00 BOLTBOLT
-
590105-10265-00 BOLT, FLANGEBOLT, FLANGE
-
65B4-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
73LD-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
83JD-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
95B4-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
101UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
113LD-25934-01-00 SPRING, PADSPRING, PAD
-
123LD-25924-00-00 PIN, PADPIN, PAD
-
135B4-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
143LD-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
153JD-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
165B4-W0045-10-00 BRAKE PAD KITBRAKE PAD KIT
-
171UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
183LD-25934-01-00 SPRING, PADSPRING, PAD
-
193LD-25924-00-00 PIN, PADPIN, PAD
