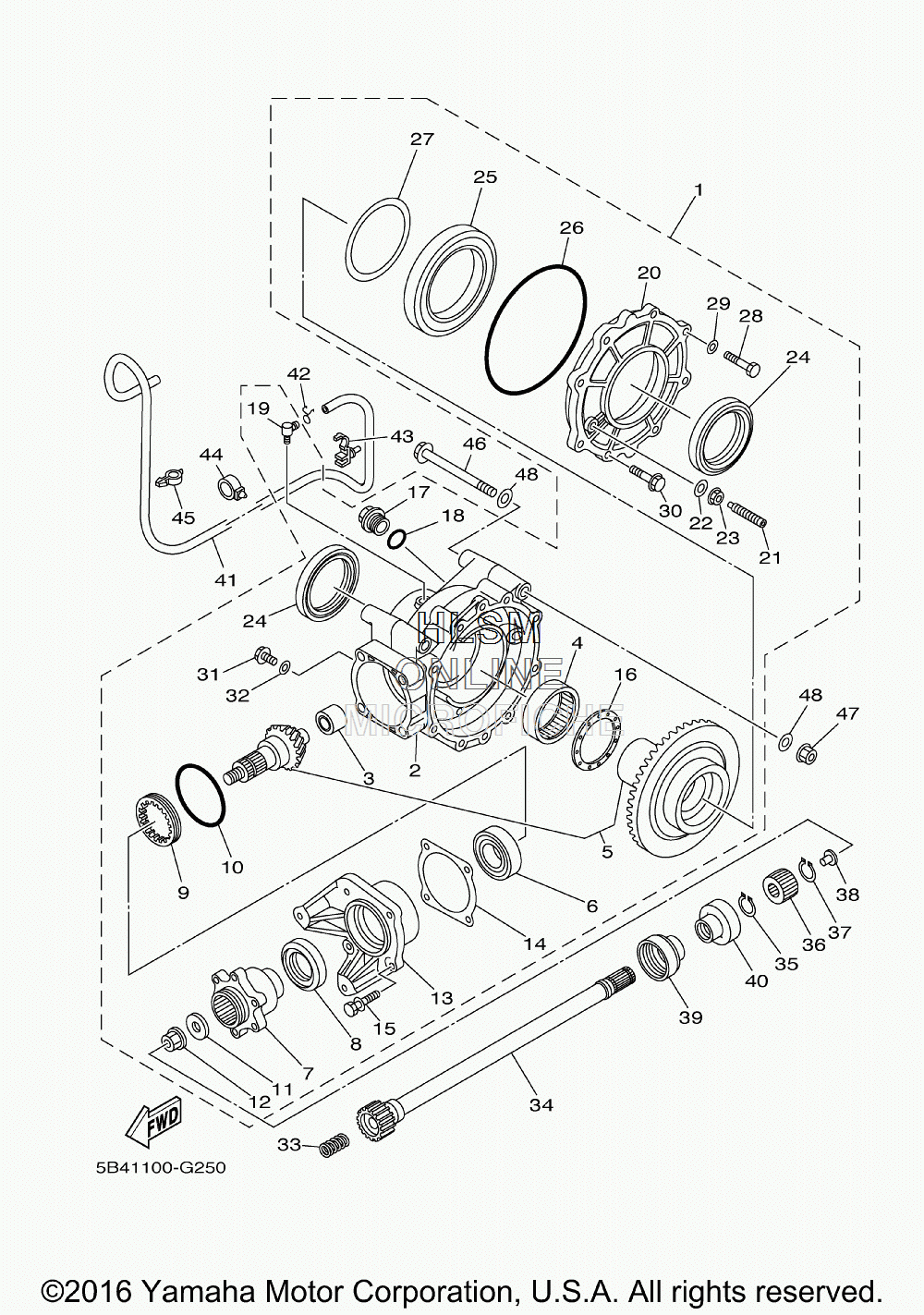

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha RHINO 700 FI SPECIAL EDITION (ROMANTIQUE ROUGE) - 2009 года выпуска
-
№АртикулНазвание
-
15UG-46101-10-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
25UG-46151-01-00 ...HOUSING, DRIVE SHAFT...HOUSING, DRIVE SHAFT
-
35KM-46102-00-00 ...BEARING ASSY...BEARING ASSY
-
493317-85569-00 ...BEARING...BEARING
-
55UG-Y4612-00-00 ...RING GEAR SET...RING GEAR SET
-
693306-30574-00 ...BEARING...BEARING
-
75UG-46212-00-00 ...BOSS, 1...BOSS, 1
-
893102-35009-00 ...OIL SEAL...OIL SEAL
-
990179-65305-00 ...NUT...NUT
-
1093210-626A7-00 ...O-RING...O-RING
-
1190201-12029-00 ...WASHER, PLATE...WASHER, PLATE
-
1290179-12325-00 ...NUT...NUT
-
135UG-46144-00-00 ...HOUSING, PINION BEARING...HOUSING, PINION BEARING
-
142HR-46127-00-50 ...SHIM, DRIVE PISTON (0.50T) (OPT)...SHIM, DRIVE PISTON (0.50T) (OPT)
-
142HR-46127-00-40 ...SHIM, DRIVE PISTON (0.40T) (OPT)...SHIM, DRIVE PISTON (0.40T) (OPT)
-
142HR-46127-00-25 ...SHIM, DRIVE PISTON (0.25T) (OPT)...SHIM, DRIVE PISTON (0.25T) (OPT)
-
142HR-46127-00-30 ...SHIM, DRIVE PISTON (0.30T) (OPT)...SHIM, DRIVE PISTON (0.30T) (OPT)
-
142HR-46127-00-35 ...SHIM, DRIVE PISTON (0.35T) (OPT)...SHIM, DRIVE PISTON (0.35T) (OPT)
-
142HR-46127-00-45 ...SHIM, DRIVE PISTON (0.45T) (OPT)...SHIM, DRIVE PISTON (0.45T) (OPT)
-
1590119-08125-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
1624W-46118-00-12 ...WASHER, THRUST (1.2T) (OPT)...WASHER, THRUST (1.2T) (OPT)
-
1624W-46118-00-14 ...WASHER, THRUST (1.4T) (OPT)...WASHER, THRUST (1.4T) (OPT)
-
1624W-46118-00-16 ...WASHER, THRUST (1.6T) (OPT)...WASHER, THRUST (1.6T) (OPT)
-
1624W-46118-00-18 ...WASHER, THRUST (1.8T) (OPT)...WASHER, THRUST (1.8T) (OPT)
-
1624W-46118-00-20 ...WASHER, THRUST (2.0T) (OPT)...WASHER, THRUST (2.0T) (OPT)
-
1790340-20143-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
1893210-19123-00 ...O-RING...O-RING
-
195UG-15371-00-00 ...BREATHER...BREATHER
-
205KM-46152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
212HR-46156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
2290201-08087-00 ...WASHER, PLATE...WASHER, PLATE
-
2395702-08500-00 ...NUT, FLANGE...NUT, FLANGE
-
2493102-65008-00 ...OIL SEAL...OIL SEAL
-
2593316-01701-00 ...BEARING...BEARING
-
2693211-51749-00 ...O-RING...O-RING
-
2722U-46117-00-25 ...SHIM, RING GEAR (0.25T) (OPT)...SHIM, RING GEAR (0.25T) (OPT)
-
2722U-46117-00-30 ...SHIM, RING GEAR (0.30T) (OPT)...SHIM, RING GEAR (0.30T) (OPT)
-
2722U-46117-00-40 ...SHIM, RING GEAR (0.40T) (OPT)...SHIM, RING GEAR (0.40T) (OPT)
-
2897022-08025-00 ...BOLT, HEXAGON...BOLT, HEXAGON
-
2992902-08600-00 ...WASHER, PLATE...WASHER, PLATE
-
3095812-10025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3195022-10016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3290430-10171-00 ...GASKET...GASKET
-
3390501-18002-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
345B4-G6172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3599009-19400-00 CIRCLIPCIRCLIP
-
365KM-46126-00-00 COUPLINGCOUPLING
-
3793410-22039-00 CIRCLIPCIRCLIP
-
385KM-46559-00-00 DAMPERDAMPER
-
395KM-46137-00-00 SEAL 2SEAL 2
-
405KM-46136-00-00 SEAL 1SEAL 1
-
4190445-074F6-00 HOSE (L1300)HOSE (L1300)
-
4290467-07029-00 CLIPCLIP
-
4390464-12830-00 CLAMPCLAMP
-
4490464-19815-00 CLAMPCLAMP
-
4590464-10833-00 CLAMPCLAMP
-
4690105-10220-00 BOLT, FLANGEBOLT, FLANGE
-
4790185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4890201-10035-00 WASHER, PLATEWASHER, PLATE
