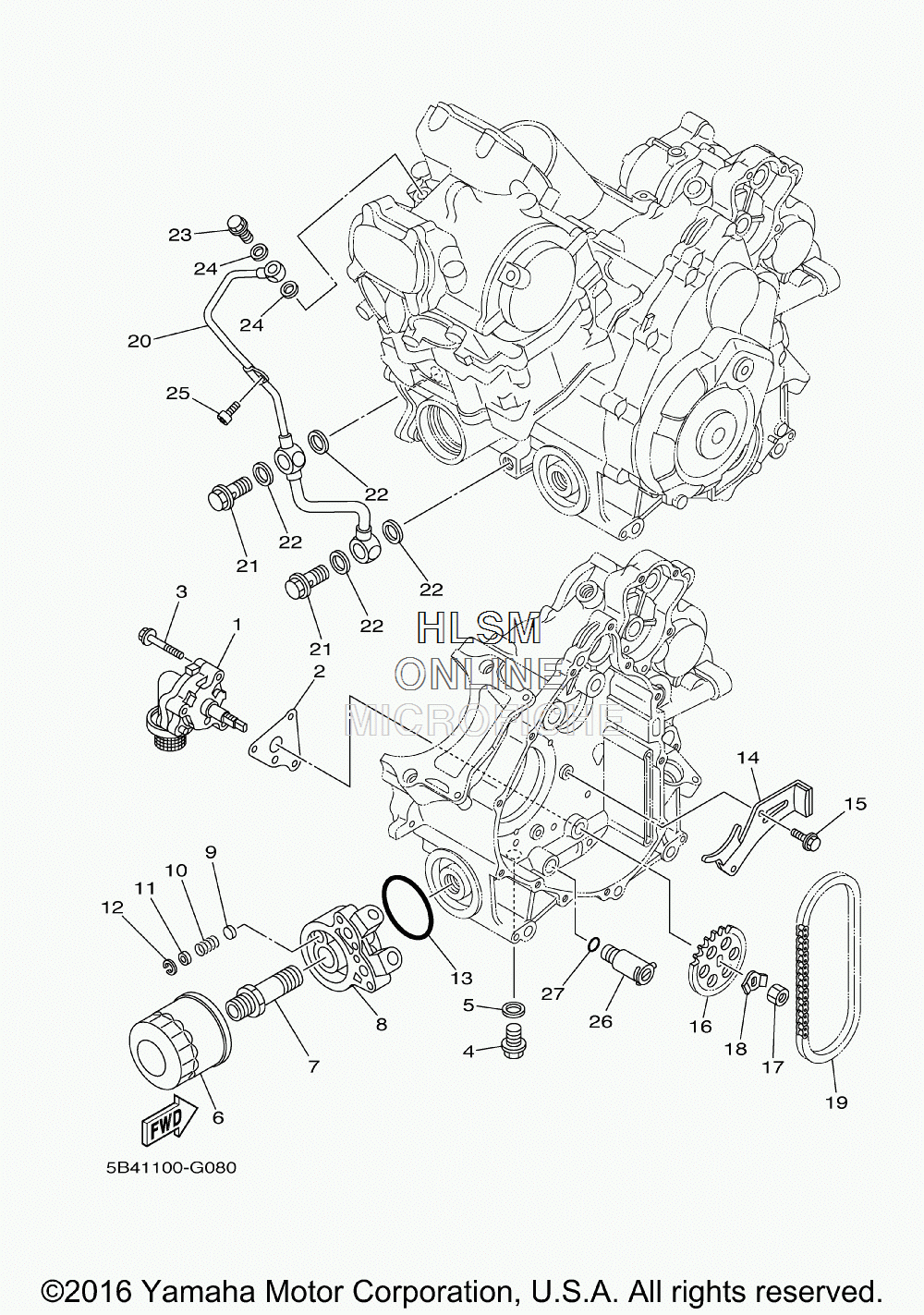

OIL PUMP для Yamaha RHINO 700 FI SPECIAL EDITION II - 2009 года выпуска`
-
№АртикулНазвание
-
13B4-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
23B4-13329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
395022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
490340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
5214-11198-01-00 GASKETGASKET
-
65GH-13440-20-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
790401-20162-00 BOLT, UNIONBOLT, UNION
-
85UG-13461-00-00 PLATE, ADAPTORPLATE, ADAPTOR
-
91YW-13497-00-00 PLUGPLUG
-
1090501-082E3-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1192902-06600-00 WASHER, PLATEWASHER, PLATE
-
1293420-13073-00 CIRCLIPCIRCLIP
-
1393210-57428-00 O-RINGO-RING
-
143B4-12221-00-00 GUIDE, STOPPER 3GUIDE, STOPPER 3
-
1590105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
163B4-13355-00-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
1795312-10600-00 NUTNUT
-
1890215-10008-00 WASHER, LOCKWASHER, LOCK
-
1994580-31074-00 CHAIN (DID 25HT)CHAIN (DID 25HT)
-
203B4-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
2190401-14118-00 BOLT, UNIONBOLT, UNION
-
2290430-14043-00 GASKET (SEE NOTE)GASKET (SEE NOTE)
-
2390401-10015-00 BOLT, UNIONBOLT, UNION
-
2490430-10188-00 GASKET (SEE NOTE)GASKET (SEE NOTE)
-
2591312-06012-00 BOLTBOLT
-
2625G-13490-00-00 RELIEF VALVE ASSYRELIEF VALVE ASSY
-
2793210-10096-00 O-RINGO-RING
