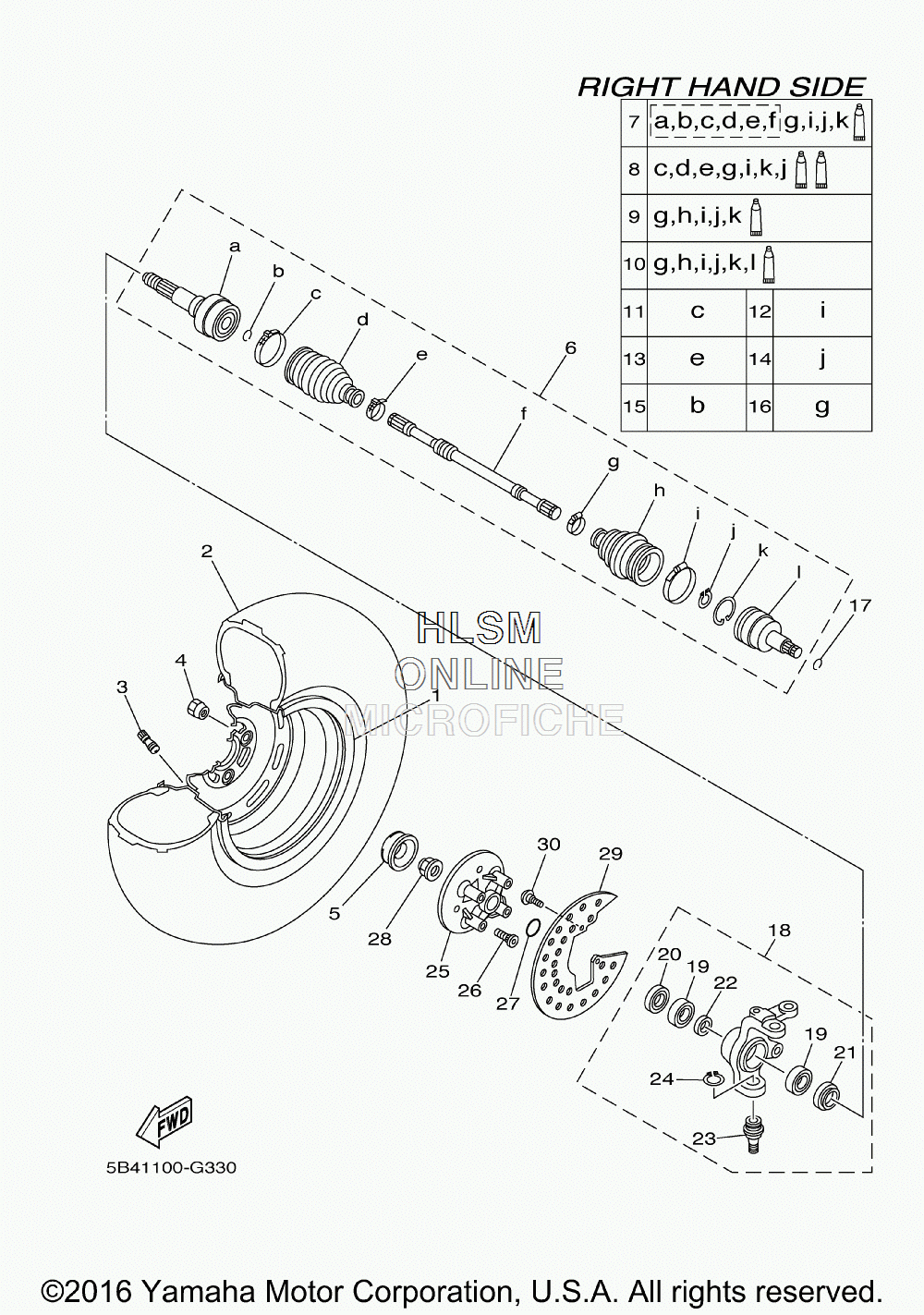

WHEEL - FRONT RIGHT SIDE W/ AXLE ASSY для Yamaha RHINO 700 FI HUNTER - 2009 года выпуска`
-
№АртикулНазвание
-
15UG-F5180-00-00 WHEEL COMP.WHEEL COMP.
-
294108-12809-00 TIRE (25X8.00-12 M951Y TL) (CHENG SHIN)TIRE (25X8.00-12 M951Y TL) (CHENG SHIN)
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
490179-10022-00 NUTNUT
-
52P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
65B4-F518F-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
-
75B4-F510F-00-00 ...BALL JOINT SET...BALL JOINT SET
-
85B4-F510G-00-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
95B4-F510H-00-00 ...BOOT SET(DOUBLE OFFSET JOINT...BOOT SET(DOUBLE OFFSET JOINT
-
105B4-F510J-00-00 ...DOUBLE OFF SET JOINT...DOUBLE OFF SET JOINT
-
115B4-F511G-00-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
123B4-2511H-00-00 ...BOOT BAND(DOUBLE OFFSET JOINT...BOOT BAND(DOUBLE OFFSET JOINT
-
135B4-F512G-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
143B4-2512J-00-00 ...SNAP RING...SNAP RING
-
155UG-F512H-00-00 ...CIRCLIP...CIRCLIP
-
165UG-F510U-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
1793450-22119-00 CIRCLIPCIRCLIP
-
185UG-F3502-11-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
1993306-006Y4-00 ...BEARING...BEARING
-
2093106-38046-00 ...OIL SEAL...OIL SEAL
-
2193106-38047-00 ...OIL SEAL...OIL SEAL
-
2290387-30008-00 ...COLLAR...COLLAR
-
235FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
2499009-32400-00 ...CIRCLIP...CIRCLIP
-
255UG-F5111-10-00 HUB, FRONTHUB, FRONT
-
2690114-10016-00 BOLT, SERRATIONBOLT, SERRATION
-
2793210-27666-00 O-RINGO-RING
-
2890179-24003-00 NUTNUT
-
295UG-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
3090149-06280-00 SCREWSCREW
