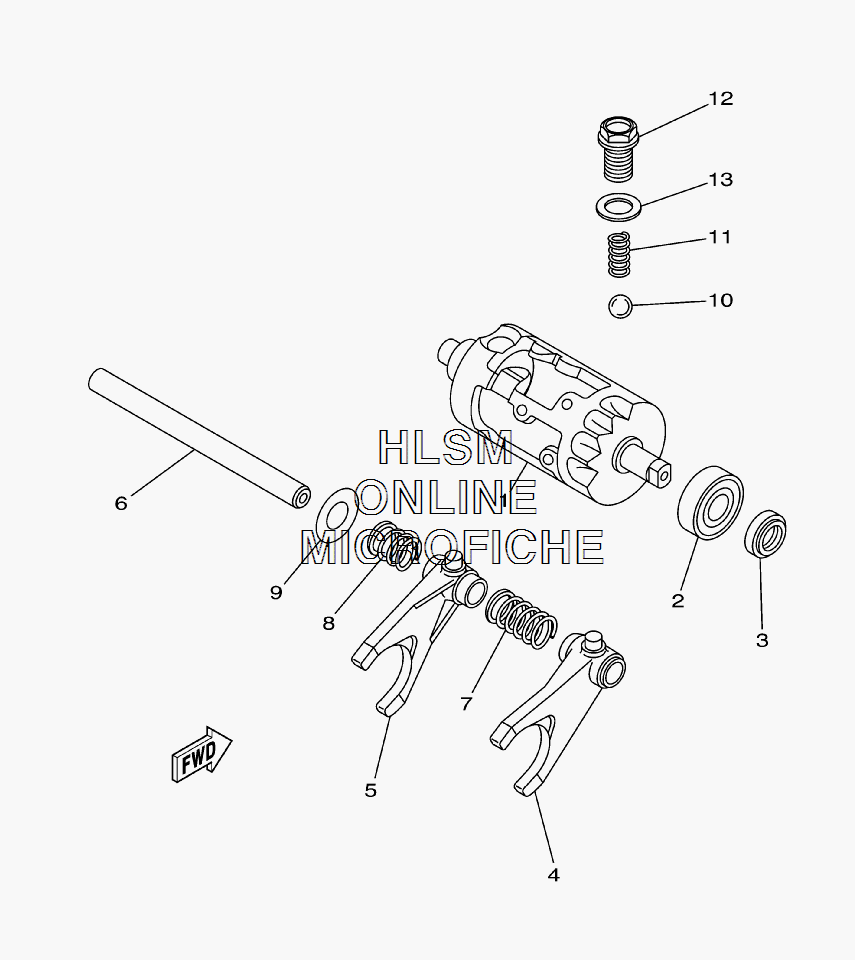

SHIFT CAM W/ FORK для Yamaha RHINO 450 - 2008 года выпуска`
-
№АртикулНазвание
-
12P5-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293306-00208-00 BEARINGBEARING
-
393102-15212-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
41D9-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
51D9-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
64KB-18531-01-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
790501-130A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
890501-166L4-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
990201-15564-00 WASHER, PLATE (1.5T)WASHER, PLATE (1.5T)
-
1093503-08007-00 BALL 3/8BALL 3/8
-
1190501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1290105-14003-00 BOLT, FLANGEBOLT, FLANGE
-
1390430-14194-00 GASKETGASKET
