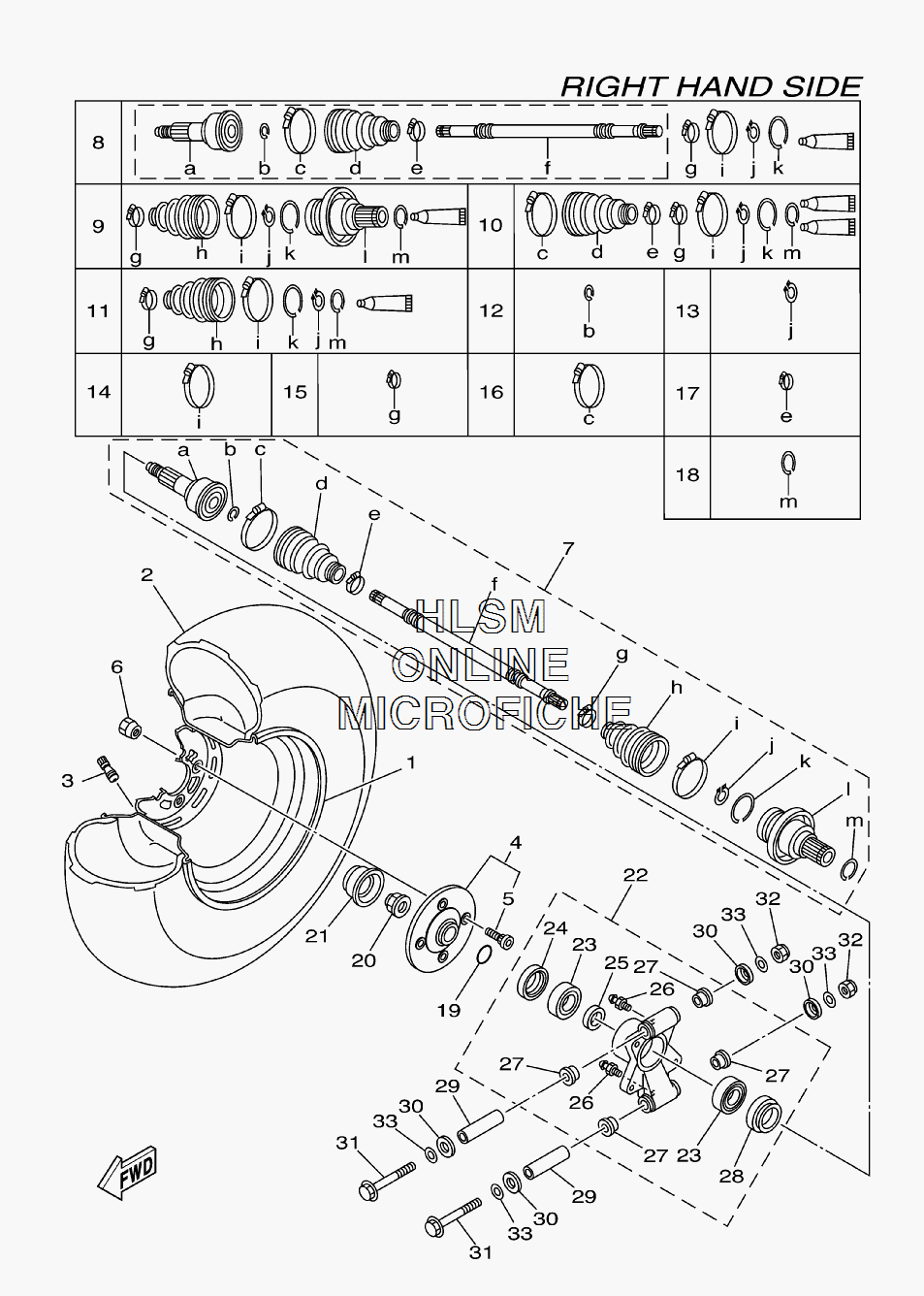

WHEEL - REAR RIGHT SIDE W/ AXLE ASSY для Yamaha RHINO 660 - 2007 года выпуска`
-
№АртикулНазвание
-
15UG-F5390-20-00 REAR RIM (12 X 7.5)REAR RIM (12 X 7.5)
-
294110-12805-00 TIRE (25X10.00-12 M952Y TL) CHENG SHINTIRE (25X10.00-12 M952Y TL) CHENG SHIN
-
393900-00813-00 VALVE, RIMVALVE, RIM
-
45UG-F5310-20-00 HUB ASSYHUB ASSY
-
590114-10012-00 ...BOLT, SERRATION...BOLT, SERRATION
-
690179-10540-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
75UG-F53B0-21-00 SHAFT, REAR DRIVE (RH)SHAFT, REAR DRIVE (RH)
-
85UG-F530U-20-00 ...BALL JOINT SET (RH)...BALL JOINT SET (RH)
-
95UG-F530W-02-00 ...DOUBLE OFF SET JOINT (RH)...DOUBLE OFF SET JOINT (RH)
-
105UG-F530X-01-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
115UG-F530Y-01-00 ...BOOT SET (DOUBLE OFFSET JOINT...BOOT SET (DOUBLE OFFSET JOINT
-
125UG-F512H-00-00 ...CIRCLIP...CIRCLIP
-
135UG-F512J-00-00 ...SNAP RING...SNAP RING
-
145UG-F511H-00-00 ...BOOT BAND (DOUBLE OFFSETJOINT...BOOT BAND (DOUBLE OFFSETJOINT
-
155UG-F512G-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
165UG-F511G-00-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
175UG-F510U-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
185KM-2536E-10-00 ...CLIP, SPRING...CLIP, SPRING
-
1993210-27666-00 O-RINGO-RING
-
2090179-24003-00 NUTNUT
-
212P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
225UG-F530F-11-00 REAR KNUCKLE ASSYREAR KNUCKLE ASSY
-
2393306-206Y2-00 ...BEARING...BEARING
-
2493106-42800-00 ...OIL SEAL...OIL SEAL
-
2590387-30008-00 ...COLLAR...COLLAR
-
2693700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2790381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
2893106-38800-00 ...OIL SEAL...OIL SEAL
-
295KM-23448-00-00 SPACERSPACER
-
305UG-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3190105-10409-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3290185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3390201-101J1-00 WASHER, PLATEWASHER, PLATE
