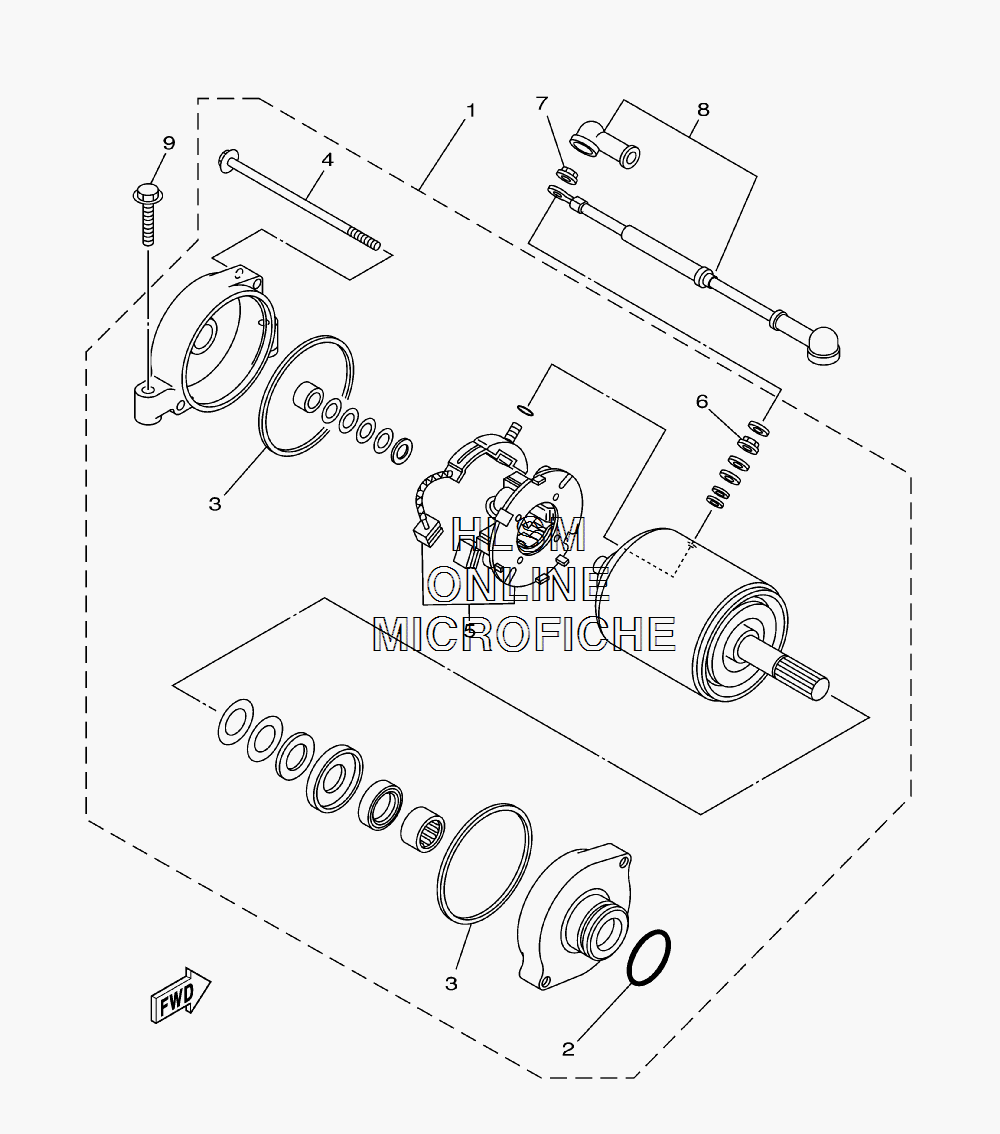

STARTING MOTOR для Yamaha RHINO 660 EXPLORING EDITION - 2007 года выпуска`
-
№АртикулНазвание
-
15KM-81890-00-00 MOTOR ASSYMOTOR ASSY
-
21FK-81847-00-00 ...O-RING...O-RING
-
311H-81844-00-00 ...GASKET...GASKET
-
43AJ-81826-00-00 ...BOLT...BOLT
-
53AJ-81801-00-00 ...BRUSH SET...BRUSH SET
-
64XV-8182A-00-00 ...NUT...NUT
-
74XV-8182A-00-00 NUTNUT
-
85UG-H1815-01-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
995027-06030-00 BOLT, FLANGEBOLT, FLANGE
