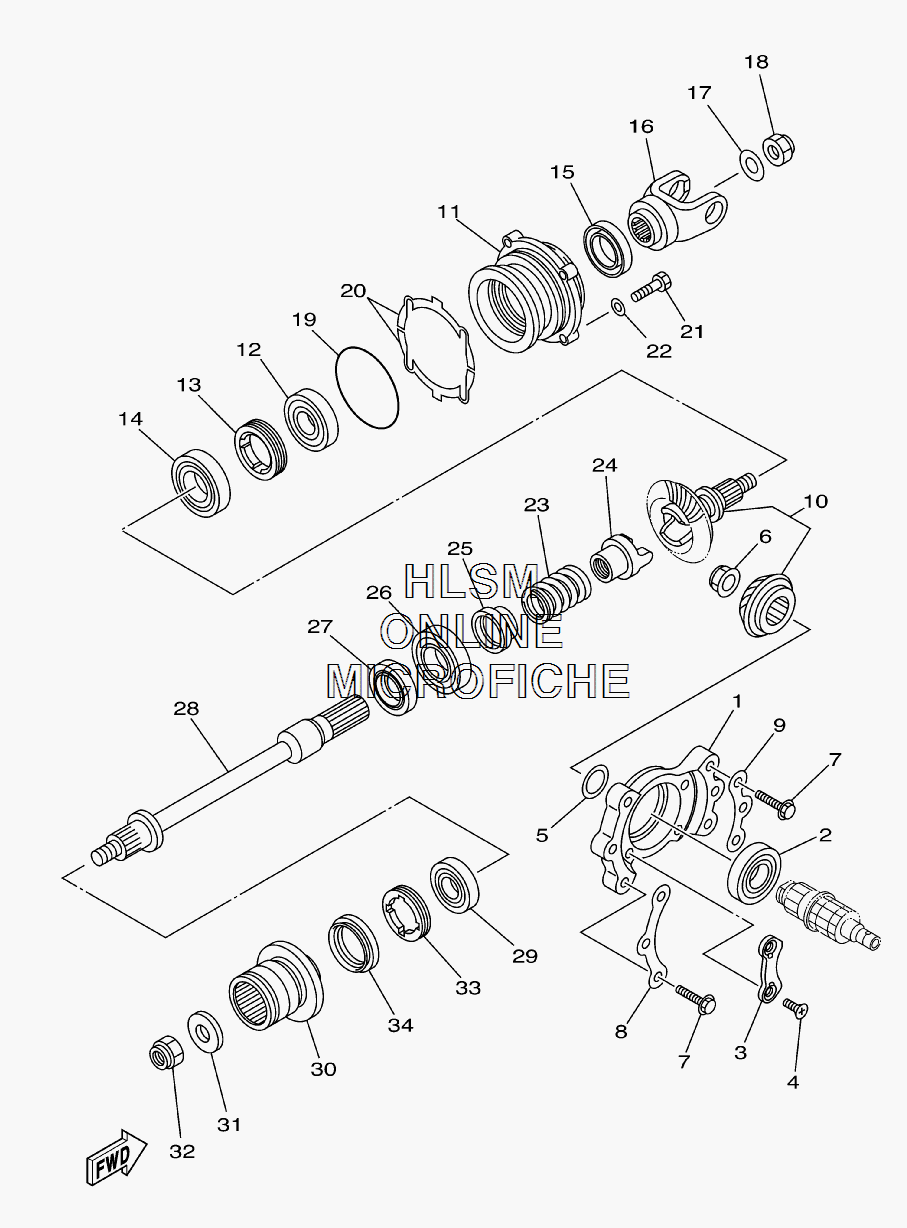

MIDDLE DRIVE GEAR для Yamaha RHINO 450 - 2007 года выпуска`
-
№АртикулНазвание
-
15GH-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
293306-20622-00 BEARINGBEARING
-
311H-15383-02-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
490149-08013-00 SCREWSCREW
-
552G-17531-01-00 SHIM, PINION (0.1T) (OPT)SHIM, PINION (0.1T) (OPT)
-
552G-17531-11-00 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
552G-17531-21-00 SHIM, PINION (0.2T) (OPT)SHIM, PINION (0.2T) (OPT)
-
552G-17531-31-00 SHIM, PINION (0.3T) (OPT)SHIM, PINION (0.3T) (OPT)
-
552G-17531-51-00 SHIM, PINION (0.5T) (OPT)SHIM, PINION (0.5T) (OPT)
-
552G-17531-41-00 SHIM, PINION (0.4T) (OPT)SHIM, PINION (0.4T) (OPT)
-
690179-22015-00 NUTNUT
-
791312-08030-00 BOLTBOLT
-
82P5-17058-00-00 WASHER, 1WASHER, 1
-
92P5-17059-00-00 WASHER, 2WASHER, 2
-
102P5-17530-00-00 PINION SETPINION SET
-
115GH-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1293306-30538-00 BEARINGBEARING
-
1390179-65305-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1493306-20715-00 BEARINGBEARING
-
1593102-35012-00 OIL SEALOIL SEAL
-
161D9-17556-00-00 YOKE, JOINTYOKE, JOINT
-
1790201-14633-00 WASHER, PLATEWASHER, PLATE
-
1890185-14009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1993210-78544-00 O-RINGO-RING
-
205GH-17531-00-00 SHIM, PINION (0.1T) (OPT)SHIM, PINION (0.1T) (OPT)
-
205GH-17531-10-00 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
205GH-17531-20-00 SHIM, PINION (0.2T) (OPT)SHIM, PINION (0.2T) (OPT)
-
205GH-17531-30-00 SHIM, PINION (0.3T) (OPT)SHIM, PINION (0.3T) (OPT)
-
205GH-17531-40-00 SHIM, PINION (0.4T) (OPT)SHIM, PINION (0.4T) (OPT)
-
205GH-17531-50-00 SHIM, PINION (0.5T) (OPT)SHIM, PINION (0.5T) (OPT)
-
205GH-17531-60-00 SHIM, PINION (0.6T) (OPT)SHIM, PINION (0.6T) (OPT)
-
2197022-08030-00 BOLTBOLT
-
2292902-08600-00 WASHER, PLATEWASHER, PLATE
-
2390501-650L5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
244VR-17527-00-00 CAM, DRIVENCAM, DRIVEN
-
255UH-17585-00-00 COLLAR, GEARCOLLAR, GEAR
-
2693306-00612-00 BEARINGBEARING
-
2793102-30170-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
281D9-1761A-00-00 SHAFT, 1SHAFT, 1
-
2993306-20582-00 BEARINGBEARING
-
305UG-45593-00-00 FLANGE, COUPLING 1FLANGE, COUPLING 1
-
3190201-14633-00 WASHER, PLATEWASHER, PLATE
-
3290185-14009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3390179-55660-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
3493102-44454-00 OIL SEALOIL SEAL
