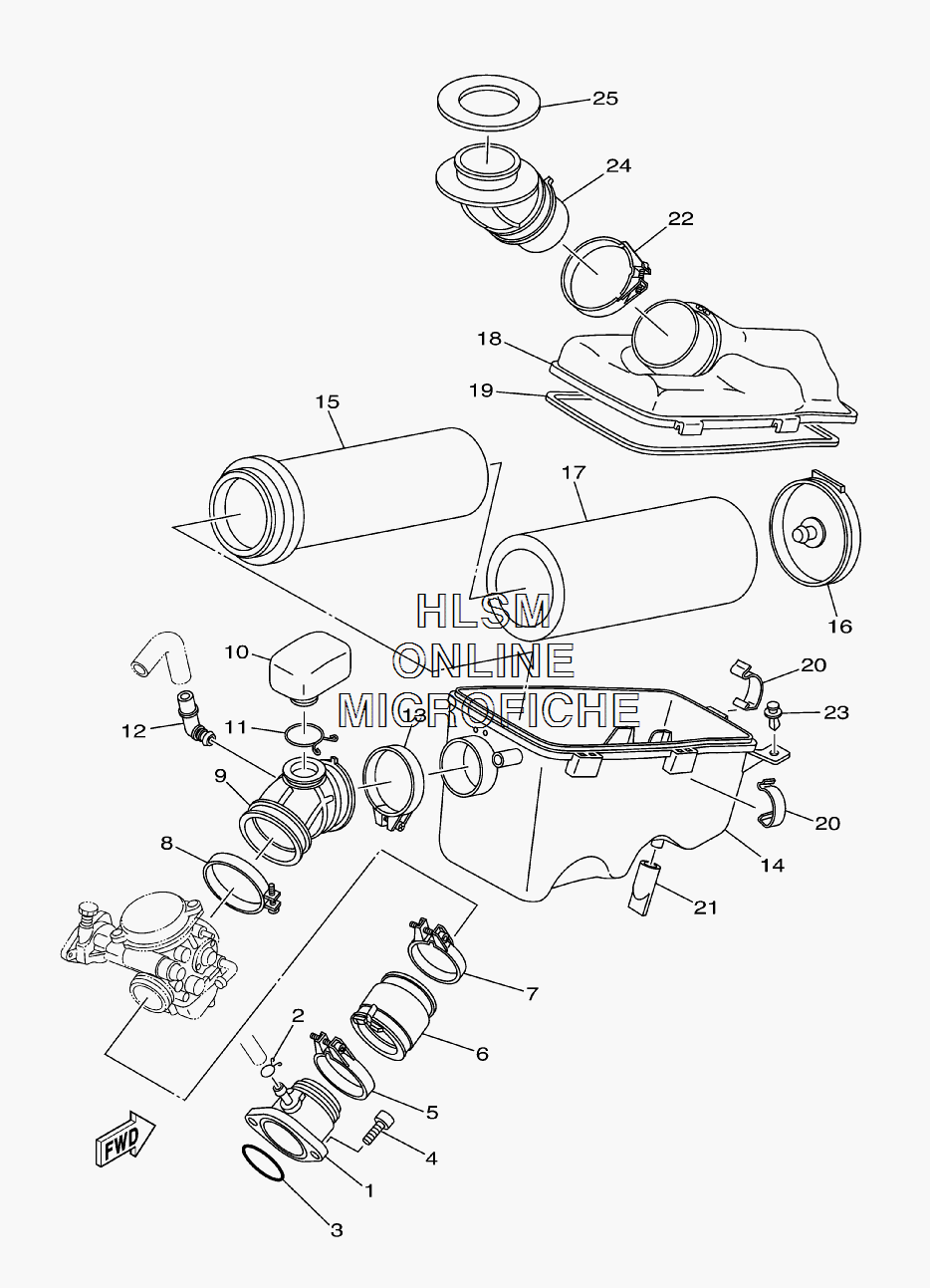

AIR CLEANER W/ INTAKE для Yamaha RHINO 450 SE-BLUE - 2007 года выпуска`
-
№АртикулНазвание
-
12P5-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
290467-08017-00 CLIP, SCISSORCLIP, SCISSOR
-
393210-44545-00 O-RINGO-RING
-
491312-08025-00 BOLTBOLT
-
590450-54005-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
62P5-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
790450-47002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
890450-56006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
92P5-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
105UG-E3591-00-00 CHAMBER, AIR 2CHAMBER, AIR 2
-
115UG-E4137-00-00 CLIPCLIP
-
125KM-14419-00-00 PIPEPIPE
-
1390450-58090-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
142P5-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
155UG-E4458-00-00 GUIDEGUIDE
-
165UH-E4468-00-00 PLATE, ELEMENT FITTINGPLATE, ELEMENT FITTING
-
175UG-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
182P5-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
192P5-E4462-00-00 SEALSEAL
-
205UH-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
215UG-E4769-00-00 PIPE, DRAINPIPE, DRAIN
-
2290450-67002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2390269-08813-00 RIVET, PLASTIC MATRIVET, PLASTIC MAT
-
242P5-E4437-00-00 DUCTDUCT
-
255UG-E4476-00-00 SEALSEAL
