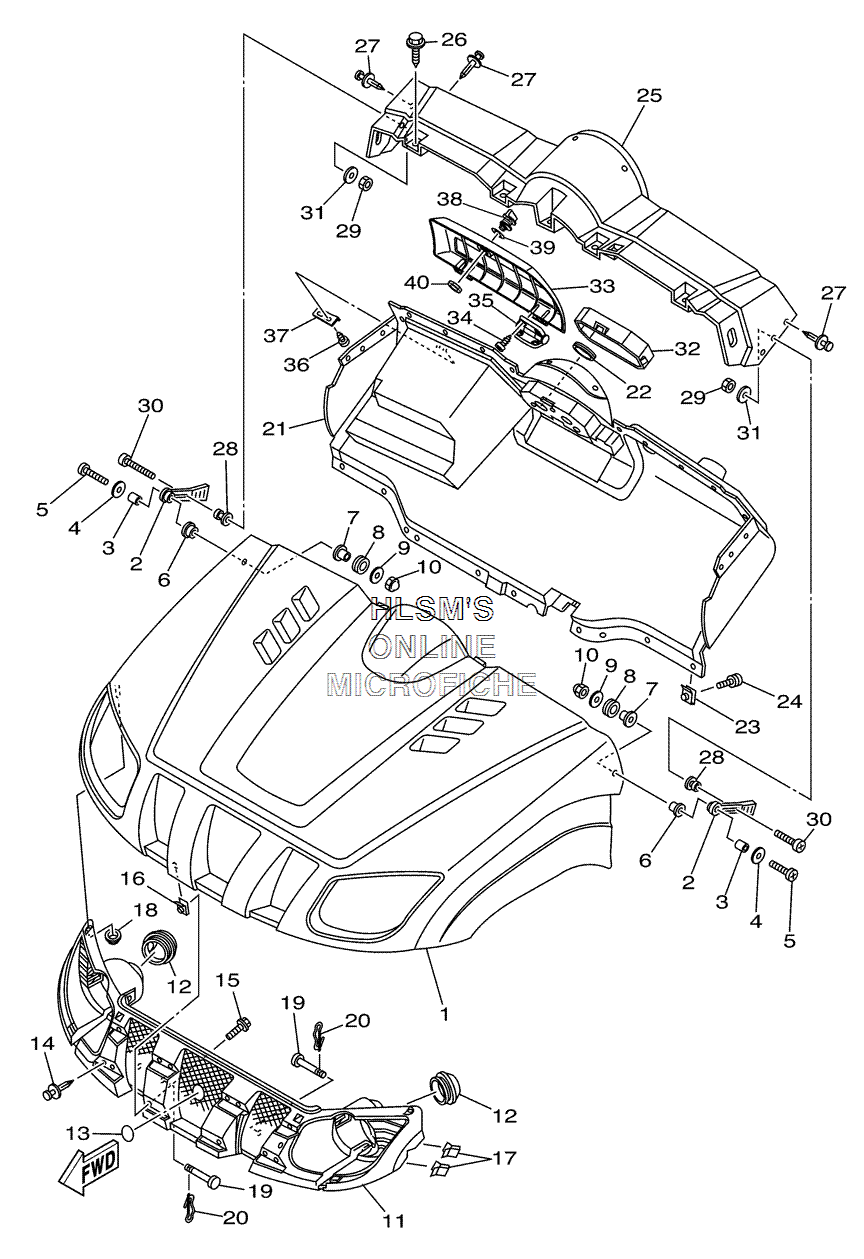

FENDER - FRONT для Yamaha RHINO 660 4WD - 2006 года выпуска`
-
№АртикулНазвание
-
15UG-F1511-10-00 FENDER, FRONTFENDER, FRONT
-
28V0-77171-00-00 BODY, LATCH 1BODY, LATCH 1
-
390387-06241-00 COLLARCOLLAR
-
490201-06557-00 WASHER, PLATEWASHER, PLATE
-
598907-06035-00 SCREW, BINDSCREW, BIND
-
690387-062M9-00 COLLARCOLLAR
-
790387-077M3-00 COLLARCOLLAR
-
890480-15235-00 GROMMETGROMMET
-
990201-06557-00 WASHER, PLATEWASHER, PLATE
-
1095307-06800-00 NUTNUT
-
115UG-F8309-01-00 GRILLE, FRONTGRILLE, FRONT
-
125GH-28349-00-00 CAPCAP
-
135FU-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
1490269-06804-00 RIVETRIVET
-
1590119-05001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690183-050A0-00 NUT, SPRINGNUT, SPRING
-
175UG-F3447-00-00 CLIPCLIP
-
1890183-08800-00 NUT, SPRINGNUT, SPRING
-
1990240-13800-00 PIN, CLEVISPIN, CLEVIS
-
2090468-16191-00 CLIPCLIP
-
215UG-F3391-02-00 PANEL, FRONTPANEL, FRONT
-
2290480-40047-00 GROMMETGROMMET
-
2390183-05073-00 NUT, SPRINGNUT, SPRING
-
2490119-05001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
255UG-F3397-00-00 PANEL, FRONT 2PANEL, FRONT 2
-
2690119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2790269-06800-00 RIVETRIVET
-
288M6-77175-00-00 HOLDER, LATCHHOLDER, LATCH
-
2995707-06300-00 NUT, FLANGENUT, FLANGE
-
3098907-06035-00 SCREW, BINDSCREW, BIND
-
3190201-06074-00 WASHER, PLATEWASHER, PLATE
-
325UG-F837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
335UG-K7736-00-00 LID, GLOVE BOXLID, GLOVE BOX
-
3490164-04800-00 SCREW, TAPPINGSCREW, TAPPING
-
355UG-F1797-00-00 HINGE (GLOVE BOX)HINGE (GLOVE BOX)
-
3690164-05800-00 SCREW, TAPPINGSCREW, TAPPING
-
375UG-F139T-00-00 BRACKET, COVERBRACKET, COVER
-
385UG-F1780-00-00 LOCK ASSY.LOCK ASSY.
-
395UG-F3139-00-00 GASKET, WASHERGASKET, WASHER
