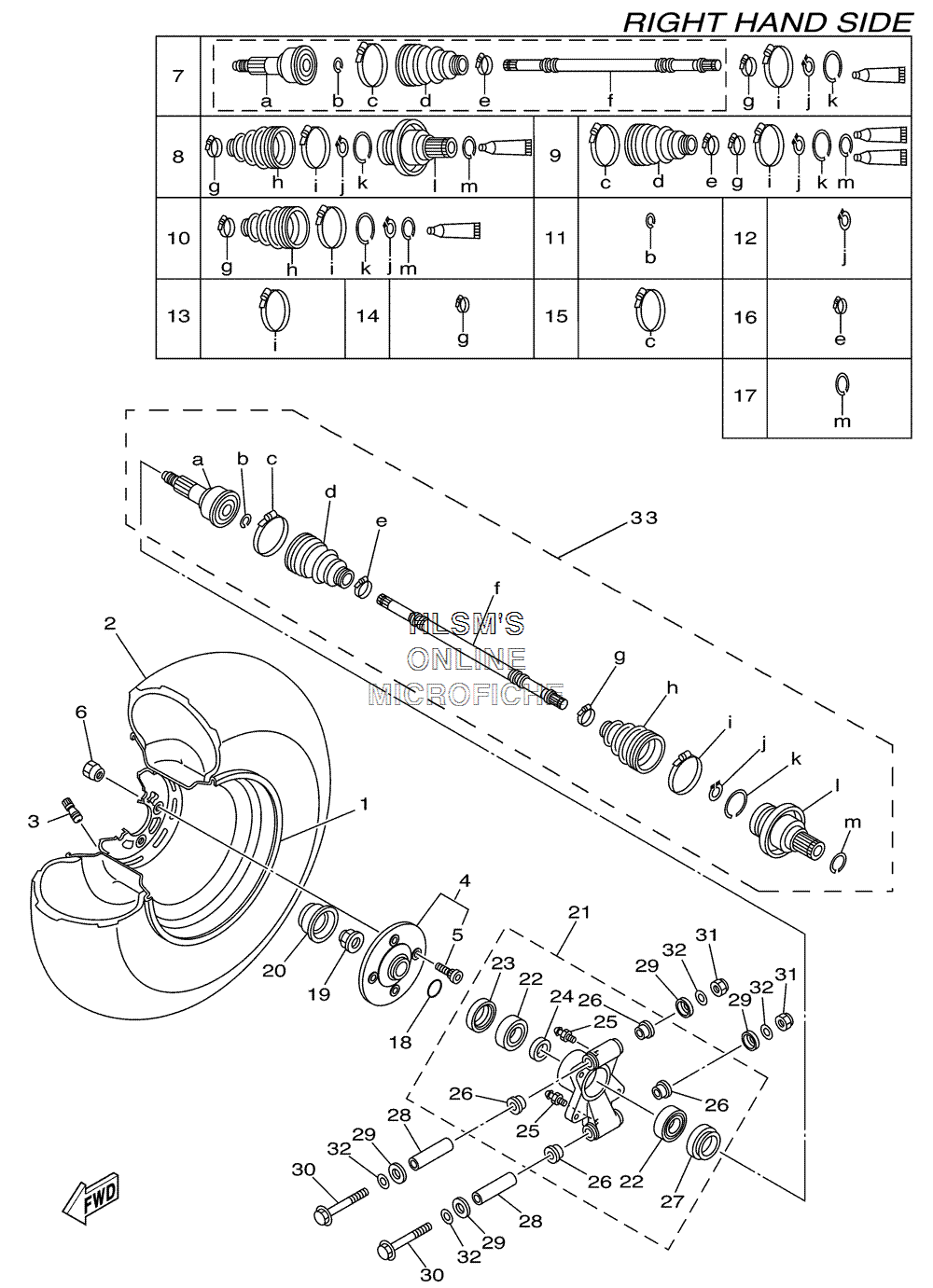

WHEEL - REAR - RIGHT для Yamaha RHINO 660 4WD HUNTER - 2006 года выпуска`
-
№АртикулНазвание
-
15UG-F5390-00-00 REAR WHEEL COMP. (12X7.5)REAR WHEEL COMP. (12X7.5)
-
294110-12805-00 TIRE (25X10.00-12 M952Y TL) (CHENG SHIN)TIRE (25X10.00-12 M952Y TL) (CHENG SHIN)
-
393900-00813-00 VALVE, RIMVALVE, RIM
-
45UG-F5310-20-00 HUB ASSY.HUB ASSY.
-
590114-10012-00 ...BOLT, RIBBED NECK...BOLT, RIBBED NECK
-
690179-10540-00 NUTNUT
-
75UG-F530U-20-00 BALL JOINT SET RHBALL JOINT SET RH
-
85UG-F530W-00-00 DOUBLE OFF SET JOINT RHDOUBLE OFF SET JOINT RH
-
95UG-F530X-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
105UG-F530Y-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
115UG-F512H-00-00 CIRCLIPCIRCLIP
-
125UG-F512J-00-00 SNAP RINGSNAP RING
-
135UG-F511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
145UG-F512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
155UG-F511G-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
165UG-F510U-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
175KM-2536E-10-00 CLIP, SPRINGCLIP, SPRING
-
1893210-27666-00 O-RINGO-RING
-
1990179-24003-00 NUTNUT
-
202P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
215UG-F530F-11-00 REAR KNUCKLE ASSY.REAR KNUCKLE ASSY.
-
2293306-206Y2-00 ...BEARING...BEARING
-
2393106-42800-00 ...OIL SEAL...OIL SEAL
-
2490387-30008-00 ...COLLAR...COLLAR
-
2593700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2690381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
2793106-38800-00 ...OIL SEAL...OIL SEAL
-
285KM-23448-00-00 SPACERSPACER
-
295UG-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3090105-10409-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3190185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290201-101J1-00 WASHER, PLATEWASHER, PLATE
-
335UG-F53B0-20-00 REAR DRIVE SHAFT ASSY. RHREAR DRIVE SHAFT ASSY. RH
