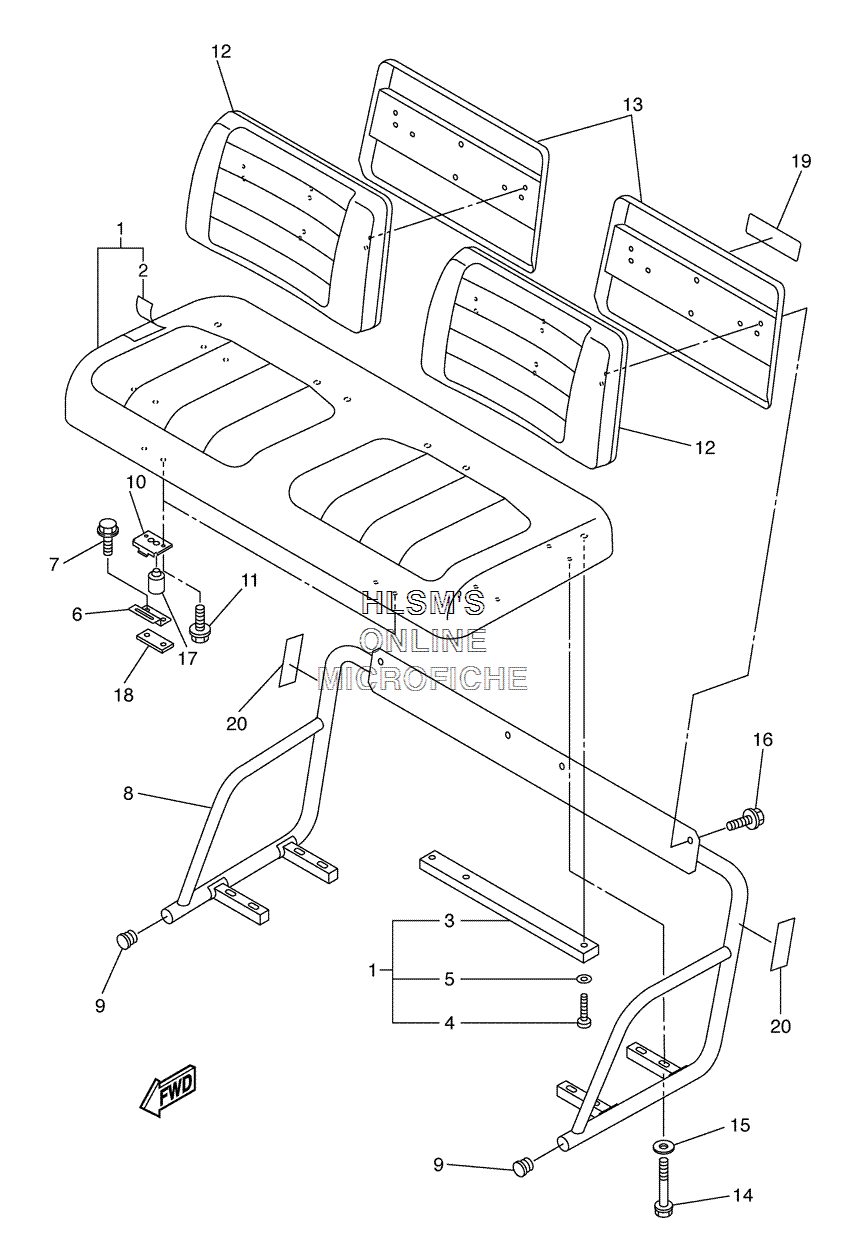

SEAT ASSY. для Yamaha PRO HAULER 700 - 2005 года выпуска`
-
№АртикулНазвание
-
1JW4-K8401-10-00 SEAT SUB-ASSY., CUSHIONSEAT SUB-ASSY., CUSHION
-
2JW4-K8404-00-00 ...COVER, SEAT...COVER, SEAT
-
3JU7-K842A-00-00 ...SEAL, SEAT 2...SEAL, SEAT 2
-
4JU7-K7387-00-00 ...SCREW...SCREW
-
5JU7-K7389-00-00 ...WASHER...WASHER
-
6JF2-K8427-00-00 HINGE, SEAT 2HINGE, SEAT 2
-
790105-06903-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
8JU7-K8420-00-00 SEAT ASSY. 2SEAT ASSY. 2
-
9JU7-F111A-00-00 CAP, MAIN PIPECAP, MAIN PIPE
-
10JN3-K8426-02-00 HINGE, SEAT 1HINGE, SEAT 1
-
1190119-069UD-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
12JW4-K8402-00-00 SEAT SUB ASSY., BACKSEAT SUB ASSY., BACK
-
13JJ3-K8413-10-00 COVER, SEAT BACK BLACKCOVER, SEAT BACK BLACK
-
1490119-069UW-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590201-068G0-00 WASHER, PLATEWASHER, PLATE
-
1690119-06837-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
17JU7-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
18JU7-K8478-10-00 WASHER, PLATEWASHER, PLATE
-
19JU7-K7767-00-00 LABEL, WARNING 7LABEL, WARNING 7
-
205UG-K7764-00-00 LABEL, WARNING 4LABEL, WARNING 4
