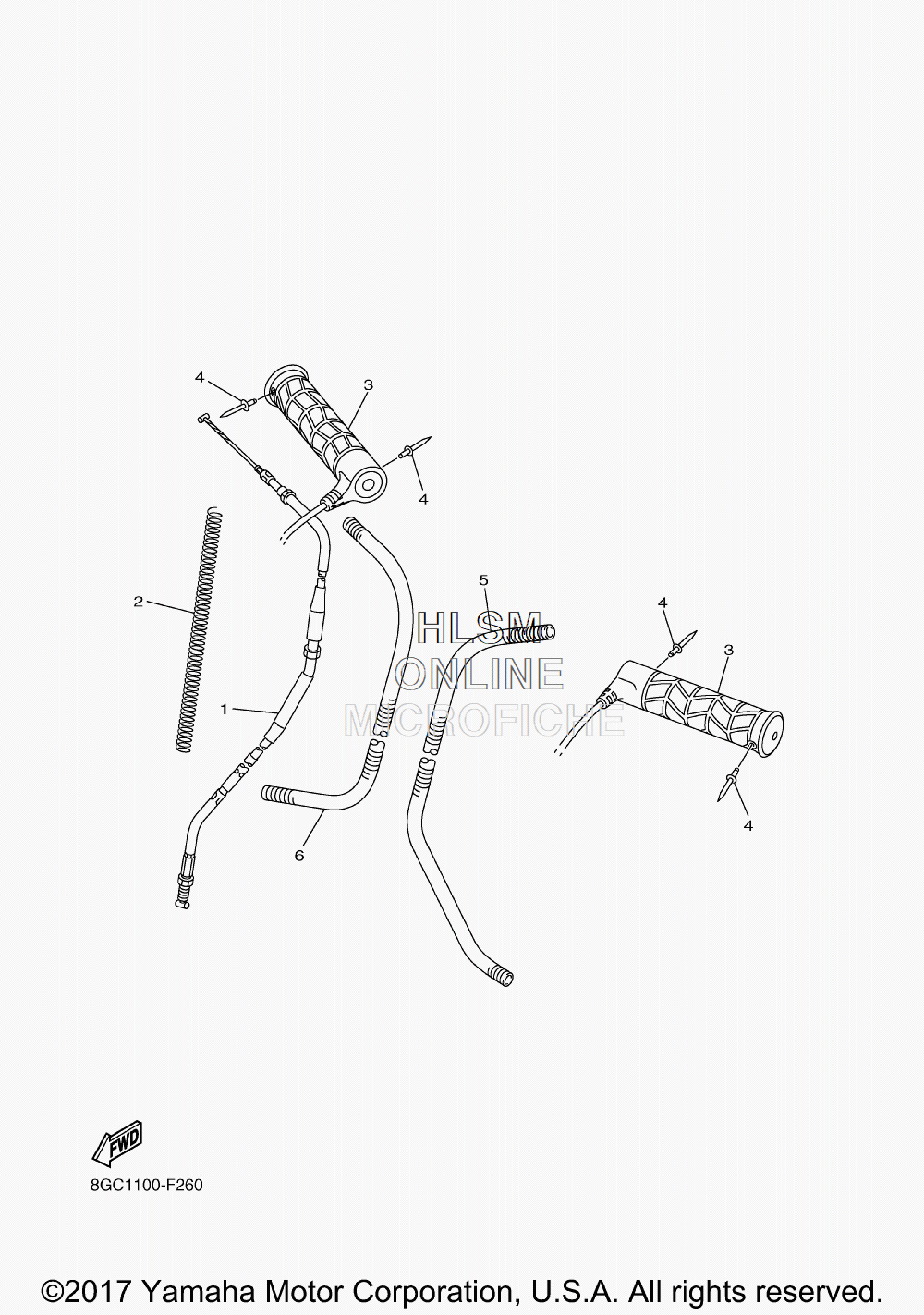

HANDLEBAR - CABLES AND GRIPS для Yamaha VENTURE MP - 2018 года выпуска`
-
№АртикулНазвание
-
18GJ-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
290501-080A6-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
38GC-26240-01-00 GRIP ASSYGRIP ASSY
-
490267-48014-00 RIVET, BLIND (4.8X15.1 BLACK)RIVET, BLIND (4.8X15.1 BLACK)
-
58FP-82351-00-00 TUBE, CORDTUBE, CORD
-
68GC-82351-00-00 TUBE, CORDTUBE, CORD
