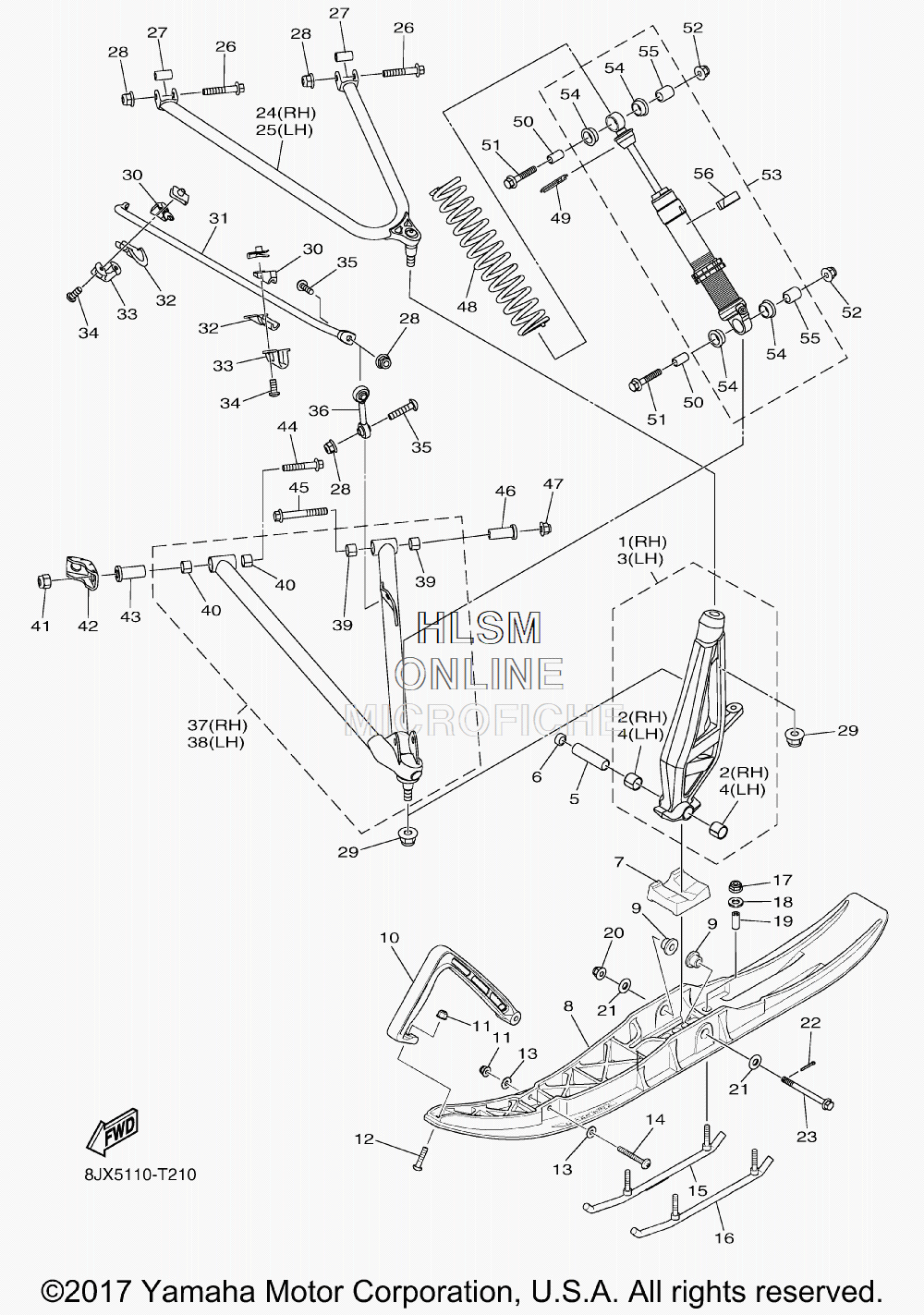

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SRVIPER - 2018 года выпуска`
-
№АртикулНазвание
-
18JP-F3521-10-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
28JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
38JP-F3511-10-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
48JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
58JP-RA731-00-00 COLLAR, 75COLLAR, 75
-
68KN-RA737-10-00 COLLAR, 23COLLAR, 23
-
78KN-F3743-00-00 STOPPER 1STOPPER 1
-
88LH-F3711-00-00 SKI 1SKI 1
-
98JH-F3754-00-00 COLLAR 1COLLAR 1
-
108LH-F3712-10-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
118LH-F3778-00-00 NUTNUT
-
128LH-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
138LH-F3737-00-00 WASHER 1WASHER 1
-
148LH-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
158LH-F3731-00-00 RUNNER 1RUNNER 1
-
168LH-F3732-00-00 RUNNER 2RUNNER 2
-
178JH-F3778-00-00 NUTNUT
-
188JH-F3738-00-00 WASHER 2WASHER 2
-
198KN-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
2095602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
2190201-10043-00 WASHER, PLATEWASHER, PLATE
-
2291401-20020-00 PIN, COTTERPIN, COTTER
-
2390105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
248JP-F355A-30-00 ARM, FRONT UPPER RH (WHITE)ARM, FRONT UPPER RH (WHITE)
-
258JP-F354A-30-00 ARM, FRONT UPPER LH (WHITE)ARM, FRONT UPPER LH (WHITE)
-
268JP-RA190-00-00 BOLT, FLANGE M8X1.25X45BOLT, FLANGE M8X1.25X45
-
278JP-RA720-00-00 COLLAR, 8COLLAR, 8
-
288JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
298JP-RA362-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
308JP-F3867-00-00 HOLDER 2HOLDER 2
-
318JP-F386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
328JP-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
338JP-F386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
348JP-RA235-00-00 SCREW, 1SCREW, 1
-
358JP-RA235-10-00 SCREW, 1SCREW, 1
-
368JP-F386F-00-00 LINK, STABILIZER FRONTLINK, STABILIZER FRONT
-
378JP-F358A-30-00 ARM, FRONT LOWER RH. (WHITE)ARM, FRONT LOWER RH. (WHITE)
-
388JP-F357A-30-00 ARM, FRONT LOWER LH. (WHITE)ARM, FRONT LOWER LH. (WHITE)
-
398JP-RA807-00-00 ...BUSH, 10DU10...BUSH, 10DU10
-
408JP-RA811-00-00 ...BUSH, 1815DU...BUSH, 1815DU
-
418JP-RA361-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
428JP-F3543-00-00 ARM, 1ARM, 1
-
438JP-RA721-10-00 COLLAR, 9COLLAR, 9
-
448JP-RA1A7-00-00 BOLT, FLANGE M12X1.25X76BOLT, FLANGE M12X1.25X76
-
458JP-RA194-20-00 BOLT, FLANGE M10-1.25X250BOLT, FLANGE M10-1.25X250
-
468JP-RA719-00-00 COLLAR, 7COLLAR, 7
-
478JP-RA360-00-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
488LJ-F3351-00-00 SPRINGSPRING
-
498JP-F2214-00-00 GUIDE, SPRING 1GUIDE, SPRING 1
-
508JP-RA724-00-00 COLLAR, 12COLLAR, 12
-
518JP-RA1A3-00-00 BOLT, FLANGE M10X1.25X50BOLT, FLANGE M10X1.25X50
-
528JP-RA360-00-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
538JP-F330E-10-00 DAMPER ASSYDAMPER ASSY
-
548JP-RA804-00-00 ...BUSH, 3...BUSH, 3
-
558JP-RA728-00-00 ...COLLAR, 14.5...COLLAR, 14.5
-
568JP-F2259-70-00 ...LABEL, WARNING...LABEL, WARNING
