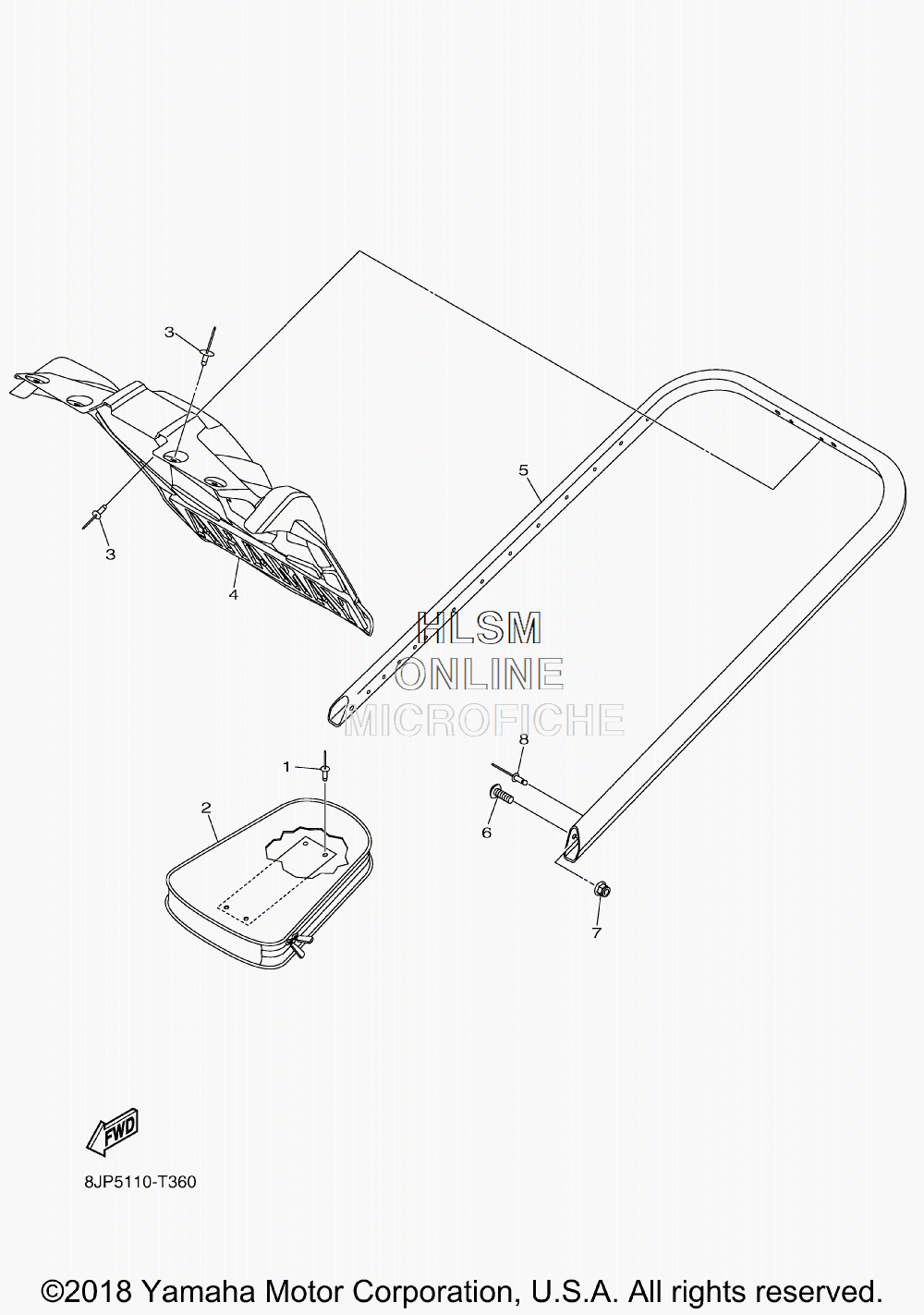

BUMPER - FRONT AND REAR для Yamaha SRVIPER R TX - 2018 года выпуска`
-
№АртикулНазвание
-
18JP-RA520-00-00 RIVET, 11RIVET, 11
-
28JW-F8441-00-00 SADDLE BAG 1SADDLE BAG 1
-
38JP-RA524-00-00 RIVET, 15RIVET, 15
-
48JP-K7595-00-00 FLAPFLAP
-
58JP-K7541-30-00 BUMPER, REAR 1BUMPER, REAR 1
-
68JP-RA260-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
78JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
88JP-RA527-00-00 RIVET, 3/16RIVET, 3/16
