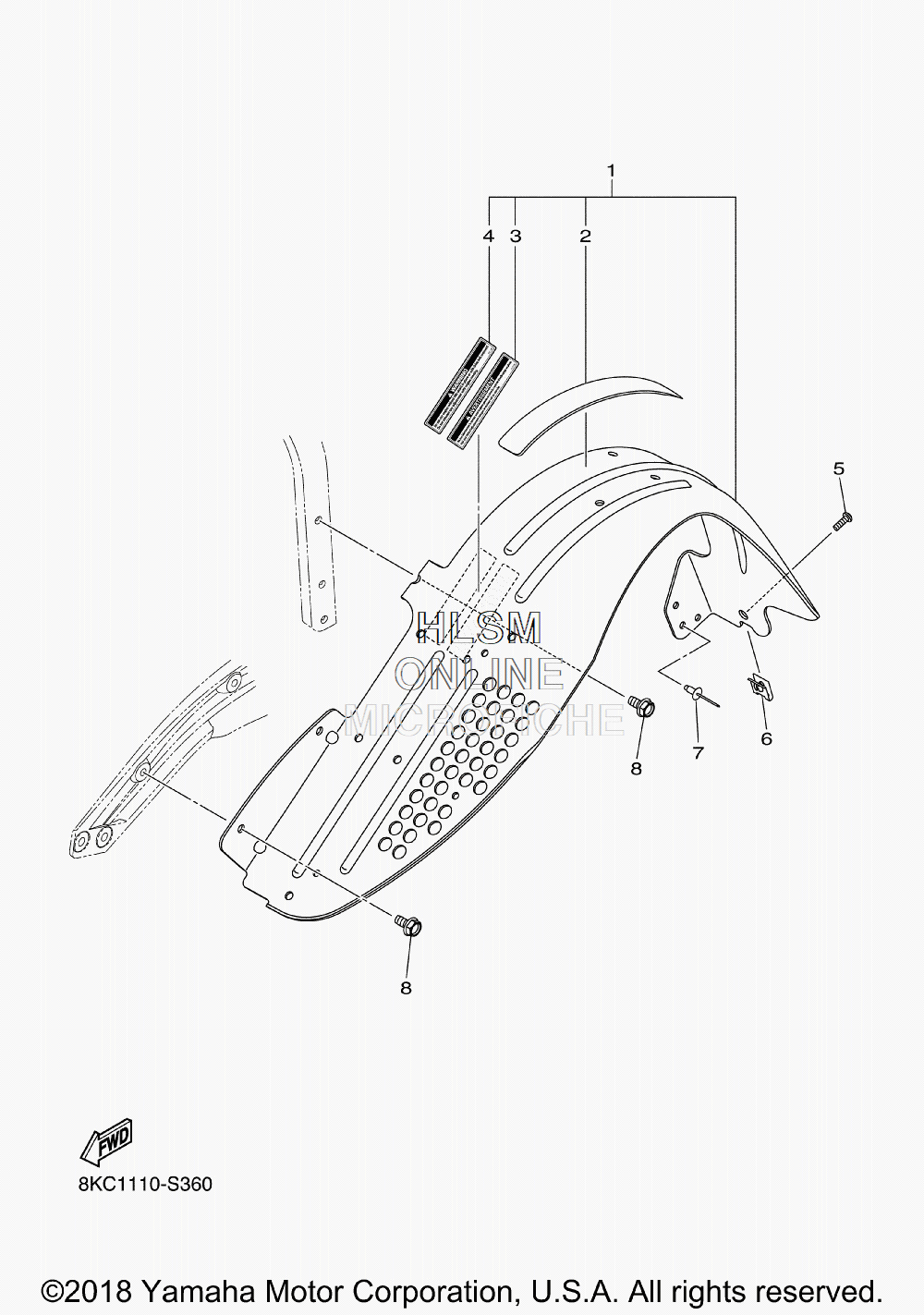

BELT GUARD W/ TOOL BOX для Yamaha SIDEWINDER S TX DX 146 - 2018 года выпуска`
-
№АртикулНазвание
-
18KC-K7310-00-00 DRIVE GUARD ASSY.DRIVE GUARD ASSY.
-
28JP-K7319-00-00 ...DAMPER 1...DAMPER 1
-
38JP-K7763-S0-00 ...LABEL, WARNING 3...LABEL, WARNING 3
-
48JP-K7763-70-00 ...LABEL, WARNING 3...LABEL, WARNING 3
-
58JP-RA202-00-00 SCREW, TAPPING 1/4-20X0.5SCREW, TAPPING 1/4-20X0.5
-
68JP-RA349-00-00 NUT, CLIPNUT, CLIP
-
78JP-RA518-00-00 RIVET, 9RIVET, 9
-
88JP-RA271-00-00 SCREW, M6X1X16SCREW, M6X1X16
