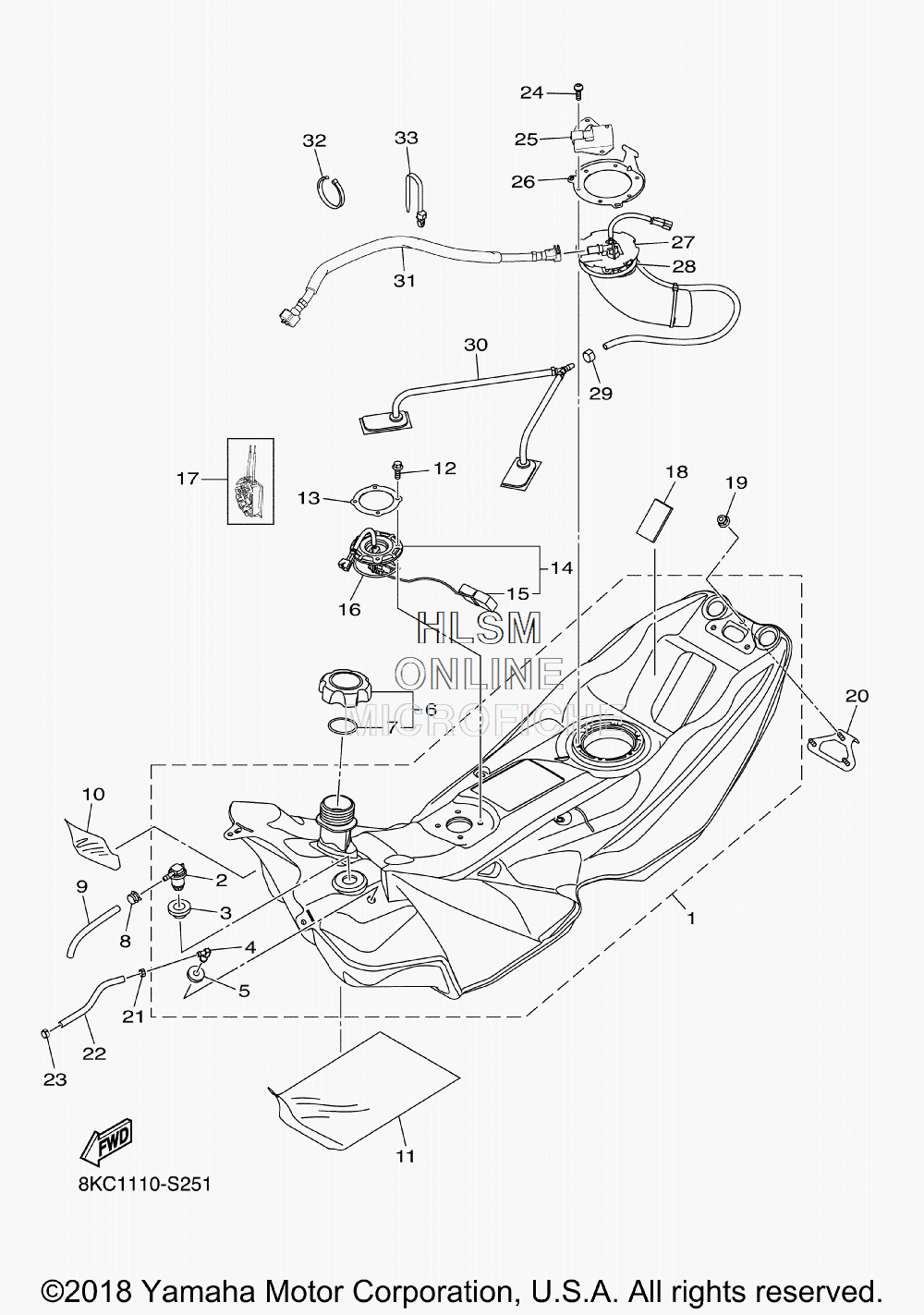

FUEL TANK ASSY для Yamaha SIDEWINDER M TX SE 162 - 2018 года выпуска`
-
№АртикулНазвание
-
18KC-F4100-00-00 FUEL TANK ASSYFUEL TANK ASSY
-
28JP-F4362-00-00 ...VALVE, CHECK 1...VALVE, CHECK 1
-
38JP-E5366-00-00 ...GROMMET...GROMMET
-
48KC-F4376-10-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
58JP-E5367-00-00 ...GROMMET...GROMMET
-
68KC-F4610-00-00 CAP ASSYCAP ASSY
-
78JM-F4641-00-00 ...GASKET, CAP 1...GASKET, CAP 1
-
88JP-RAB12-00-00 CLAMP, 10CLAMP, 10
-
98JP-RA907-00-00 HOSE, 3 (50 FEET)HOSE, 3 (50 FEET)
-
108JP-F416F-01-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
118JP-F476U-01-00 PROTECTOR 1PROTECTOR 1
-
128JP-RA178-00-00 BOLT, FLANGE M5X0.8X16BOLT, FLANGE M5X0.8X16
-
138JP-K8166-00-00 PLATE, RETAINERPLATE, RETAINER
-
148JP-H5752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
158JP-H369N-00-00 ...FLOAT...FLOAT
-
168JP-RAF10-00-00 O-RING, 46.9O-RING, 46.9
-
178LN-H5701-00-00 SENDER ASSYSENDER ASSY
-
188JP-H2121-00-00 PAD, BATTERYPAD, BATTERY
-
198JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
208JP-F134U-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
218JM-RAC02-00-00 CLIP, 3CLIP, 3
-
228JM-RA902-10-00 HOSE, 13 (25 FEET)HOSE, 13 (25 FEET)
-
238JM-RAC01-00-00 CLIP, 2CLIP, 2
-
248JP-RA242-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
258JP-F413K-00-00 GUIDE, NOZZLEGUIDE, NOZZLE
-
268JP-F4491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
278KC-E3907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
288JP-F4486-00-00 O-RINGO-RING
-
298JP-RAB27-00-00 CLAMP, 25CLAMP, 25
-
308JP-F4502-00-00 FILTER, FUELFILTER, FUEL
-
318KC-F4310-00-00 FUEL PIPE ASSYFUEL PIPE ASSY
-
328JM-RAB01-00-00 CLAMP, 2 (8 INCH)CLAMP, 2 (8 INCH)
-
338JM-RAB02-00-00 CLAMP, 3CLAMP, 3
