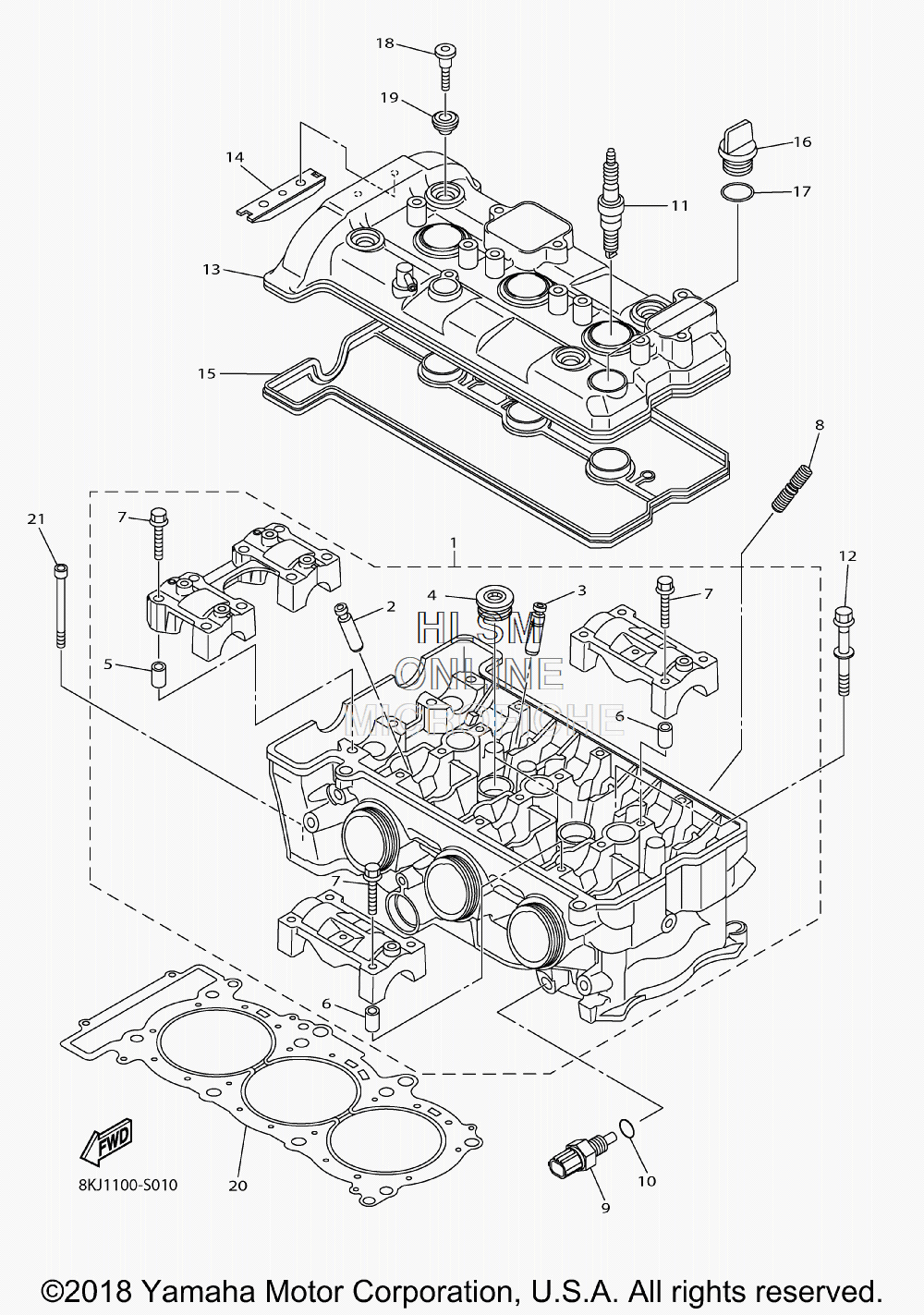

CYLINDER W/ HEAD ASSY для Yamaha SIDEWINDER L TX LE - 2018 года выпуска`
-
№АртикулНазвание
-
18KJ-11102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
22C0-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
38HF-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
490340-27129-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
591808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
691808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
790105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
890116-09011-00 BOLT, STUDBOLT, STUD
-
94P9-83591-00-00 THERMO UNITTHERMO UNIT
-
1090430-10004-00 GASKETGASKET
-
1194701-00411-00 PLUG, SPARK (NGK R CR8E)PLUG, SPARK (NGK R CR8E)
-
1290119-10059-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
138KJ-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
145BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
152HC-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
163Y1-15363-10-00 PLUG, OILPLUG, OIL
-
1793210-19123-00 O-RINGO-RING
-
1890109-066F0-00 BOLTBOLT
-
195VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
208KJ-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2191312-06065-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
