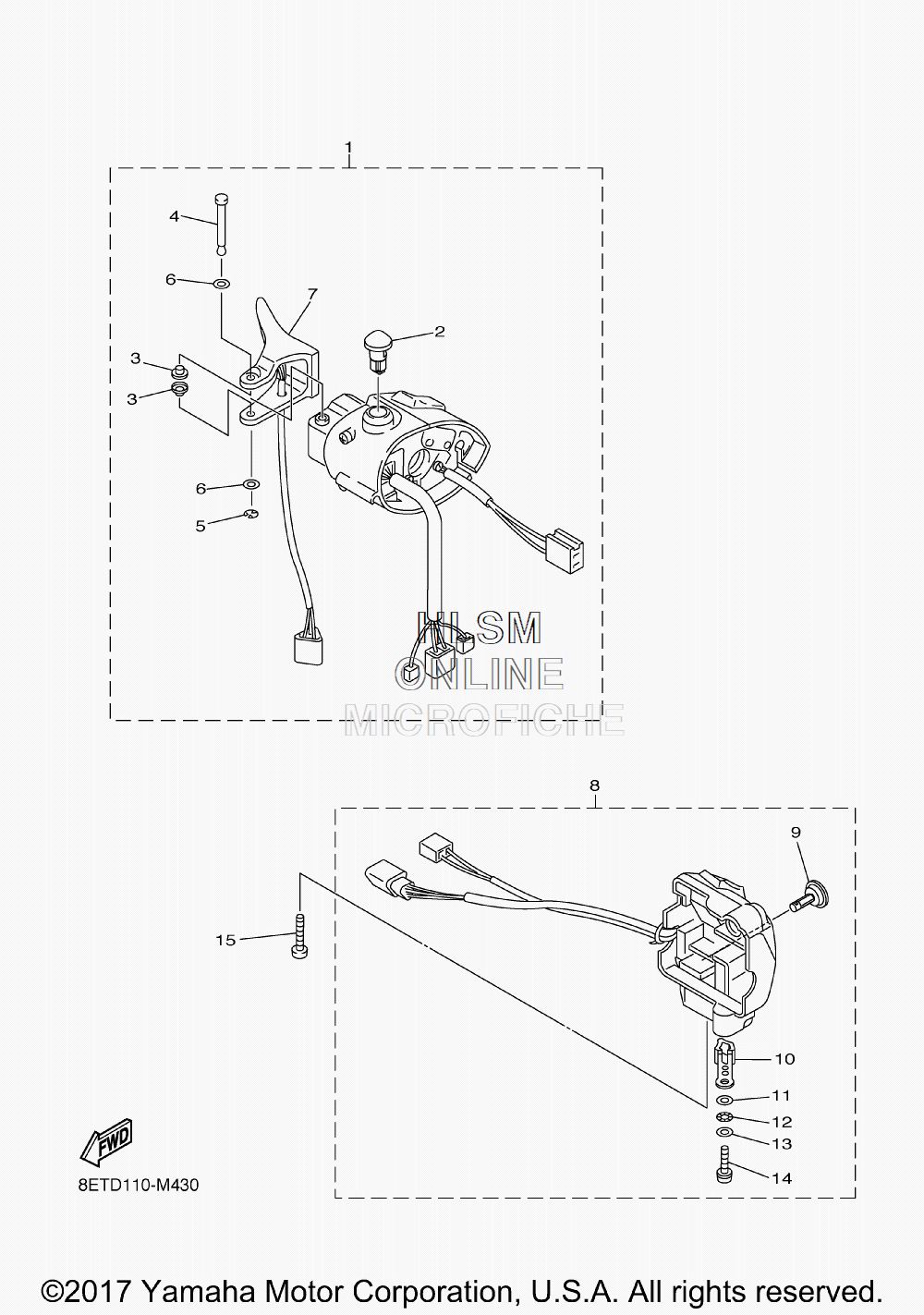

HANDLEBAR - SWITCHES AND LEVERS для Yamaha RS VENTURE - 2018 года выпуска
-
№АртикулНазвание
-
18ES-82720-02-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
28GL-86284-09-00 ...STOP SWITCH...STOP SWITCH
-
385G-83956-00-00 ...CAP 1...CAP 1
-
48R6-8399F-00-00 ...SHAFT...SHAFT
-
599001-04600-00 ...CIRCLIP...CIRCLIP
-
68FP-82558-00-00 ...WASHER...WASHER
-
78FA-82970-01-00 ...THUMB WARMER ASSY...THUMB WARMER ASSY
-
88FA-83973-01-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
98GL-82526-09-00 ...SWITCH, LAMP...SWITCH, LAMP
-
105GH-83941-00-00 ...LEVER, STARTER...LEVER, STARTER
-
118FA-83943-00-00 ...WASHER, STARTER...WASHER, STARTER
-
123L4-83943-00-00 ...WASHER, STARTER...WASHER, STARTER
-
131UY-83909-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
1497607-05112-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
1598502-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
