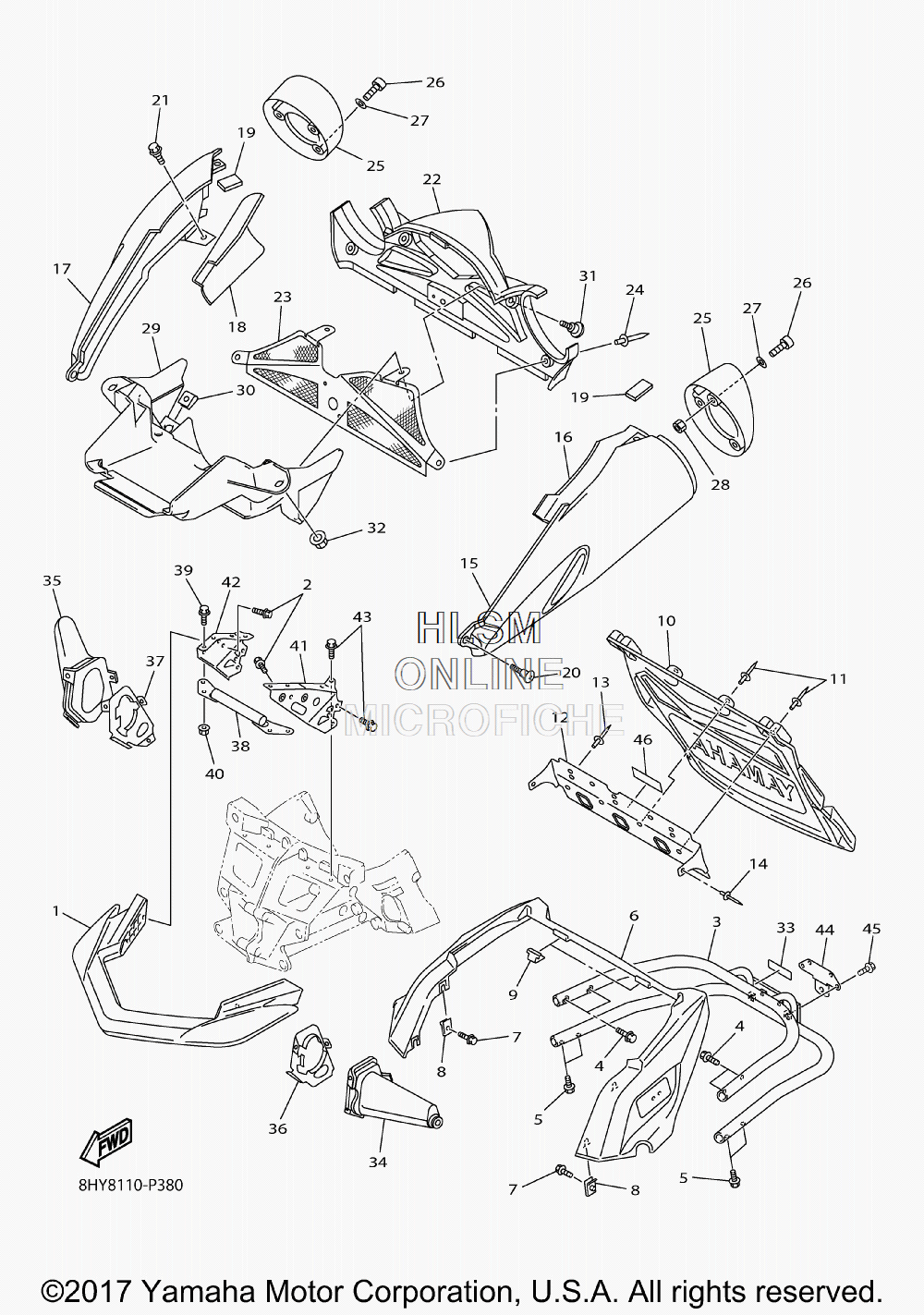

BUMPER - FRONT AND REAR для Yamaha RS VENTURE TF - 2018 года выпуска`
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38ET-77541-01-00 BUMPER, REAR 1BUMPER, REAR 1
-
495822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
595822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
68FA-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
795802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
890183-06053-00 NUT, SPRINGNUT, SPRING
-
98HV-7717H-00-00 TAPE 4TAPE 4
-
108GW-K7595-00-00 FLAPFLAP
-
1190267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
128GW-77596-01-00 STOPPER, FLAPSTOPPER, FLAP
-
1390267-48095-00 RIVET, BLIND (4.8X12.6 SILVER)RIVET, BLIND (4.8X12.6 SILVER)
-
1490267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
158FP-77551-01-P4 PROTECTOR 1 (DPBMC - PURPLISH BLUE)PROTECTOR 1 (DPBMC - PURPLISH BLUE)
-
168HV-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
178FP-77552-01-P4 PROTECTOR 2 (DPBMC - PURPLISH BLUE)PROTECTOR 2 (DPBMC - PURPLISH BLUE)
-
188HV-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
198HV-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
2090154-06009-00 SCREW, BINDINGSCREW, BINDING
-
2190109-06220-00 BOLTBOLT
-
228FP-84516-01-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
238FP-77441-00-00 LOUVER 1LOUVER 1
-
2490267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
258FP-77517-00-00 CAPCAP
-
2691314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2792990-06200-00 WASHER, PLAINWASHER, PLAIN
-
2895380-06600-00 .NUT, HEXAGON.NUT, HEXAGON
-
298FP-2117E-01-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
3090183-06053-00 NUT, SPRINGNUT, SPRING
-
3190109-06220-00 BOLTBOLT
-
3295602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
338GS-2817S-E0-00 LABEL, PULLING LOAD LIMITLABEL, PULLING LOAD LIMIT
-
348FU-2198F-01-00 COVER 1COVER 1
-
358FU-2198J-01-00 COVER 3COVER 3
-
368FU-2195E-01-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
378FU-2195F-01-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
388FP-21979-00-00 BRACKET, FRONT HOODBRACKET, FRONT HOOD
-
3995822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4095702-06500-00 NUT, FLANGENUT, FLANGE
-
418FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
428FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
4395822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
4484R-77592-00-00 BRACKET, HITCH 2BRACKET, HITCH 2
-
4595827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
468JT-77765-E0-00 LABEL, WARNING 5LABEL, WARNING 5
