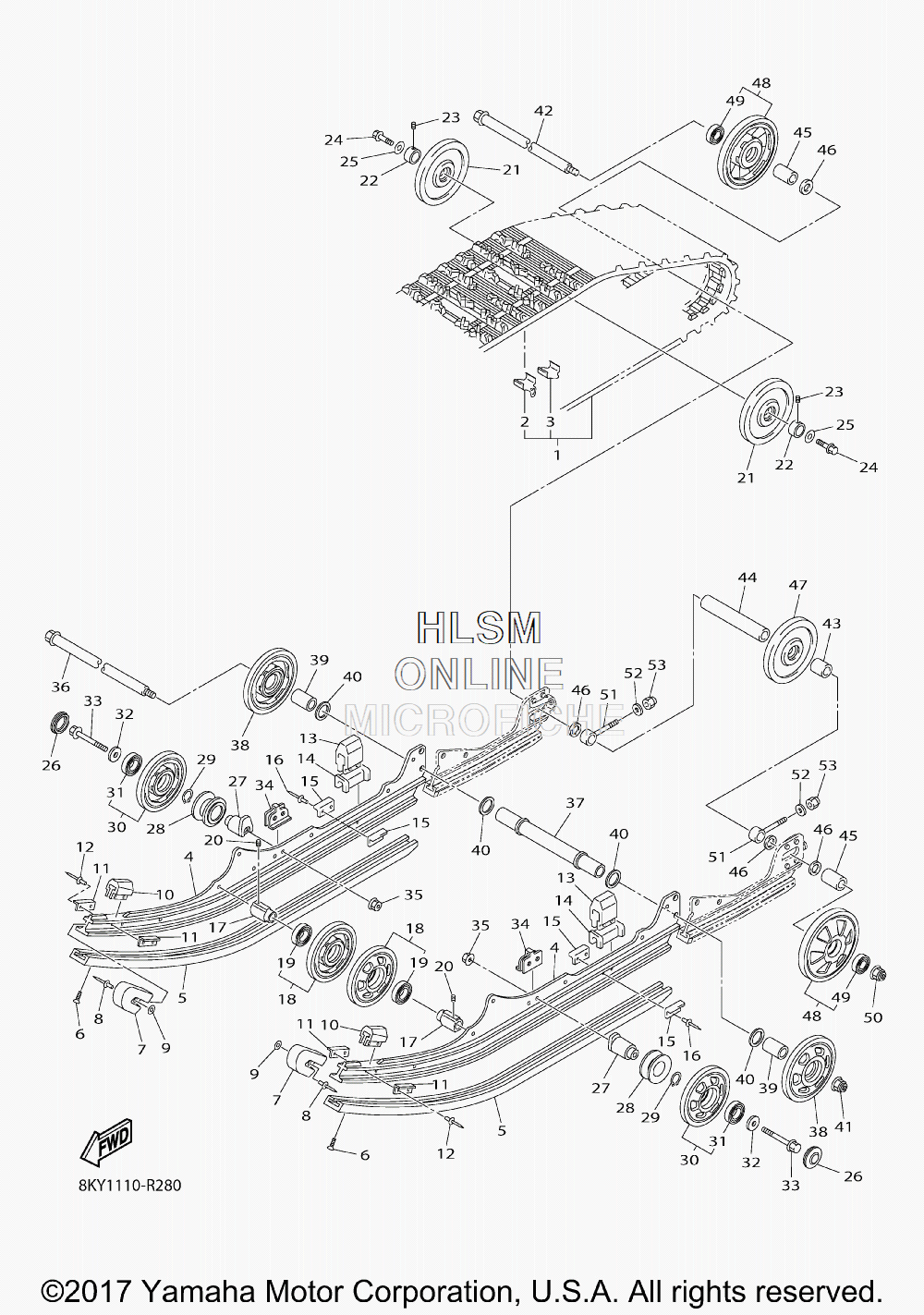

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha RS VENTURE TF BAT - 2018 года выпуска`
-
№АртикулНазвание
-
18FM-47110-20-00 TRACK ASSYTRACK ASSY
-
28HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
38HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
48FM-4741A-01-00 FRAME, SLIDINGFRAME, SLIDING
-
58FM-47421-10-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
690151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
78ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
990201-047R8-00 WASHER, PLATEWASHER, PLATE
-
108ES-47456-00-00 DAMPER 1DAMPER 1
-
118K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
138CM-47457-00-00 DAMPER 2DAMPER 2
-
148CM-47341-00-00 SPACERSPACER
-
158AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1690267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
178ES-47319-01-00 COLLARCOLLAR
-
188HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1993306-00507-00 ...BEARING...BEARING
-
2090113-06039-00 BOLT, SETBOLT, SET
-
218CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
228ES-47365-00-00 COLLAR 1COLLAR 1
-
2390113-06039-00 BOLT, SETBOLT, SET
-
2490109-10030-00 BOLTBOLT
-
2590201-10039-00 WASHER, PLATEWASHER, PLATE
-
268HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
278ES-47419-10-00 BRACKET 7BRACKET 7
-
288ET-47446-00-00 HOOK 1HOOK 1
-
2999009-35400-00 CIRCLIPCIRCLIP
-
308HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3193306-00507-00 ...BEARING...BEARING
-
3290201-10038-00 WASHER, PLATEWASHER, PLATE
-
3395812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
348HP-47384-00-00 WASHERWASHER
-
3595602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
368L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
378FM-47469-00-00 COLLAR 1COLLAR 1
-
388HP-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3990387-20019-00 COLLARCOLLAR
-
4090201-20022-00 WASHER, PLATEWASHER, PLATE
-
4195602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
428L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
4390387-20015-00 COLLARCOLLAR
-
4490387-20016-00 COLLARCOLLAR
-
4590387-20019-00 COLLARCOLLAR
-
4690201-20022-00 WASHER, PLATEWASHER, PLATE
-
478CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
488HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
4993306-00444-00 ...BEARING...BEARING
-
5095602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
518DM-47479-00-00 COLLAR 3COLLAR 3
-
5292902-10600-00 WASHER, PLATEWASHER, PLATE
-
5395702-10300-00 NUT, NYLONNUT, NYLON
