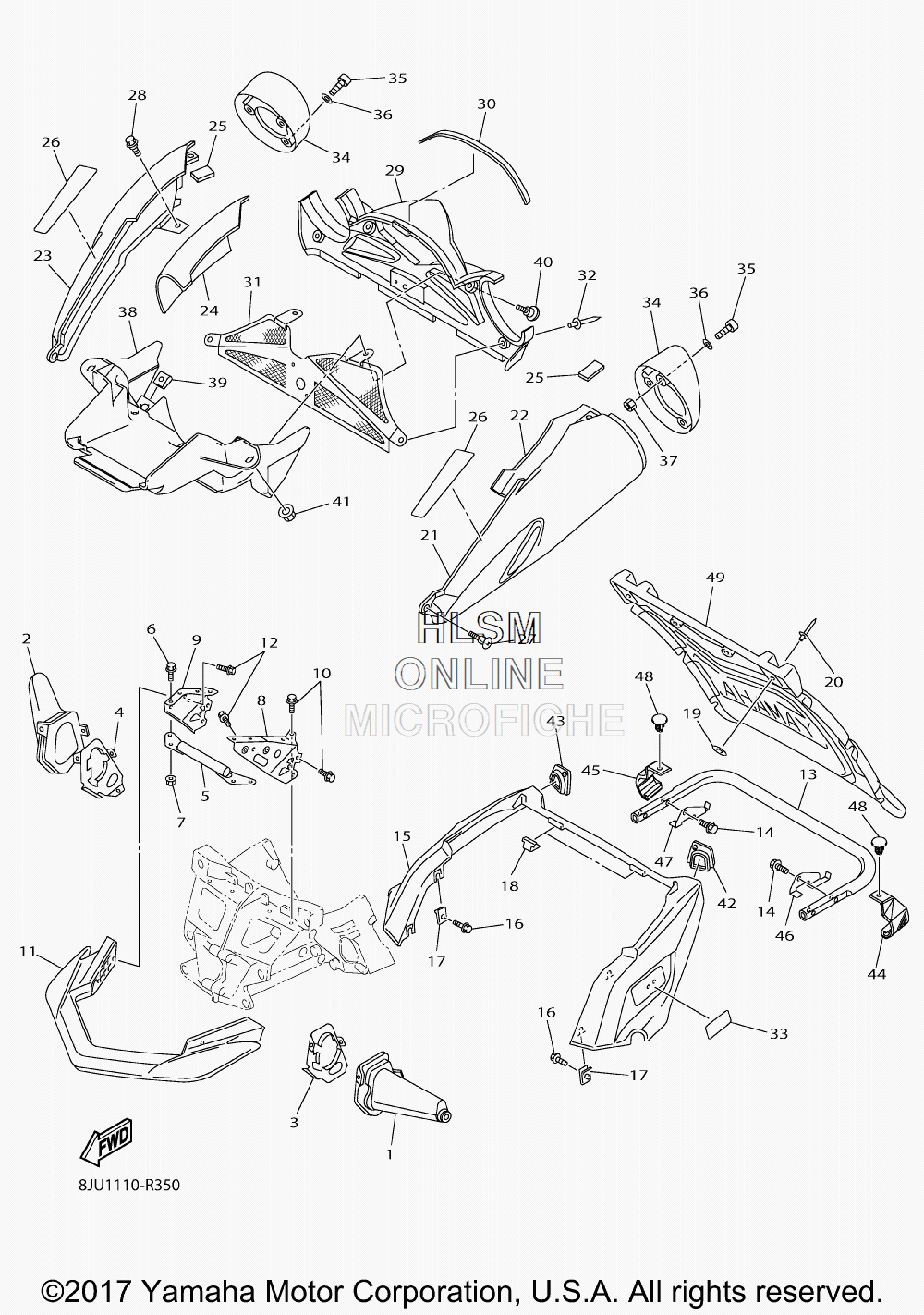

BUMPER - FRONT AND REAR для Yamaha RS VECTOR - 2018 года выпуска`
-
№АртикулНазвание
-
18FU-2198F-01-00 COVER 1COVER 1
-
28FU-2198J-01-00 COVER 3COVER 3
-
38FU-2195E-01-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
48FU-2195F-01-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
58FP-21979-00-00 BRACKET, FRONT HOODBRACKET, FRONT HOOD
-
695822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
795702-06500-00 NUT, FLANGENUT, FLANGE
-
88FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
98FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
1095822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
118FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
1295812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
138FG-77541-01-00 BUMPER, REAR 1BUMPER, REAR 1
-
1495822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
158EP-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
1695802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1790183-06053-00 NUT, SPRINGNUT, SPRING
-
188HV-7717H-00-00 TAPE 4TAPE 4
-
1990201-04325-00 WASHER, PLATEWASHER, PLATE
-
2090267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
218FP-77551-01-P4 PROTECTOR 1 (DPBMC - PURPLISH BLUE)PROTECTOR 1 (DPBMC - PURPLISH BLUE)
-
228HV-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
238FP-77552-01-P4 PROTECTOR 2 (DPBMC - PURPLISH BLUE)PROTECTOR 2 (DPBMC - PURPLISH BLUE)
-
248HV-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
258HV-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
268FR-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
2790154-06009-00 SCREW, BINDINGSCREW, BINDING
-
2890109-06220-00 BOLTBOLT
-
298FP-84516-01-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
308FP-77234-00-00 TRIM 8TRIM 8
-
318FP-77441-00-00 LOUVER 1LOUVER 1
-
3290267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
338FT-7814E-00-00 SEAL, BODY SIDE 1SEAL, BODY SIDE 1
-
348FP-77517-00-00 CAPCAP
-
3591314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3692990-06200-00 WASHER, PLAINWASHER, PLAIN
-
3795380-06600-00 .NUT, HEXAGON.NUT, HEXAGON
-
388FP-2117E-01-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
3990183-06053-00 NUT, SPRINGNUT, SPRING
-
4090109-06220-00 BOLTBOLT
-
4195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
428EP-77431-00-00 GROMMET 1GROMMET 1
-
438EP-77432-00-00 GROMMET 2GROMMET 2
-
448EP-77563-00-00 COVER, 3COVER, 3
-
458EP-77564-00-00 COVER, 4COVER, 4
-
468EP-77554-00-00 PROTECTOR 4PROTECTOR 4
-
478EP-77555-00-00 PROTECTOR 5PROTECTOR 5
-
4890338-08220-00 PLUGPLUG
-
498GT-K7595-00-00 FLAPFLAP
