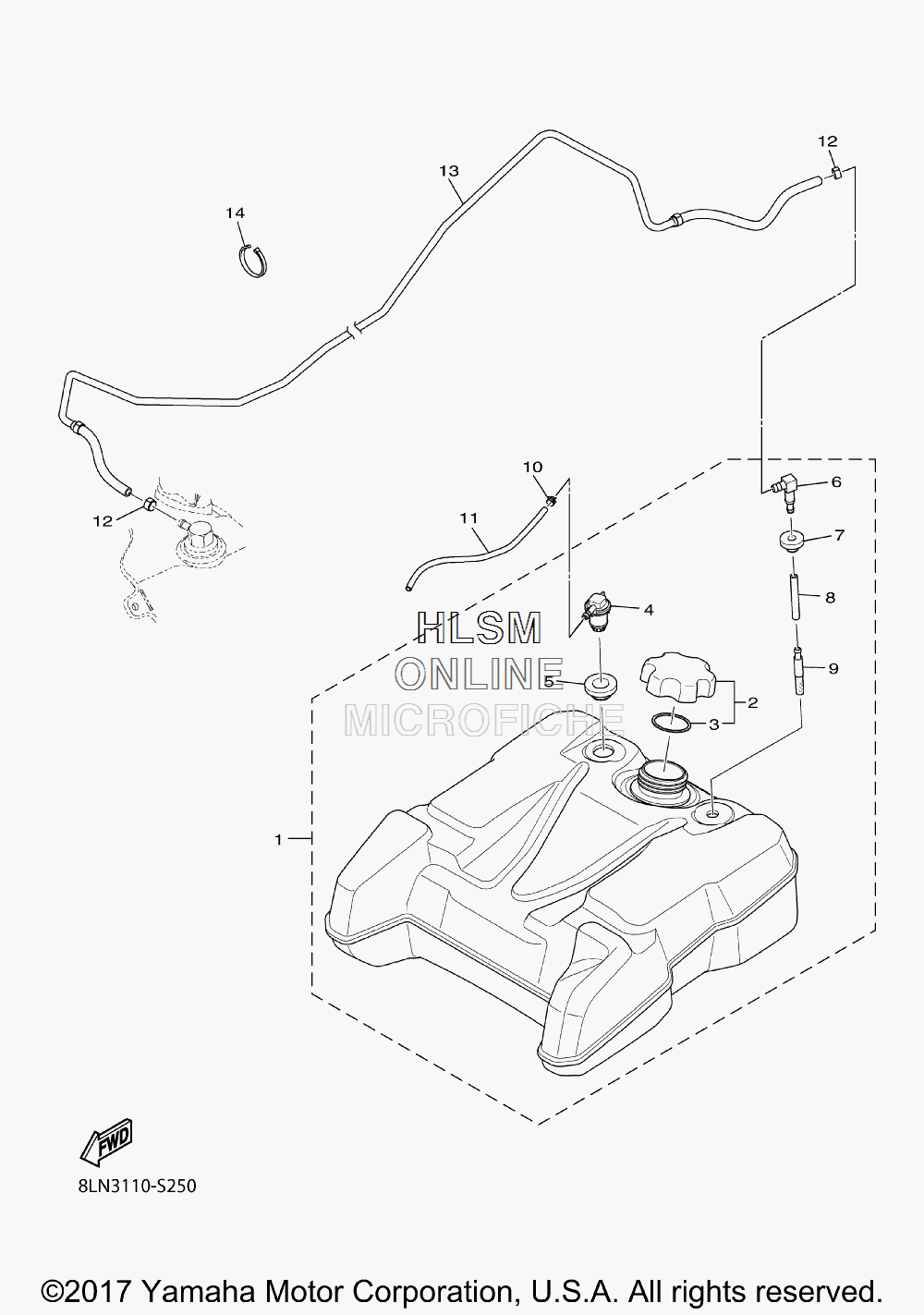

FUEL TANK ASSY 2 для Yamaha SRVIPER S TX 146 DX - 2017 года выпуска`
-
№АртикулНазвание
-
18LN-F4100-10-00 FUEL TANK ASSYFUEL TANK ASSY
-
28JP-F4610-00-00 ...CAP ASSY...CAP ASSY
-
38JM-F4641-00-00 ......GASKET, CAP 1......GASKET, CAP 1
-
48JP-F4362-00-00 ...VALVE, CHECK 1...VALVE, CHECK 1
-
58JP-E5366-00-00 ...GROMMET...GROMMET
-
68LN-F4376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
78JP-E5367-00-00 ...GROMMET...GROMMET
-
88LN-F452B-00-00 ...HOSE, FUEL OUTLET...HOSE, FUEL OUTLET
-
98LN-F4536-00-00 ...STRAINER...STRAINER
-
108JP-RAB12-00-00 CLAMP, 10CLAMP, 10
-
118JP-RA908-00-00 HOSE, 4 (100 FEET) (OPT)HOSE, 4 (100 FEET) (OPT)
-
118JP-RA907-00-00 HOSE, 3 (50 FEET) (OPT)HOSE, 3 (50 FEET) (OPT)
-
128JP-RAB08-00-00 CLAMP, 6CLAMP, 6
-
138LN-F450B-00-00 FUEL HOSE ASSYFUEL HOSE ASSY
-
148JM-RAB01-00-00 CLAMP, 2 (8 INCH)CLAMP, 2 (8 INCH)
