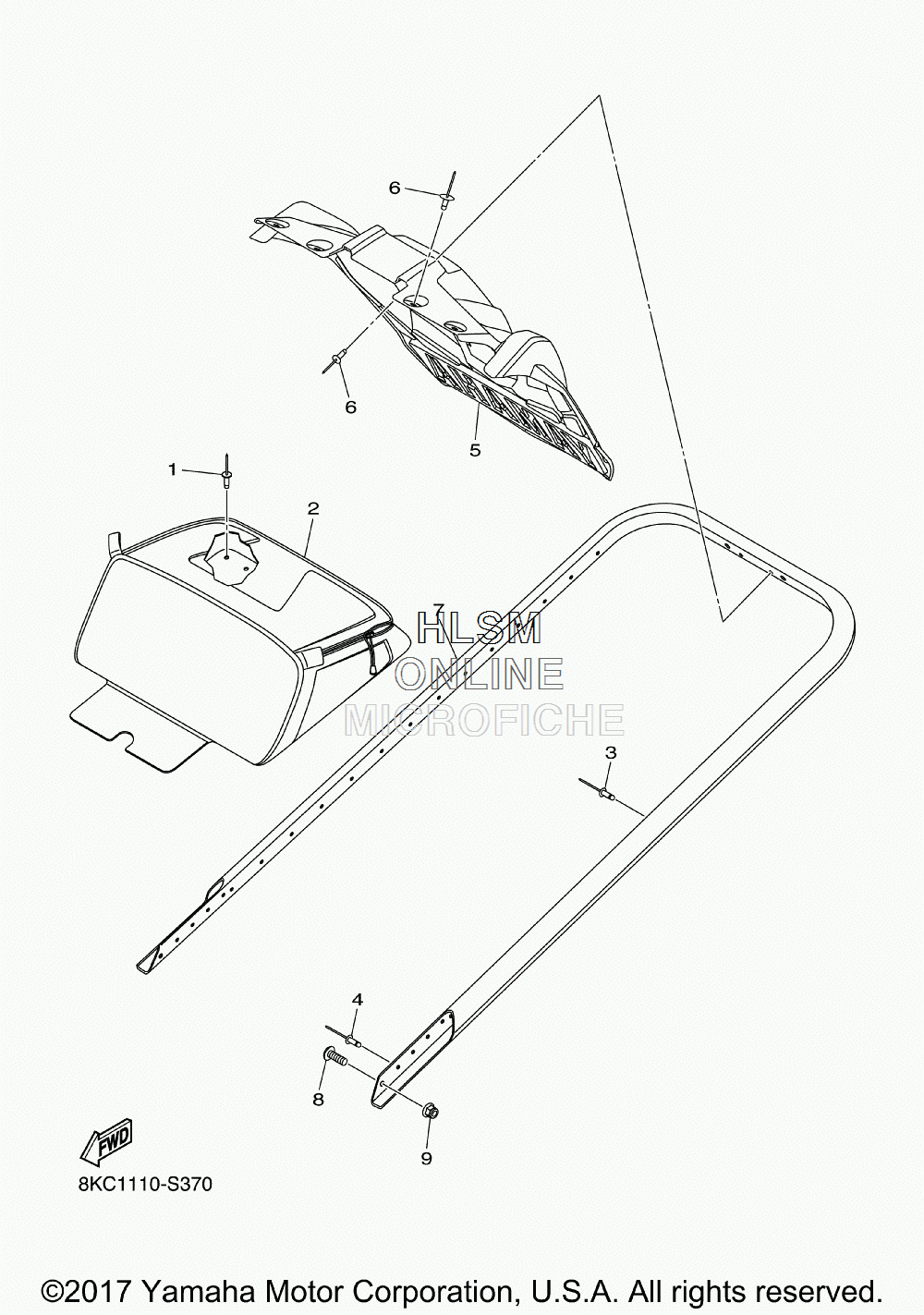

BUMPER - FRONT AND REAR для Yamaha SIDEWINDER X TX 141 SE - 2017 года выпуска`
-
№АртикулНазвание
-
18JP-RA520-20-00 RIVET, 11RIVET, 11
-
28KC-F8441-00-00 SADDLE BAG 1SADDLE BAG 1
-
38JP-RA520-00-00 RIVET, 11RIVET, 11
-
48JP-RA527-00-00 RIVET, 3/16RIVET, 3/16
-
58JP-K7595-00-00 FLAPFLAP
-
68JP-RA524-00-00 RIVET, 15RIVET, 15
-
78JR-K7541-60-00 BUMPER, REAR 1 (DPBSE - PURPLISH BLUE)BUMPER, REAR 1 (DPBSE - PURPLISH BLUE)
-
78JR-K7541-70-00 BUMPER, REAR 1 (MDGR - MEDIUM GRAY)BUMPER, REAR 1 (MDGR - MEDIUM GRAY)
-
88JP-RA260-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
98JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
