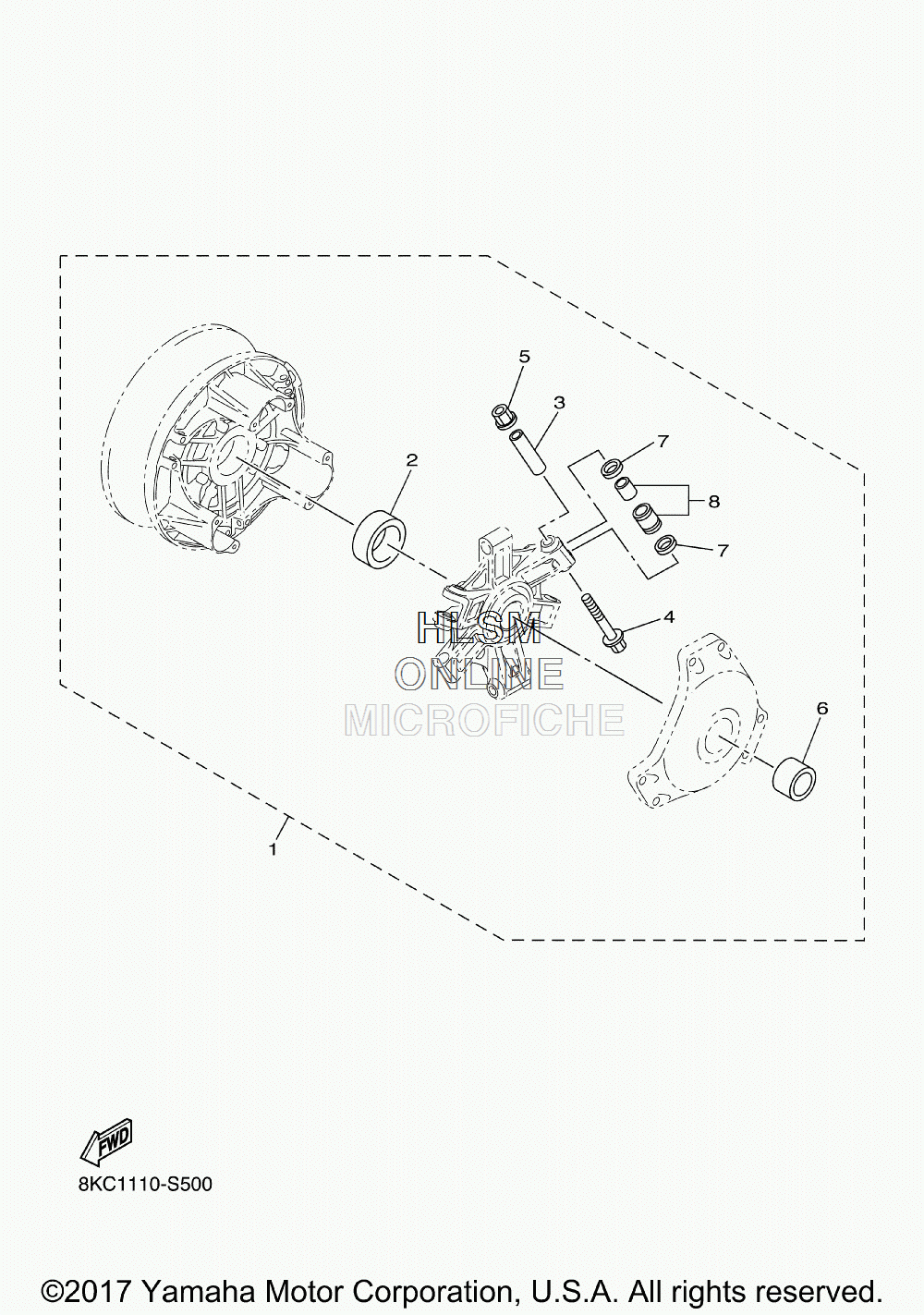

CLUTCH - TUNE-UP KIT (OPTION) для Yamaha SIDEWINDER X TX 137 LE - 2017 года выпуска`
-
№АртикулНазвание
-
18KC-W176H-00-00 CLUTCH TUNE-UP KIT (OPT)CLUTCH TUNE-UP KIT (OPT)
-
290384-41242-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
390387-05059-00 ...COLLAR...COLLAR
-
490105-05030-00 ...BOLT, FLANGE...BOLT, FLANGE
-
595602-05200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
690380-28237-00 ...BUSH, SOLID...BUSH, SOLID
-
790202-09002-00 ...WASHER, PLATE...WASHER, PLATE
-
88FG-17624-00-00 ...ROLLER, COMP...ROLLER, COMP
