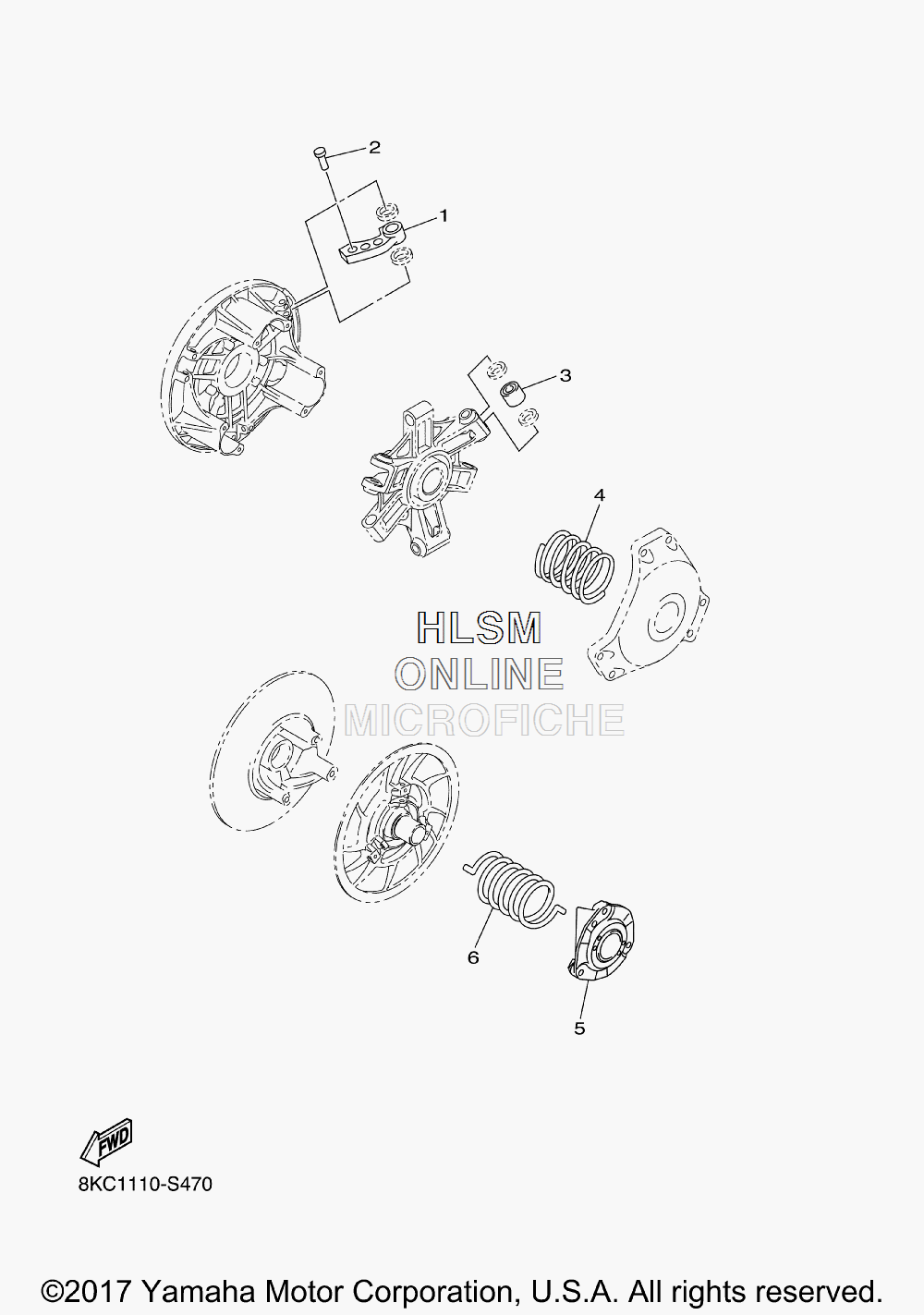

CLUTCH - WEIGHTS AND SPRINGS (OPTION) для Yamaha SIDEWINDER S TX 137 DX - 2017 года выпуска

№

Артикул

Название
1

8KC-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)

8 500 ₽
1

8LR-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)

6 290 ₽
2

90261-06034-00 RIVET, COUNTERSUNK (ST13.9MM) (OPT)

RIVET, COUNTERSUNK (ST13.9MM) (OPT)

250 ₽
2

90261-06019-00 RIVET, COUNTERSUNK (ST13.3MM) (OPT)

RIVET, COUNTERSUNK (ST13.3MM) (OPT)

180 ₽
2

90261-06015-00 RIVET, COUNTERSUNK (ST10.3MM) (OPT)

RIVET, COUNTERSUNK (ST10.3MM) (OPT)

320 ₽
2

90261-06028-00 RIVET, COUNTERSUNK (AL10.3MM) (OPT)

RIVET, COUNTERSUNK (AL10.3MM) (OPT)

160 ₽
2

90261-06033-00 RIVET, COUNTERSUNK (ST17.2MM) (OPT)

RIVET, COUNTERSUNK (ST17.2MM) (OPT)

290 ₽
2

90266-06001-00 RIVET (AL13.3) (OPT)

RIVET (AL13.3) (OPT)

400 ₽
2

90266-06002-00 RIVET (ST13.3) (OPT)

RIVET (ST13.3) (OPT)

540 ₽
2

90269-06006-00 RIVET (ST17.2MM) (OPT)

RIVET (ST17.2MM) (OPT)

290 ₽
3

8FG-17624-30-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)

9 130 ₽
3

8FG-17624-10-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)

7 550 ₽
3

8FG-17624-40-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)

5 660 ₽
3

8FG-17624-20-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)

5 660 ₽
3

8FG-17624-00-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)

4 250 ₽
4

90501-601L8-00 SPRING, COMPRESSION (OPT) (OR-P-OR)

SPRING, COMPRESSION (OPT) (OR-P-OR)

4 250 ₽
4

90501-601L7-00 SPRING, COMPRESSION (OPT) (P-P-P)

SPRING, COMPRESSION (OPT) (P-P-P)

4 250 ₽
4

90501-583L5-00 SPRING, COMPRESSION (OPT) (WH-P-WH)

SPRING, COMPRESSION (OPT) (WH-P-WH)

4 250 ₽
4

90501-583L4-00 SPRING, COMPRESSION (OPT) (WH-SL-WH)

SPRING, COMPRESSION (OPT) (WH-SL-WH)

5 030 ₽
4

90501-583L1-00 SPRING, COMPRESSION (OPT) (WH-WH-WH)

SPRING, COMPRESSION (OPT) (WH-WH-WH)

4 250 ₽
4

90501-583L0-00 SPRING, COMPRESSION (OPT) (BL-WH-BL)

SPRING, COMPRESSION (OPT) (BL-WH-BL)

4 250 ₽
4

90501-582L7-00 SPRING, COMPRESSION (OPT) (Y-GR-Y)

SPRING, COMPRESSION (OPT) (Y-GR-Y)

3 300 ₽
4

90501-582L6-00 SPRING, COMPRESSION (OPT) (WH-GR-WH)

SPRING, COMPRESSION (OPT) (WH-GR-WH)

3 770 ₽
4

90501-582L2-00 SPRING, COMPRESSION (OPT) (GR-SL-GR)

SPRING, COMPRESSION (OPT) (GR-SL-GR)

3 300 ₽
4

90501-582L1-00 SPRING, COMPRESSION (OPT) (Y-SL-Y)

SPRING, COMPRESSION (OPT) (Y-SL-Y)

3 300 ₽
4

90501-581L6-00 SPRING, COMPRESSION (OPT) (GR-P-GR)

SPRING, COMPRESSION (OPT) (GR-P-GR)

3 300 ₽
4

90501-581L5-00 SPRING, COMPRESSION (OPT) (Y-P-Y)

SPRING, COMPRESSION (OPT) (Y-P-Y)

3 300 ₽
4

90501-552L5-00 SPRING, COMPRESSION (OPT) (BL-GR-BL)

SPRING, COMPRESSION (OPT) (BL-GR-BL)

3 770 ₽
4

90501-551L3-00 SPRING, COMPRESSION (OPT) (BL-P-BL)

SPRING, COMPRESSION (OPT) (BL-P-BL)

3 770 ₽
4

90501-602L3-00 SPRING, COMPRESSION (OPT) (P-SL-P)

SPRING, COMPRESSION (OPT) (P-SL-P)

4 250 ₽
4

90501-550A7-00 SPRING, COMPRESSION (OPT) (GO-R-GO)

SPRING, COMPRESSION (OPT) (GO-R-GO)

3 770 ₽
4

90501-570A0-00 SPRING, COMPRESSION (OPT) (BL-SL-BL)

SPRING, COMPRESSION (OPT) (BL-SL-BL)

2 990 ₽
4

90501-580A2-00 SPRING, COMPRESSION (OPT) (BL-BR-BL)

SPRING, COMPRESSION (OPT) (BL-BR-BL)

7 550 ₽
4

90501-600A5-00 SPRING, COMPRESSION (OPT) (OR-Y-OR)

SPRING, COMPRESSION (OPT) (OR-Y-OR)

6 920 ₽
4

90501-600A4-00 SPRING, COMPRESSION (OPT) (P-Y-P)

SPRING, COMPRESSION (OPT) (P-Y-P)

6 920 ₽
4

90501-580A4-00 SPRING, COMPRESSION (OPT) (GR-Y-GR)

SPRING, COMPRESSION (OPT) (GR-Y-GR)

6 920 ₽
4

90501-580A3-00 SPRING, COMPRESSION (OPT) (Y-Y-Y)

SPRING, COMPRESSION (OPT) (Y-Y-Y)

4 400 ₽
4

90501-550A6-00 SPRING, COMPRESSION (OPT) (WH-Y-WH)

SPRING, COMPRESSION (OPT) (WH-Y-WH)

6 920 ₽
4

90501-550A5-00 SPRING, COMPRESSION (OPT) (BL-Y-BL)

SPRING, COMPRESSION (OPT) (BL-Y-BL)

8 340 ₽
4

90501-550A3-00 SPRING, COMPRESSION (OPT) (WH-BL-WH)

SPRING, COMPRESSION (OPT) (WH-BL-WH)

2 670 ₽
4

90501-600A1-00 SPRING, COMPRESSION (OPT) (P-BL-P)

SPRING, COMPRESSION (OPT) (P-BL-P)

3 770 ₽
4

90501-602L8-00 SPRING, COMPRESSION (OPT) (GR-GR-GR)

SPRING, COMPRESSION (OPT) (GR-GR-GR)

4 250 ₽
4

90501-602L9-00 SPRING, COMPRESSION (OPT) (P-GR-P)

SPRING, COMPRESSION (OPT) (P-GR-P)

4 250 ₽
4

90501-603L2-00 SPRING, COMPRESSION (OPT) (Y-WH-Y)

SPRING, COMPRESSION (OPT) (Y-WH-Y)

4 250 ₽
4

90501-603L3-00 SPRING, COMPRESSION (OPT) (GR-WH-GR)

SPRING, COMPRESSION (OPT) (GR-WH-GR)

3 620 ₽
4

90501-624L8-00 SPRING, COMPRESSION (OPT) (OR-SL-OR)

SPRING, COMPRESSION (OPT) (OR-SL-OR)

4 400 ₽
4

90501-550A2-00 SPRING, COMPRESSION (OPT) (BL-BL-BL)

SPRING, COMPRESSION (OPT) (BL-BL-BL)

3 300 ₽
4

90501-580A1-00 SPRING, COMPRESSION (OPT) (Y-BL-Y)

SPRING, COMPRESSION (OPT) (Y-BL-Y)

3 770 ₽
5

8KC-17604-90-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)

8 340 ₽
5

8KC-17604-50-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)

8 340 ₽
5

8KC-17604-70-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)

8 340 ₽
6

90508-60007-00 SPRING, TORSION (OPT) (WHITE)

SPRING, TORSION (OPT) (WHITE)

5 030 ₽
6

90508-60012-00 SPRING, TORSION (OPT) (PINK)

SPRING, TORSION (OPT) (PINK)

3 300 ₽
6

90508-500B1-00 SPRING, TORSION (OPT) (BROWN)

SPRING, TORSION (OPT) (BROWN)

2 200 ₽
6

90508-556A2-00 SPRING, TORSION (OPT) (GREEN)

SPRING, TORSION (OPT) (GREEN)

3 300 ₽
6

90508-536A9-00 SPRING, TORSION (OPT) (RED)

SPRING, TORSION (OPT) (RED)

2 200 ₽
6

90508-60020-00 SPRING, TORSION (OPT) (YELLOW)

SPRING, TORSION (OPT) (YELLOW)

3 460 ₽
6

90508-60016-00 SPRING, TORSION (OPT) (WH-WH)

SPRING, TORSION (OPT) (WH-WH)

3 620 ₽
6

90508-556A7-00 SPRING, TORSION (OPT) (SILVER)

SPRING, TORSION (OPT) (SILVER)

4 400 ₽
6

90508-60018-00 SPRING, TORSION (OPT) (P-P)

SPRING, TORSION (OPT) (P-P)

3 620 ₽
