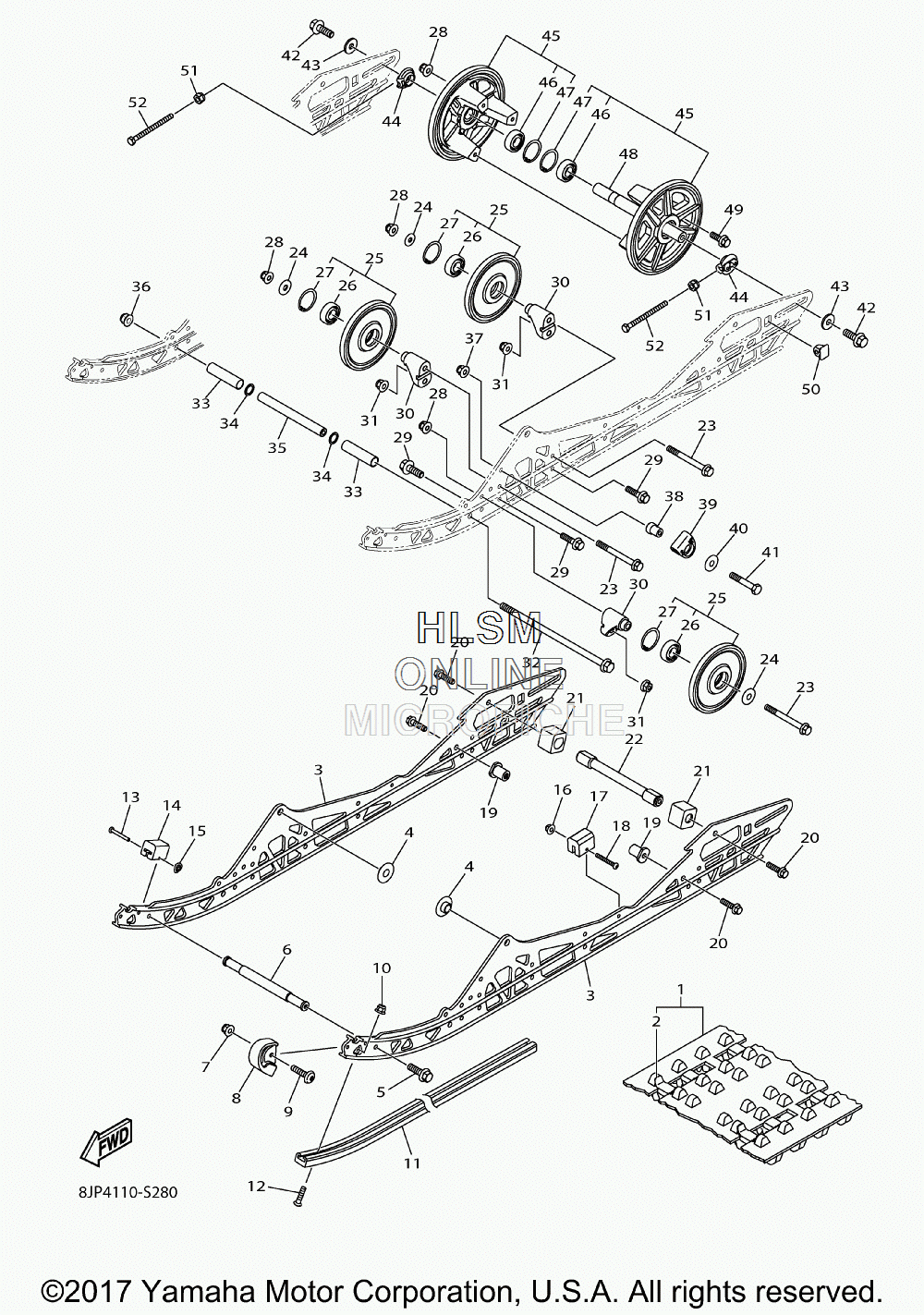

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha SIDEWINDER R TX SE - 2017 года выпуска`
-
№АртикулНазвание
-
18JP-G7110-10-00 TRACK ASSYTRACK ASSY
-
28JP-G7113-00-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38JP-G741A-60-00 FRAME, SLIDING (DPBSE - PURPLISH BLUE)FRAME, SLIDING (DPBSE - PURPLISH BLUE)
-
38JP-G741A-80-00 FRAME, SLIDING (MDGR - MEDIUM GRAY)FRAME, SLIDING (MDGR - MEDIUM GRAY)
-
48JP-RA725-00-00 COLLAR, 13COLLAR, 13
-
58JP-RA186-00-00 BOLT, FLANGE M8X1.25X25BOLT, FLANGE M8X1.25X25
-
68JP-G7485-00-00 SHAFT 3SHAFT 3
-
78JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
88JP-G7422-10-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
98JP-RA263-00-00 SCREW, M6X1.0X25SCREW, M6X1.0X25
-
108JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
118JP-G7421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
128JM-RA206-00-00 SCREW, 1/4-20X1.125SCREW, 1/4-20X1.125
-
138JM-RAY02-00-00 PIN, 2PIN, 2
-
148JM-G7456-00-00 DAMPER 1DAMPER 1
-
158JP-RA346-00-00 NUT, 0.125NUT, 0.125
-
168JP-RA363-00-00 NUT, FLANGE LOCKING M5X0.8NUT, FLANGE LOCKING M5X0.8
-
178JP-G7457-00-00 DAMPER 2DAMPER 2
-
188JP-RA249-00-00 SCREW, M5X0.8X40SCREW, M5X0.8X40
-
198JP-G7368-00-00 NUTNUT
-
208JP-RA199-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
218JP-G745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
228JP-G7337-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
238JP-RA1B5-00-00 BOLT, FLANGE 1BOLT, FLANGE 1
-
248JP-RA466-00-00 WASHER, 9WASHER, 9
-
258JP-G7310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
268JM-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
278JM-RAH01-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
288JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
298JP-RA1B6-00-00 BOLT, FLANGE 2BOLT, FLANGE 2
-
308JP-G7419-10-00 BRACKET 7BRACKET 7
-
318JP-RA379-00-00 NUT, LOCK 1NUT, LOCK 1
-
328JP-RA194-00-00 BOLT, FLANGE M10-1.25X250BOLT, FLANGE M10-1.25X250
-
338JP-RA723-00-00 COLLAR, 11COLLAR, 11
-
348JP-RA437-00-00 WASHER, 0.890X1.19X0.060WASHER, 0.890X1.19X0.060
-
358JP-RA729-00-00 COLLAR, 22.2COLLAR, 22.2
-
368JP-RA378-01-00 NUT, LOCKNUT, LOCK
-
378JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
388JP-G7319-00-00 COLLARCOLLAR
-
398JP-G7446-00-00 HOOK 1HOOK 1
-
408JP-RA452-00-00 WASHER, 9.12X25.40X2.30WASHER, 9.12X25.40X2.30
-
418JP-RA1B7-00-00 BOLT, HEXAGONBOLT, HEXAGON
-
428JP-RA199-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
438JP-RA453-00-00 WASHER, M10X29WASHER, M10X29
-
448JP-G7534-00-00 WHEEL, GUIDE 1WHEEL, GUIDE 1
-
458JP-G7550-01-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
468JM-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
478JM-RAH01-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
488JP-G7521-00-00 AXLE, REARAXLE, REAR
-
498JP-RA181-00-00 BOLT, FLANGE M6X1.0X20BOLT, FLANGE M6X1.0X20
-
508JP-G7463-00-00 BRACKET 5BRACKET 5
-
518JP-RA372-00-00 NUT, HEX. LOCKING M8X1.25NUT, HEX. LOCKING M8X1.25
-
528JP-RA1B1-00-00 BOLT, HEX. M8X1.25X100BOLT, HEX. M8X1.25X100
