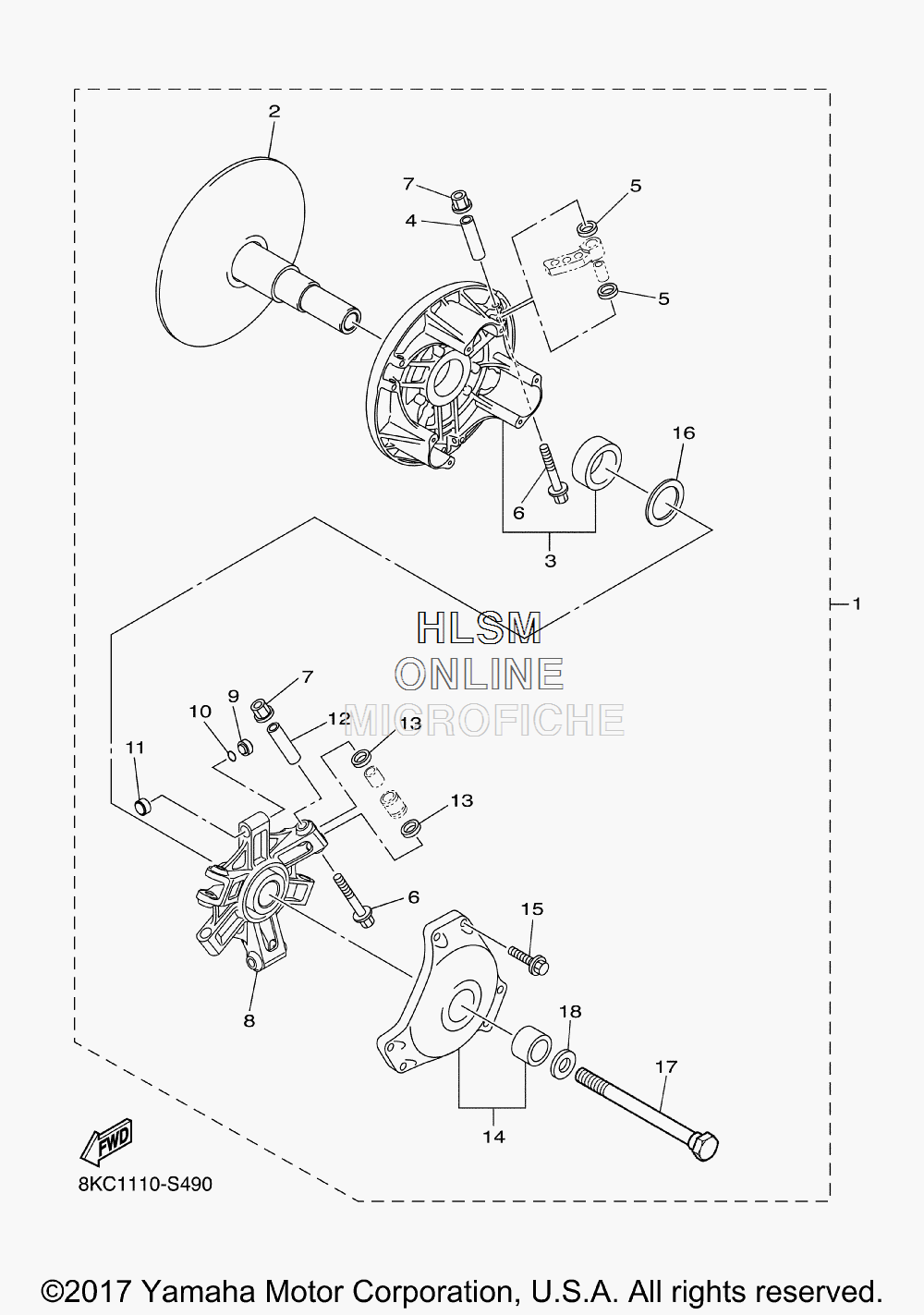

CLUTCH - REPAIR KIT (OPTION) для Yamaha SIDEWINDER L TX SE - 2017 года выпуска`
-
№АртикулНазвание
-
18KC-W176G-00-00 CLUTCH REPAIR KIT (OPT)CLUTCH REPAIR KIT (OPT)
-
28KC-17610-00-00 ...PRIMARY FIXED SHEAVE COMP....PRIMARY FIXED SHEAVE COMP.
-
38KC-17620-00-00 ...PRIMARY SLIDING SHEAVE COMP....PRIMARY SLIDING SHEAVE COMP.
-
490387-05060-00 ...COLLAR...COLLAR
-
590202-08005-00 ...WASHER, PLATE...WASHER, PLATE
-
690105-05030-00 ...BOLT, FLANGE...BOLT, FLANGE
-
795602-05200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
88KC-17627-00-00 ...SPIDER...SPIDER
-
98KC-17653-00-00 ...SLIDER...SLIDER
-
1093210-07100-00 ...O-RING...O-RING
-
118KC-17653-10-00 ...SLIDER...SLIDER
-
1290387-05059-00 ...COLLAR...COLLAR
-
1390202-09002-00 ...WASHER, PLATE...WASHER, PLATE
-
148DF-17630-00-00 ...PRIMARY SHEAVE CAP COMP....PRIMARY SHEAVE CAP COMP.
-
1595812-06030-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1690201-33016-00 ...WASHER, PLATE...WASHER, PLATE
-
178V0-17647-10-00 ...BOLT (L=156.5MM)...BOLT (L=156.5MM)
-
1892907-16100-00 ...WASHER...WASHER
