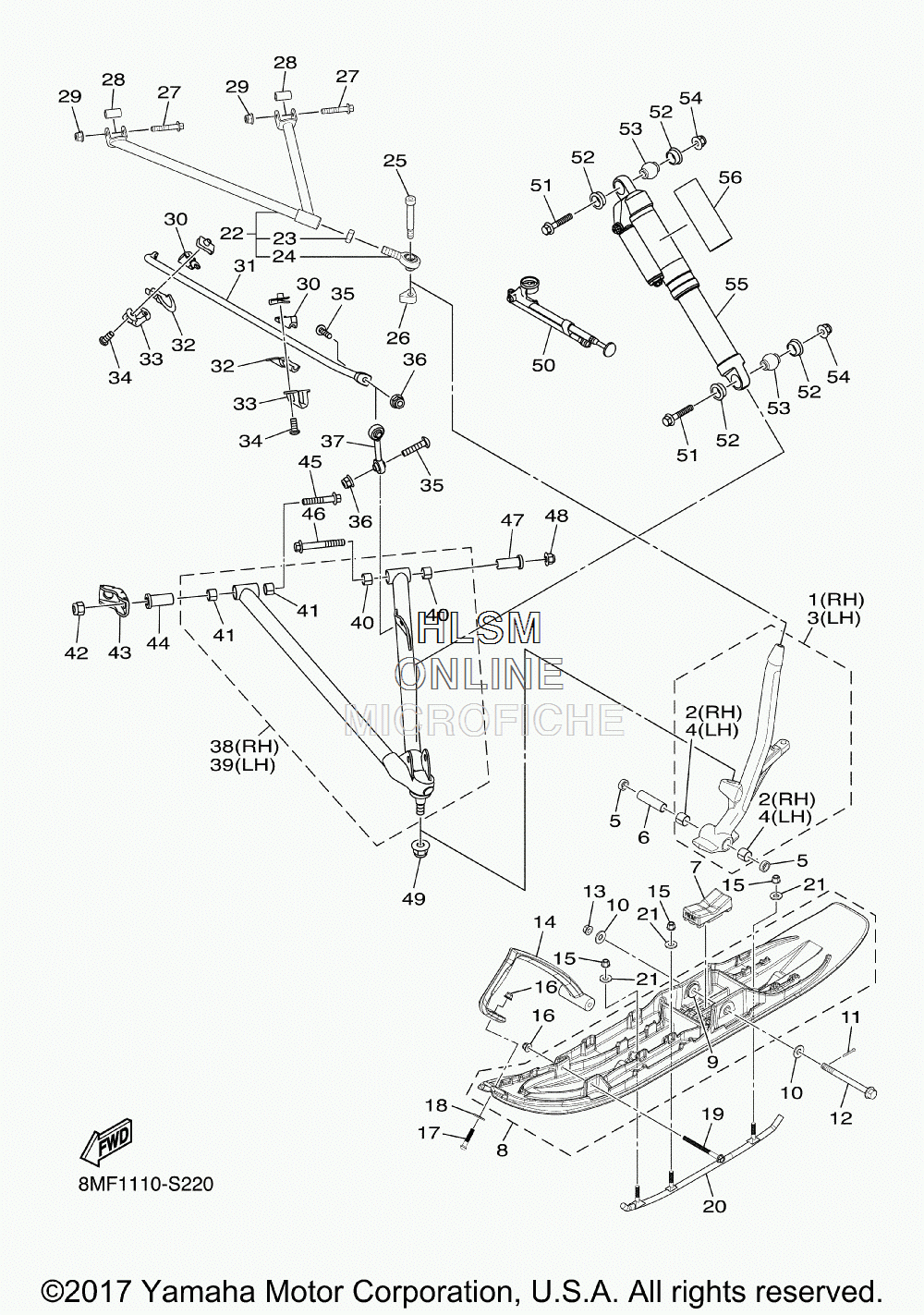

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SIDEWINDER B TX LE - 2017 года выпуска
-
№АртикулНазвание
-
18KU-F3521-00-00 KNUCKLE, STEERING 2 (DPBSE - PURPLISH BLUE)KNUCKLE, STEERING 2 (DPBSE - PURPLISH BLUE)
-
18KU-F3521-20-00 KNUCKLE, STEERING 2 (VRC1 - VIVID RED)KNUCKLE, STEERING 2 (VRC1 - VIVID RED)
-
28JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
38KU-F3511-00-00 KNUCKLE, STEERING 1 (DPBSE - PURPLISH BLUE)KNUCKLE, STEERING 1 (DPBSE - PURPLISH BLUE)
-
38KU-F3511-20-00 KNUCKLE, STEERING 1 (VRC1 - VIVID RED)KNUCKLE, STEERING 1 (VRC1 - VIVID RED)
-
48JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
58JP-RA718-00-00 COLLAR, 6COLLAR, 6
-
68JP-RA731-00-00 COLLAR, 75COLLAR, 75
-
78KC-F3743-00-00 STOPPER 1STOPPER 1
-
88KC-F3710-00-00 SKI COMP. 1SKI COMP. 1
-
98EX-F3754-00-00 ...COLLAR 1...COLLAR 1
-
1090201-10043-00 WASHER, PLATEWASHER, PLATE
-
1191401-20020-00 PIN, COTTERPIN, COTTER
-
1290105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1395602-10200-00 NUT, SL FLANGENUT, SL FLANGE
-
148KC-F3712-20-00 REINFORCEMENT, HEAD (VRC1 - VIVID RED)REINFORCEMENT, HEAD (VRC1 - VIVID RED)
-
148KC-F3712-10-00 REINFORCEMENT, HEAD (DPBSE - PURPLISH BLUE)REINFORCEMENT, HEAD (DPBSE - PURPLISH BLUE)
-
158KC-RA358-00-00 NUT, FLANGE LOCKING 3/8-16NUT, FLANGE LOCKING 3/8-16
-
168KC-F3778-00-00 NUTNUT
-
178KC-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
188KC-F3737-00-00 WASHER 1WASHER 1
-
198KC-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
208KC-F3732-00-00 RUNNER 2RUNNER 2
-
218KC-RA443-00-00 WASHER, 10.98X28.00X1.6WASHER, 10.98X28.00X1.6
-
228KR-F354A-20-00 ARM, FRONT UPPER (DPBSE - PURPLISH BLUE)ARM, FRONT UPPER (DPBSE - PURPLISH BLUE)
-
228KR-F354A-30-00 ARM, FRONT UPPER (VRC1 - VIVID RED)ARM, FRONT UPPER (VRC1 - VIVID RED)
-
238KU-F3778-00-00 ...NUT...NUT
-
248KU-F3841-00-00 ...JOINT, UNIVERSAL 1...JOINT, UNIVERSAL 1
-
258KU-F3767-00-00 BOLTBOLT
-
268KU-F3856-00-00 NUTNUT
-
278KG-RA190-00-00 BOLT, FLANGE M8X1.25X45BOLT, FLANGE M8X1.25X45
-
288KG-RA720-00-00 COLLAR, 8COLLAR, 8
-
298KG-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
308JP-F3867-00-00 HOLDER 2HOLDER 2
-
318JP-F386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
328JP-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
338JP-F386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
348JP-RA235-00-00 SCREW, 1SCREW, 1
-
358JP-RA273-00-00 SCREW, M8X1.25X35SCREW, M8X1.25X35
-
368JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
378JP-F386F-00-00 LINK, STABILIZER FRONTLINK, STABILIZER FRONT
-
388KR-F358A-10-00 ARM, FRONT LOWER RH. (VRC1 - VIVID RED)ARM, FRONT LOWER RH. (VRC1 - VIVID RED)
-
388KR-F358A-00-00 ARM, FRONT LOWER RH. (DPBSE - PURPLISH BLUE)ARM, FRONT LOWER RH. (DPBSE - PURPLISH BLUE)
-
398KR-F357A-00-00 ARM, FRONT LOWER LH. (DPBSE - PURPLISH BLUE)ARM, FRONT LOWER LH. (DPBSE - PURPLISH BLUE)
-
398KR-F357A-10-00 ARM, FRONT LOWER LH. (VRC1 - VIVID RED)ARM, FRONT LOWER LH. (VRC1 - VIVID RED)
-
408JP-RA807-00-00 ...BUSH, 10DU10...BUSH, 10DU10
-
418JP-RA811-00-00 ...BUSH, 1815DU...BUSH, 1815DU
-
428JP-RA361-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
438JP-F3543-00-00 ARM, 1ARM, 1
-
448JP-RA721-00-00 COLLAR, 9COLLAR, 9
-
458JP-RA1A7-00-00 BOLT, FLANGE M12X1.25X76BOLT, FLANGE M12X1.25X76
-
468JP-RA1A4-00-00 BOLT, FLANGE M10X1.25X75BOLT, FLANGE M10X1.25X75
-
478JP-RA719-00-00 COLLAR, 7COLLAR, 7
-
488JP-RA360-00-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
498JP-RA362-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
508JW-F3703-00-00 ADJUSTERADJUSTER
-
518KG-RA1B9-00-00 BOLT, FLANGE M8X50BOLT, FLANGE M8X50
-
528KG-RA817-00-00 BUSH, 8BUSH, 8
-
538KG-RA724-00-00 COLLAR, 12COLLAR, 12
-
548JP-RA360-10-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
558LH-F330E-00-00 DAMPER ASSYDAMPER ASSY
-
568JW-F151F-00-00 LABEL 3LABEL 3
