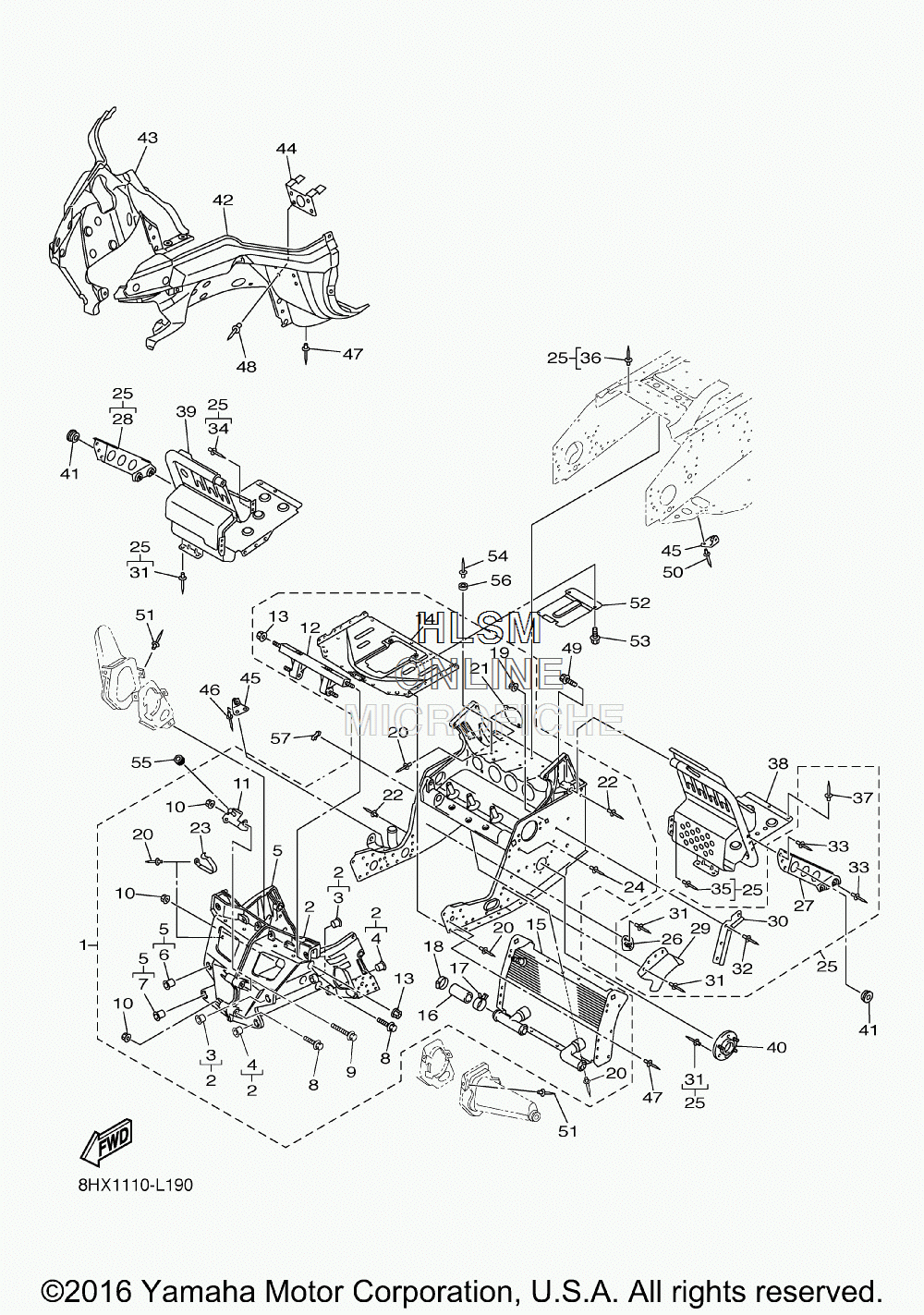

FRONT FRAME COMP. 1 для Yamaha RS VENTURE TF LE - 2017 года выпуска

№

Артикул

Название
1

8HX-21940-00-00 FRONT FRAME COMP.

FRONT FRAME COMP.

203 960 ₽
2

8FA-W2197-13-00 ...BULKHEAD

...BULKHEAD

47 560 ₽
3

90381-15001-00 ......BUSH, SOLID

......BUSH, SOLID

370 ₽
4

90381-16004-00 ......BUSH, SOLID

......BUSH, SOLID

510 ₽
5

8FA-W2198-15-00 ...BULKHEAD 2

...BULKHEAD 2

48 500 ₽
6

90381-15001-00 ......BUSH, SOLID

......BUSH, SOLID

370 ₽
7

90381-16004-00 ......BUSH, SOLID

......BUSH, SOLID

510 ₽
8

95827-08060-00 ...BOLT, FLANGE

...BOLT, FLANGE

400 ₽
9

95827-08065-00 ...BOLT, FLANGE

...BOLT, FLANGE

510 ₽
10

95607-08200-00 ...NUT, SELF-LOCKING

...NUT, SELF-LOCKING

0 ₽
11

8HG-2836E-00-00 ...BRACKET 2

...BRACKET 2

1 420 ₽
12

8FG-21947-00-00 ...BRACKET, STEERING 1

...BRACKET, STEERING 1

18 740 ₽
13

95607-10200-00 ...NUT, U FLANGE

...NUT, U FLANGE

350 ₽
14

8FR-2193A-01-00 ...PROTECTOR

...PROTECTOR

10 070 ₽
15

8HF-12440-00-00 ...HEAT EXCHANGER ASSY

...HEAT EXCHANGER ASSY

63 310 ₽
16

8FA-12551-00-00 ...HOSE 7

...HOSE 7

790 ₽
17

90467-28046-00 ...CLIP

...CLIP

720 ₽
18

90450-35001-00 ...HOSE CLAMP ASSY

...HOSE CLAMP ASSY

790 ₽
19

95607-08200-00 ...NUT, SELF-LOCKING

...NUT, SELF-LOCKING

0 ₽
20

90267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)

...RIVET, BLIND (4.7X16.4 YELLOW)

190 ₽
21

8ES-2131D-00-00 ...PLATE, COVER

...PLATE, COVER

650 ₽
22

90267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)

...RIVET, BLIND (4.8X17 YELLOW)

280 ₽
23

90462-08083-00 ...CLAMP

...CLAMP

1 480 ₽
24

90267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)

...RIVET, BLIND (4.8X14 YELLOW)

320 ₽
25

8HF-W2195-01-00 FRAME CONNECTION KIT

FRAME CONNECTION KIT

16 690 ₽
26

8CR-21939-01-00 ...BRACKET, CHAIN HOUSING

...BRACKET, CHAIN HOUSING

790 ₽
27

8FP-2196M-01-00 ...BRACKET, 5

...BRACKET, 5

3 300 ₽
28

8FP-2197M-01-00 ...BRACKET, 6

...BRACKET, 6

3 300 ₽
29

8FP-2198G-01-00 ...COVER 2

...COVER 2

1 880 ₽
30

8FA-21999-00-00 ...CLAMP, WIRE HARNESS

...CLAMP, WIRE HARNESS

650 ₽
31

90267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)

...RIVET, BLIND (4.7X16.4 YELLOW)

190 ₽
32

90267-48018-00 ...RIVET, BLIND (4.8X18.6 BLACK)

...RIVET, BLIND (4.8X18.6 BLACK)

190 ₽
33

90267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)

...RIVET, BLIND (4.8X14 YELLOW)

320 ₽
34

90267-47186-00 ...RIVET, BLIND (4.7X16.4 BLACK)

...RIVET, BLIND (4.7X16.4 BLACK)

340 ₽
35

90267-47197-00 ...RIVET, BLIND (4.7X19.5 SILVER)

...RIVET, BLIND (4.7X19.5 SILVER)

220 ₽
36

90267-48169-00 ...RIVET, BLIND (4.8X14.1 BLACK)

...RIVET, BLIND (4.8X14.1 BLACK)

340 ₽
37

90267-48023-00 ...RIVET, BLIND (4.8X12.1 YELLOW)

...RIVET, BLIND (4.8X12.1 YELLOW)

260 ₽
38

8HF-21960-00-00 FOOTREST COMP. 1

FOOTREST COMP. 1

25 190 ₽
39

8GM-21970-00-00 FOOTREST COMP. 2

FOOTREST COMP. 2

23 300 ₽
40

8EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)

HOUSING, REINF SUB-ASSY (L.H)

2 040 ₽
41

90480-13567-00 GROMMET

GROMMET

810 ₽
42

8GM-2196A-01-00 FRAME UNDER 1

FRAME UNDER 1

26 140 ₽
43

8FP-2196E-02-00 FRAME, UNDER 2

FRAME, UNDER 2

8 030 ₽
44

8FP-21972-00-00 BRACKET, GUARD FITTING

BRACKET, GUARD FITTING

3 300 ₽
45

8FA-2196F-00-00 BRACKET 3

BRACKET 3

480 ₽
46

90267-48083-00 RIVET, BLIND (4.8X15.2 SILVER)

RIVET, BLIND (4.8X15.2 SILVER)

290 ₽
47

90267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)

RIVET, BLIND (4.8X18.6 BLACK)

190 ₽
48

90267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)

RIVET, BLIND (4.7X16.4 BLACK)

190 ₽
49

95822-08020-00 BOLT, FLANGE

BOLT, FLANGE

380 ₽
50

90267-48095-00 RIVET, BLIND (4.8X12.6 SILVER)

RIVET, BLIND (4.8X12.6 SILVER)

320 ₽
51

90267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)

RIVET, BLIND (4.7X16.4 YELLOW)

190 ₽
52

8FR-2197E-00-00 PROTECTOR, FRAME FRONT

PROTECTOR, FRAME FRONT

4 250 ₽
53

92012-06012-00 BOLT, BUTTON HEAD

BOLT, BUTTON HEAD

190 ₽
54

90267-48059-00 RIVET, BLIND (4.8X12.3)

RIVET, BLIND (4.8X12.3)

310 ₽
55

90480-12053-00 GROMMET

GROMMET

310 ₽
56

8HG-24768-00-00 STOPPER

STOPPER

920 ₽
57

8FA-7717H-00-00 TAPE 4

TAPE 4

280 ₽
