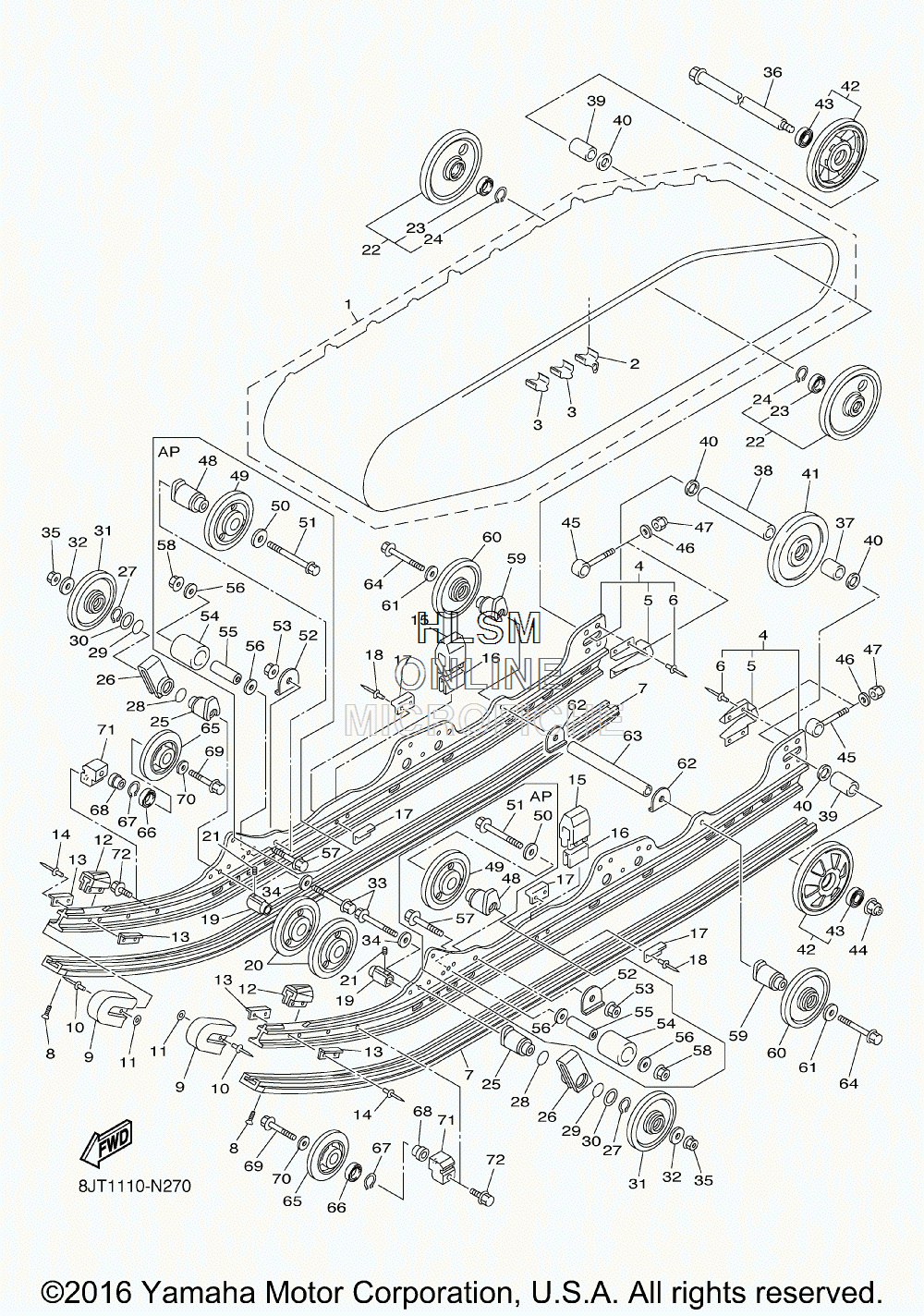

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha PHAZER XTX - 2017 года выпуска`
-
№АртикулНазвание
-
18JT-47110-00-00 TRACK ASSYTRACK ASSY
-
28HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
38HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
48GP-W4741-01-00 FRAME, SLIDINGFRAME, SLIDING
-
58DM-4741B-00-00 ...BRACKET...BRACKET
-
68V0-47468-00-00 ...RIVET...RIVET
-
78FK-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
890151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
98ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
1090267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
1190201-047R8-00 WASHER, PLATEWASHER, PLATE
-
128ES-47456-00-00 DAMPER 1DAMPER 1
-
138K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1490267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
158AC-47457-00-00 DAMPER 2DAMPER 2
-
168AC-47341-00-00 SPACERSPACER
-
178AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1890267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
198ES-47319-01-00 COLLARCOLLAR
-
208ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2190113-06039-00 BOLT, SETBOLT, SET
-
228GC-47530-10-00 GUIDE WHEEL COMP.GUIDE WHEEL COMP.
-
2393306-00616-00 ...BEARING...BEARING
-
2499009-55500-00 ...CIRCLIP...CIRCLIP
-
258ES-47419-10-00 BRACKET 7BRACKET 7
-
268ES-47446-00-00 HOOK 1HOOK 1
-
2799009-35400-00 CIRCLIPCIRCLIP
-
2893210-35537-00 O-RINGO-RING
-
2993210-34504-00 O-RINGO-RING
-
3090201-35013-00 WASHER, PLATEWASHER, PLATE
-
318ES-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3290201-101U2-00 WASHER, PLATEWASHER, PLATE
-
3395812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3490201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
368L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
3790387-20015-00 COLLARCOLLAR
-
3890387-20016-00 COLLARCOLLAR
-
3990387-20019-00 COLLARCOLLAR
-
4090201-205R6-00 WASHER, PLATEWASHER, PLATE
-
418CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
428HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
4393306-00444-00 ...BEARING...BEARING
-
4495602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
458DM-47479-00-00 COLLAR 3COLLAR 3
-
4692902-10600-00 WASHER, PLATEWASHER, PLATE
-
4795702-10300-00 NUT, NYLONNUT, NYLON
-
488ES-47419-00-00 BRACKET 7 (OPT)BRACKET 7 (OPT)
-
498ES-47310-10-00 SUSPENSION WHEEL ASSY (OPT)SUSPENSION WHEEL ASSY (OPT)
-
5090201-101U2-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
5195812-10080-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
5290214-10003-00 WASHER, CLAW (OPT)WASHER, CLAW (OPT)
-
5395602-10200-00 NUT, U FLANGE (OPT)NUT, U FLANGE (OPT)
-
548ES-47429-00-00 ROLLER (OPT)ROLLER (OPT)
-
5590387-10025-00 COLLAR (OPT)COLLAR (OPT)
-
5690201-10052-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
5795812-10060-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
5895602-10200-00 NUT, U FLANGE (OPT)NUT, U FLANGE (OPT)
-
598ES-47419-00-00 BRACKET 7BRACKET 7
-
608ES-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
6190201-101U2-00 WASHER, PLATEWASHER, PLATE
-
6290214-10003-00 WASHER, CLAWWASHER, CLAW
-
638FU-47485-00-00 SHAFT 3SHAFT 3
-
6495812-10090-00 BOLT, FLANGEBOLT, FLANGE
-
658AC-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
6693306-00444-00 BEARINGBEARING
-
6799009-42500-00 CIRCLIPCIRCLIP
-
688GP-47319-00-00 COLLARCOLLAR
-
6995812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
7090201-10052-00 WASHER, PLATEWASHER, PLATE
-
718GP-47419-00-00 BRACKET 7BRACKET 7
-
7290105-10237-00 BOLT, FLANGEBOLT, FLANGE
