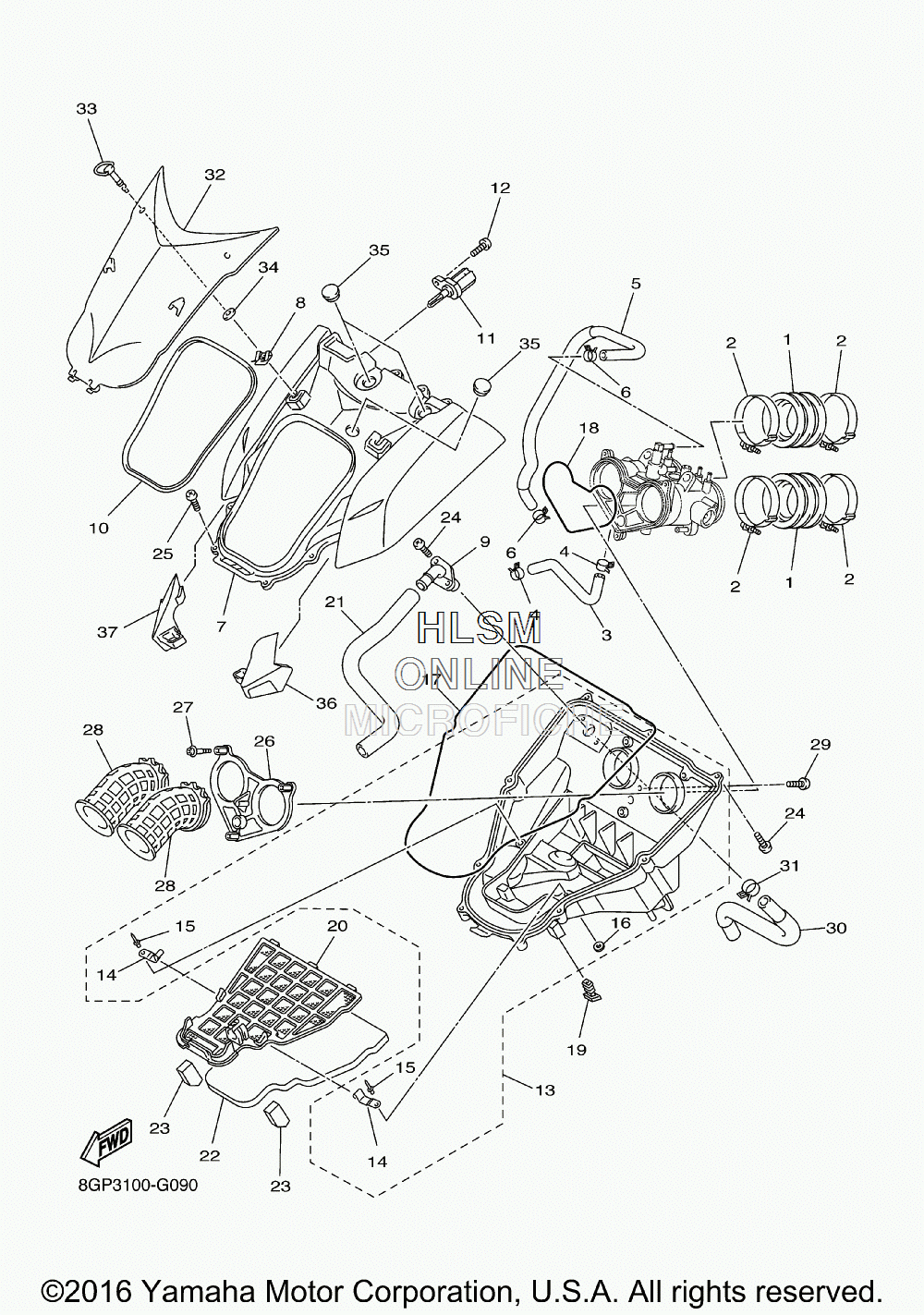

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha PHAZER RTX - 2017 года выпуска`
-
№АртикулНазвание
-
18GC-13595-10-00 JOINTJOINT
-
290450-60004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
38GC-1243A-00-00 HOSE 1HOSE 1
-
490467-110A2-00 CLIPCLIP
-
58GC-12578-00-00 HOSE 3HOSE 3
-
690467-110A2-00 CLIPCLIP
-
78GC-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
84XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
98GC-14485-00-00 PIPE, JOINTPIPE, JOINT
-
108GC-14457-00-00 SEALSEAL
-
118FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1297702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
138GC-W1444-10-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
148GC-14406-00-00 ...HINGE...HINGE
-
1590267-32013-00 ...RIVET, BLIND (3.2X13.5 BLACK)...RIVET, BLIND (3.2X13.5 BLACK)
-
1690201-03008-00 ...WASHER, PLATE...WASHER, PLATE
-
178GC-14452-00-00 SEALSEAL
-
188GC-14462-00-00 SEALSEAL
-
198GC-14435-00-00 GROMMETGROMMET
-
208GC-14472-10-00 PLATE, ELEMENTPLATE, ELEMENT
-
218GC-14419-00-00 PIPEPIPE
-
228GC-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
238GC-14425-00-00 DAMPER 1DAMPER 1
-
2497702-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
2597702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
268GC-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
2790109-05005-00 BOLTBOLT
-
288GC-14469-00-00 FUNNEL, AIRFUNNEL, AIR
-
2997702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
308GC-21745-00-00 PIPE, OIL TANK BREATHERPIPE, OIL TANK BREATHER
-
3190467-22097-00 CLIPCLIP
-
328GC-14417-00-00 COVER 1COVER 1
-
338HG-28386-00-00 HEADHEAD
-
348HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
358GC-14445-00-00 GROMMETGROMMET
-
368GC-78251-00-00 PAD, SILENCER 1PAD, SILENCER 1
-
378GC-78252-00-00 PAD, SILENCER 2PAD, SILENCER 2
