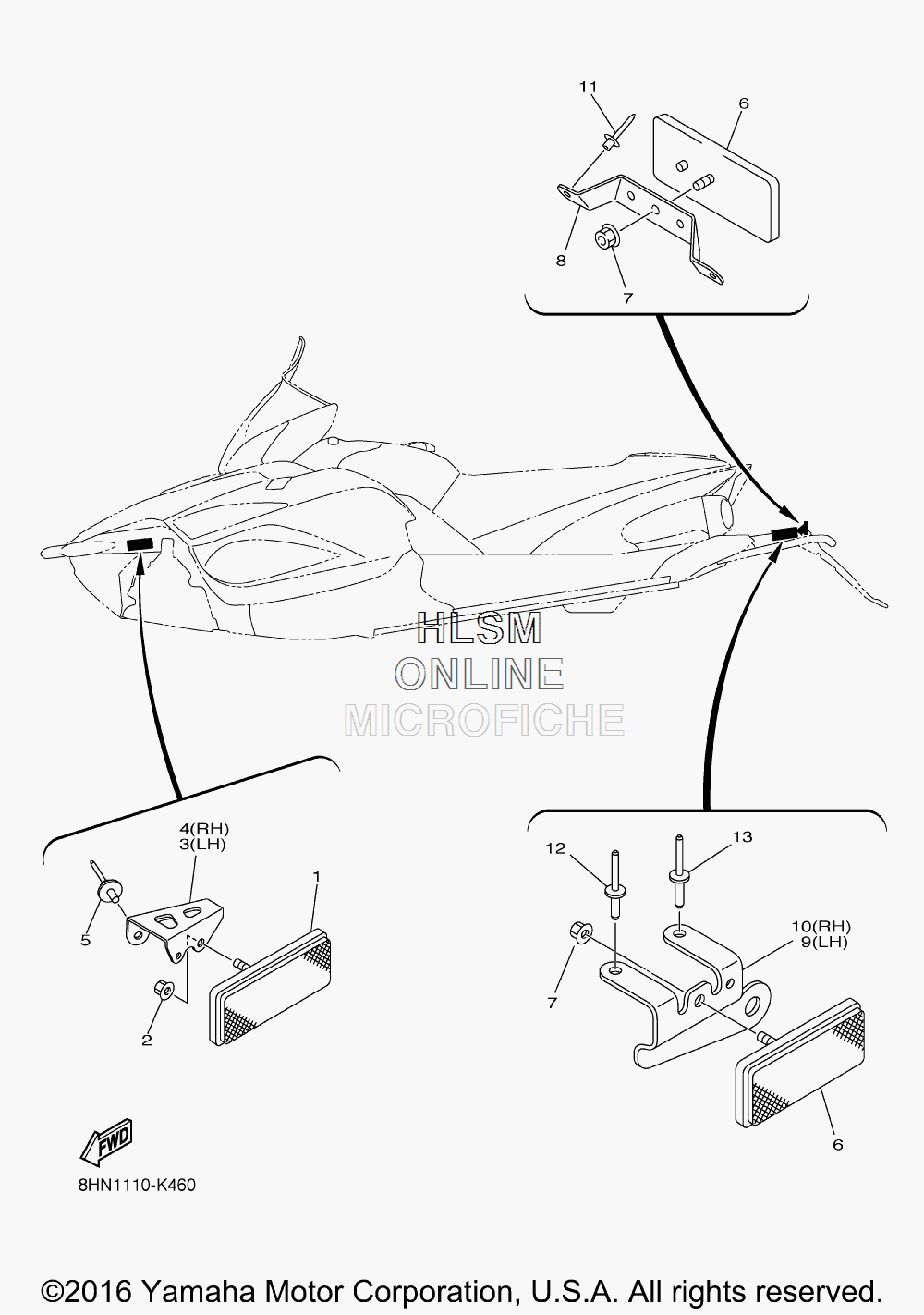

REFLECTOR ASSY для Yamaha APEX XTX 1.75 - 2017 года выпуска`
-
№АртикулНазвание
-
18GM-85110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
295702-05500-00 NUT, FLANGENUT, FLANGE
-
38FR-77421-00-00 BRACKET 1BRACKET 1
-
48FR-77422-00-00 BRACKET 2BRACKET 2
-
590267-48104-00 RIVET, BLIND (4.8X12.4 BLACK)RIVET, BLIND (4.8X12.4 BLACK)
-
63Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
795702-05500-00 NUT, FLANGENUT, FLANGE
-
88HG-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
98HN-85142-00-00 BRACKET 2BRACKET 2
-
108HN-85152-00-00 BRACKET 3BRACKET 3
-
1190267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
1290267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
1390267-48176-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
