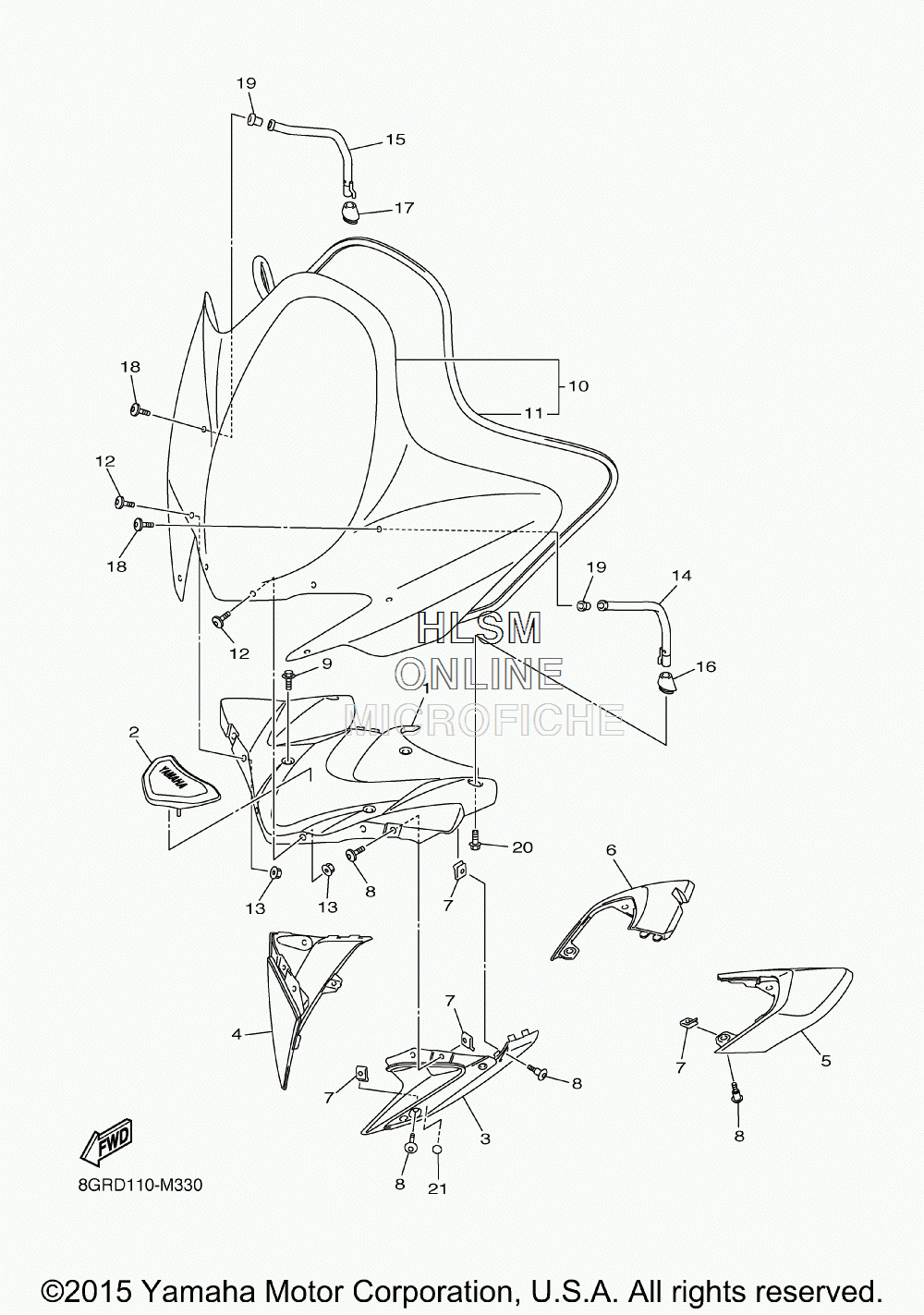

HOOD - WINDSHIELD ASSY для Yamaha VENTURE MULTI PURPOSE - 2016 года выпуска`
-
№АртикулНазвание
-
18GJ-77251-01-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
28GJ-77238-00-00 DAMPERDAMPER
-
38GJ-77185-00-00 PLATE 1PLATE 1
-
48GJ-77186-00-00 PLATE 2PLATE 2
-
58GJ-77712-00-P4 PANEL, INSTRUMENT (PBM7 - PURPLISH BLUE)PANEL, INSTRUMENT (PBM7 - PURPLISH BLUE)
-
68GJ-77713-00-P4 PANEL, INSTRUMENT (PBM7 - PURPLISH BLUE)PANEL, INSTRUMENT (PBM7 - PURPLISH BLUE)
-
790183-06069-00 NUT, SPRINGNUT, SPRING
-
890149-06263-00 SCREWSCREW
-
990109-06220-00 BOLTBOLT
-
108GJ-K7210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
118GJ-K7213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
1290149-05299-00 SCREWSCREW
-
1390179-05523-00 NUTNUT
-
148GJ-77119-00-00 ROD 1ROD 1
-
158GJ-77129-00-00 ROD 2ROD 2
-
168GJ-77139-00-00 HOLDER, ROD 1HOLDER, ROD 1
-
178GJ-77149-00-00 HOLDER, ROD 2HOLDER, ROD 2
-
1890149-05299-00 SCREWSCREW
-
1990179-05003-00 NUTNUT
-
2095812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2180F-21998-00-00 SPACERSPACER
